Запчасти Case IH 8860 (10-60) - FUEL INJECTION SYSTEM (USE WITH PUMP J935669) (4-390 EMISSIONS CERTIFIED ENGINE) (10) - ENGINE

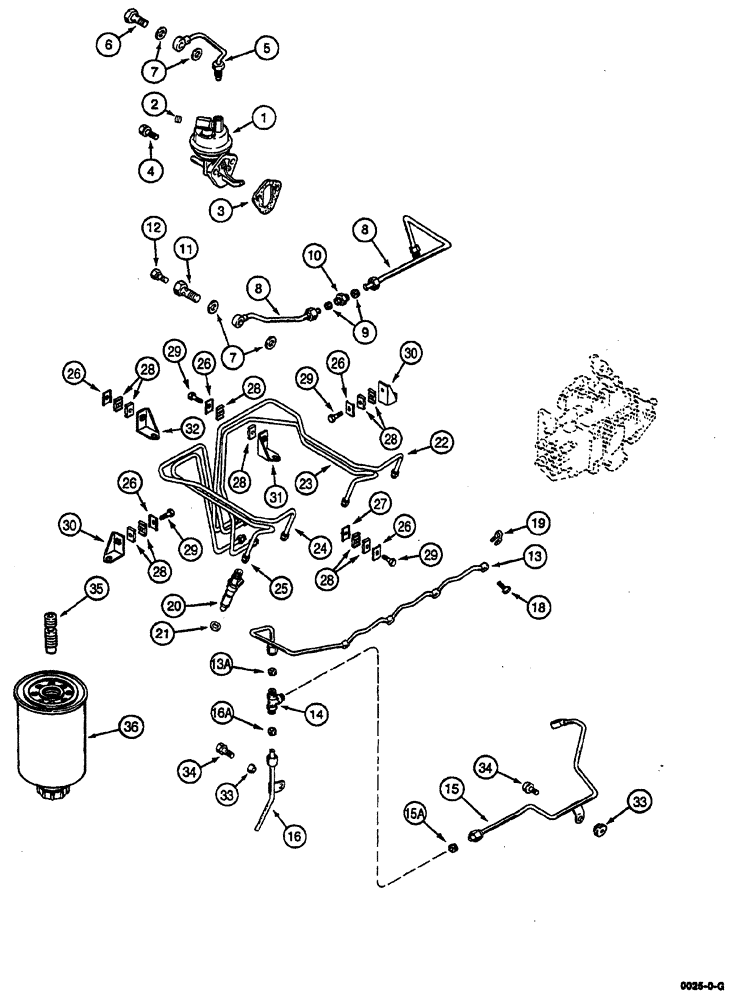

Схема запчастей Case IH 8860 - (10-60) - FUEL INJECTION SYSTEM (USE WITH PUMP J935669) (4-390 EMISSIONS CERTIFIED ENGINE) (10) - ENGINE
15a
34
6
35
26
11
28
12
18
21
24
31
2
28
13
28
4
29
8
32
1
8
16
14
29
33
34
10
19
5
30
7
26
28
25
30
7
9
20
29
15
23
26
28
26
3
28
13a
16a
33
29
27
36
22
26

Артикул

Название

Примечание

Количество

1

J928143

PUMP

lift, fuel

1шт.

2

221-841

PLUG

hex socket, 1/4" PT

1шт.

3

J931059

GASKET

mounting, fuel transfer pump

1шт.

4

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

2шт.

5

J905649

FUEL TUBE,8 mm OD x 233.5 mm L

ASSY. fuel supply

1шт.

6

J903035

BANJO BOLT

hex, 12-1.5 x 24 mm

1шт.

7

J935171

SEALING WASHER

special, 12 x 19 x 1.5 mm, Replaces: J918191

4шт.

8

J918640

FUEL TUBE

TUBE fuel supply, two-piece, Includes Ref: 9, 10

1шт.

9

222-103

SLEEVE,5/16" Tube

2шт.

10

222-4

FITTING,9/16"-24, Flex Tube

ADAPTER compression, 5/16" tube OD

11шт.

J905860

BANJO BOLT

BOLT ASSY. banjo hex, special, Includes Ref: 11, 12

1шт.

11

NSS

NOT SOLD SEPARAT

BOLT banjo connector, 12-1.50 x 24 mm

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW hex, special, vent

1шт.

13

J909695

FUEL TUBE

TUBE manifold, fuel drain, Includes Ref: 13A

1шт.

13a

222-101

SLEEVE,3/16" Tube

1шт.

14

222-121

TEE,3/16", Flex Tubing

1шт.

15

J905699

FUEL TUBE,4.76 mm OD

fuel return, Includes Ref: 15A

1шт.

15a

222-101

SLEEVE,3/16" Tube

1шт.

16

J905692

FUEL TUBE

fuel return, Includes Ref: 16A

1шт.

16a

222-101

SLEEVE,3/16" Tube

1шт.

18

J905307

BANJO BOLT,M6 x 1 x 14.30mm

Drain, Special

4шт.

19

J903380

SEAL

connector

4шт.

20

J930573

INJECTOR ASSY.

NOZZLE fuel

4шт.

21

J906659

SEAL

injector nozzle, 7 mm injector tip

4шт.

22

J935691

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

fuel injector, No. 1 cylinder

1шт.

23

J935693

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

fuel injector, No. 2 cylinder

1шт.

24

J935696

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

fuel injector, No. 3 cylinder

1шт.

25

J935698

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

fuel injector, No. 4 cylinder

1шт.

26

J904711

SUPPORT

BRACKET fuel tube

8шт.

27

J907546

BRACE

tube

4шт.

28

J917746

CLAMP

fuel tube

16шт.

29

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

8шт.

30

J935746

BRACE

fuel tube

2шт.

31

J935748

BRACE

fuel tube

1шт.

32

J935700

BRACE

fuel tube

1шт.

33

J928759

SEALING WASHER

cover bolt

4шт.

34

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

4шт.

35

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

fuel filter

1шт.

36

J931062

FILTER

fuel

1шт.

Выбрано товаров: 39
