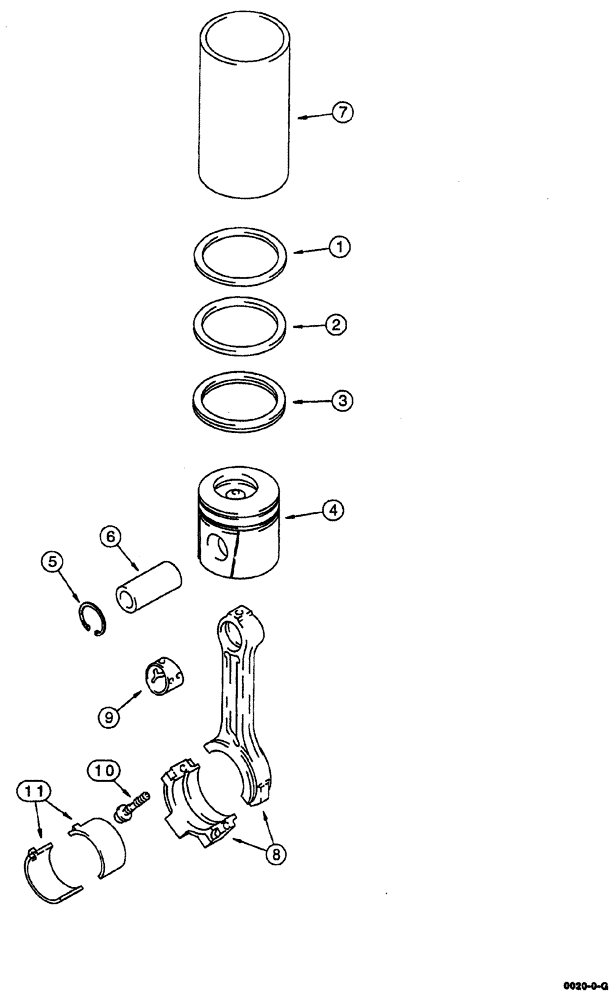

Запчасти Case IH 8860 (10-44) - PISTONS AND CONNECTING RODS (4-390 EMISSIONS CERTIFIED ENGINE) (10) - ENGINE
№
Артикул
Название
Примечание
Количество
J804980
PISTON & RINGS KIT
standard, Includes Ref: 1-5
4шт.
J804930
PISTON RING SET
standard, Includes Ref: 1-3
1шт.
1
NSS
NOT SOLD SEPARAT
hex, special, 12-1.25 x 32 mm
1шт.
2
NSS
NOT SOLD SEPARAT
RING compression, middle
1шт.
3
NSS
NOT SOLD SEPARAT
RING oil, bottom
1шт.
4
NSS
NOT SOLD SEPARAT
PISTON cylinder, standard
1шт.
5
J901706
RING
snap
2шт.
6
J919053
PISTON PIN
1шт.
J800345
PISTON & RINGS KIT
piston, standard, Includes Ref: 1-5
4шт.
J804930
PISTON RING SET
standard, Includes Ref: 1-3
1шт.
1
NSS
NOT SOLD SEPARAT
RING compression, top
1шт.
2
NSS
NOT SOLD SEPARAT
RING compression, middle
1шт.
3
NSS
NOT SOLD SEPARAT
RING oil, bottom
1шт.
4
NSS
NOT SOLD SEPARAT
PISTON cylinder, standard
1шт.
5
J901706
RING
snap
2шт.
6
J919053
PISTON PIN
1шт.
J800349
PISTON & RINGS KIT
standard, Includes Ref: 1-5
4шт.
J804930
PISTON RING SET
standard, Includes: Ref: 1-3
1шт.
1
NSS
NOT SOLD SEPARAT
RING compression, top
1шт.
2
NSS
NOT SOLD SEPARAT
RING compression, middle
1шт.
3
NSS
NOT SOLD SEPARAT
RING oil, bottom
1шт.
4
NSS
NOT SOLD SEPARAT
PISTON cylinder, standard
1шт.
5
J901706
RING
snap
2шт.
6
J919053
PISTON PIN
1шт.
J804981
PISTON & RINGS KIT
oversize, 0.5 mm, Includes Ref: 1-5
4шт.
J804931
PISTON RING SET
oversize, 0.5 mm, Includes Ref: 1-3
1шт.
1
NSS
NOT SOLD SEPARAT
RING compression, top
1шт.
2
NSS
NOT SOLD SEPARAT
RING compression, middle
1шт.
3
NSS
NOT SOLD SEPARAT
RING oil, bottom
1шт.
4
NSS
NOT SOLD SEPARAT
PISTON cylinder, oversize, 0.5 mm
1шт.
5
J901706
RING
snap
2шт.
6
J919053
PISTON PIN
1шт.
J804982
PISTON & RINGS KIT
oversize, 1.0 mm, Includes Ref: 1-5
4шт.
J804932
PISTON RING SET
KIT oversize, 1.0 mm, Includes Ref: 1-3
1шт.
1
NSS
NOT SOLD SEPARAT
RING compression, top
1шт.
2
NSS
NOT SOLD SEPARAT
RING compression, middle
1шт.
3
NSS
NOT SOLD SEPARAT
RING oil, bottom
1шт.
4
NSS
NOT SOLD SEPARAT
PISTON cylinder, oversize, 1.0 mm
1шт.
5
J901706
RING
snap
2шт.
6
J919053
PISTON PIN
1шт.
7
J904166
SLEEVE
LINER piston, used only in engine block repair, when liner is installed, use J804980, J800345 or J900349 standard piston kit
1шт.
J942581
ROD, CONNECTING
ASSY., new, Includes: both halves, Includes Ref: 8, 9, 10
4шт.
JR942581
REMAN-CONNECTING ROD
Assy., component parts shown on this page do not apply to the remanufactured assembly, Includes Ref: 8, 9, 10
4шт.
JC901569
CORE-ROD CONNECTING
Core-Connecting Rod Return Number use this part number to return connecting rod for credit when using a remanufactured assembly, Includes Ref: 8, 9, 10
4шт.
84145405R
REMAN-CONNECTING ROD
8860, 8860HP, Reman For New PN J942581
4шт.
84145405C
CORE-ROD CONNECTING
Return Number
4шт.
8
NSS
NOT SOLD SEPARAT
ROD connecting
1шт.
9
J941476
BUSHING
Connecting rod
1шт.
10
J900919
BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9
BOLT hex, special
2шт.
11
A77466
BEARING SET
KIT oversize, upper and lower set, 0.25 mm
4шт.
11
A77467
BEARING LINER
KIT oversize, upper and lower set, 0.50 mm
4шт.
11
A77468
BEARING SET
KIT oversize, upper and lower set, 0.75 mm
4шт.
11
A77469
BEARING SET
KIT oversize, upper and lower set, 1.00 mm
4шт.
Выбрано товаров: 54
