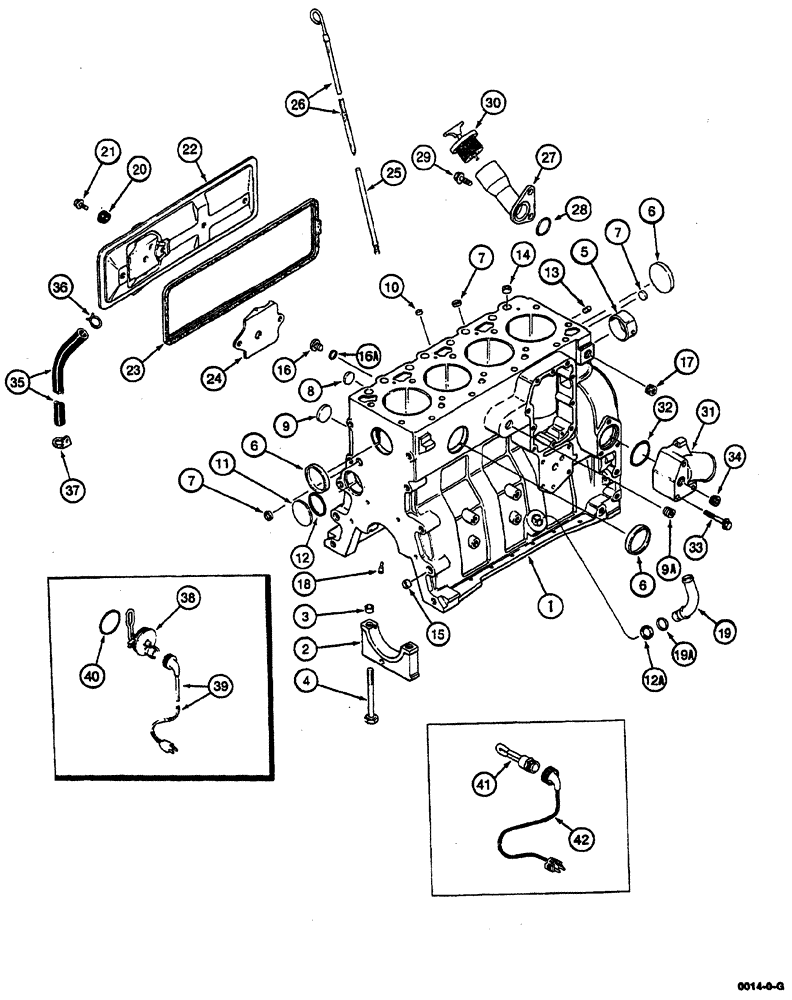

Запчасти Case IH 8860 (10-32) - CYLINDER BLOCK (4-390 EMISSIONS CERTIFIED ENGINE) (10) - ENGINE

357417A1

ENGINE ASSY. 4-390 emissions certified, complete, for service order 377987A1 basic engine below, Includes Ref: 1-8

1шт.

The engine part number is stamped on a metal tag which is mounted on the front gear cover.

1шт.

377987A1

BASIC ENGINE,4 Cylinders

Incl. all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front pulley and belt tensioner, Incl. Ref: 1-8; See Note

1шт.

377987A1R

REMAN-BASIC ENGINE,4 Cylinders

ASSY. basic, remanufactured, component parts shown on this page do not apply to the remanufactured assembly, Includes Ref: 1-8; See Note

1шт.

377987A1C

CORE-BASIC ENGINE,4 Cylinders

Return Number

1шт.

J933649

SHORT ENGINE

short, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, Includes Ref: 1-8

1шт.

J933649R

SHORT ENGINE

BLOCK ASSY. short, remanufactured, component parts shown on this page do not apply to the remanufactured assembly, Includes Ref: 1-8

1шт.

J933649C

CORE-SHORT ENGINE

Return Number

1шт.

1

87444172

BLOCK ASSY.

stripped, engine, order J933220 block hardware kit shown below also, Includes Ref: 2-8

1шт.

2

J903492

BEARING CAP

CAP main

5шт.

3

J900068

BEARING WASHER

RING dowel, 18 mm OD, main bearing, Serial Range: cap-block

10шт.

4

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

Main bearing cap, Special

10шт.

5

REF

INSTRUCTION

BUSHING camshaft front, see Figure 10-30 Ref. 2

1шт.

6

A77782

PLUG

expansion, 58 mm OD

3шт.

7

J900956

PLUG

expansion, 18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

Expansion

2шт.

J933220

PACKAGE,SERVICE

block hardware, Includes: Ref. 9 thru 18

1шт.

9

J900958

PLUG

expansion, 32 mm OD

1шт.

9a

A77505

PLUG

hex socket, 3/4" PT

1шт.

10

J900955

PLUG

expansion, 10 mm OD

3шт.

11

172599

PLUG,Exp, 2 3/8"

expansion, Welch, 60 mm OD

1шт.

12

J926047

O-RING,0.07" Thk x 2.239" ID

O-RING sealing, 57 mm ID

1шт.

12a

J920706

PLUG

expansion, 22 mm OD

3шт.

13

J900257

PIN,10.01mm OD x 16mm L

dowel, locating, 16 mm long

2шт.

14

J902343

DOWEL

RING dowel, 16 mm OD

2шт.

15

J900068

BEARING WASHER

RING dowel, 18 mm OD

2шт.

16

233426A1

PLUG,M10 x 1 ORB

hex, 10 mm, Replaces: J678923

3шт.

16a

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

plug, 8.1 ID x 1.6 mm wide, Replaces: 637-72081

1шт.

17

A77429

PLUG

hex socket, 1/2" PT

1шт.

17a

J678921

PLUG

hex socket, 14 mm, not shown

1шт.

Ref. 17A thru 17E are not used in this application.

1шт.

17b

J678912

O-RING,2.2mm Thk x 11.3mm ID

Sealing, Not shown

1шт.

Ref. 17A thru 17E are not used in this application.

1шт.

17c

J932296

PLUG

timing sensor hole, not shown

1шт.

Ref. 17A thru 17E are not used in this application.

1шт.

17d

J330478

O-RING,0.07" Thk x 0.676" ID

sealing, not shown

1шт.

Ref. 17A thru 17E are not used in this application.

1шт.

17e

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

Not shown

1шт.

Ref. 17A thru 17E are not used in this application.

1шт.

18

J937214

NOZZLE CAP

piston cooling, Replaces: J930139

4шт.

19

J931973

TUBE,0.875" OD

turbocharger oil drain, not used in this application, Ref. 12A plug is installed in this port

1шт.

19a

J931824

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

sealing, 18 mm ID, not used in this application

1шт.

20

J900267

SEAL

cover bolt

2шт.

21

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

22

J925680

COVER

tappet

1шт.

23

J283767

GASKET,7.4mm Thk

tappet cover

1шт.

24

J907586

BAFFLE

tappet cover

1шт.

25

A77645

TUBE

oil dipstick, at block

1шт.

26

J904294

DIPSTICK

oil level gauge

1шт.

27

J934190

TUBE

oil fill

1шт.

28

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

38 mm (1-1/2") ID

1шт.

29

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

Heavy

2шт.

30

A77424

FILLER CAP

CAP oil fill tube

1шт.

31

J934877

HYD CONNECTOR

water inlet

1шт.

32

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

sealing, 50 mm ID

1шт.

33

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

Heavy

3шт.

34

A77429

PLUG

hex socket, 1/2" PT

2шт.

35

J918612

TUBE,360.00 mm

Breather

1шт.

36

J904230

CLAMP,25.4mm

spring, hose

1шт.

37

J928989

CLIP

retaining, not used in this application

1шт.

196803A1

KIT

engine block heater, Includes Ref: 38-42

1шт.

38

NSS

NOT SOLD SEPARAT

ELEMENT engine heater, 120 volt, 750 watt

1шт.

39

196466A1

ELECTRIC CABLE

engine block heater

1шт.

40

J910517

O-RING

heater sealing

1шт.

309651A1

KIT

engine block heater

1шт.

41

NSS

NOT SOLD SEPARAT

ELEMENT engine heater, 120 volt, 750 watt

1шт.

42

196466A1

ELECTRIC CABLE

engine block heater

1шт.

A77893

PACKAGE, REPAIR

engine overhaul, no longer used, Includes: Ref. 43 thru 50, not shown

1шт.

43

J804980

PISTON & RINGS KIT

standard, see Figure 10-44

4шт.

Part of Engine Overhaul Kit P/N A77893

1шт.

44

J919053

PISTON PIN

See Figure 10-44

4шт.

Part of Engine Overhaul Kit P/N A77893

1шт.

45

A77894

BEARING SET,69mm ID x 73.53mm OD x 31mm W

KIT standard, upper and lower set, see Figure 10-46

4шт.

Part of Engine Overhaul Kit P/N A77893

1шт.

46

J804940

BEARING SET

main, standard, upper and lower set, see Figure 10-40

4шт.

Part of Engine Overhaul Kit P/N A77893

1шт.

47

A77895

THRUST BEARING,KIT

main thrust, standard, upper and lower set, see Figure 10-40

1шт.

Part of Engine Overhaul Kit P/N A77893

1шт.

48

A77914

SEAL PACKAGE

valve grind, order A77975 on page 10-49

1шт.

Part of Engine Overhaul Kit P/N A77893

1шт.

49

J283333

CYLINDER HEAD GASKET,2.32mm Thk

head, standard, see Figure 10-24

1шт.

Part of Engine Overhaul Kit P/N A77893

1шт.

50

A77673

GASKET KIT

oil pan, see Figure 10-22

1шт.

Part of Engine Overhaul Kit P/N A77893

1шт.
