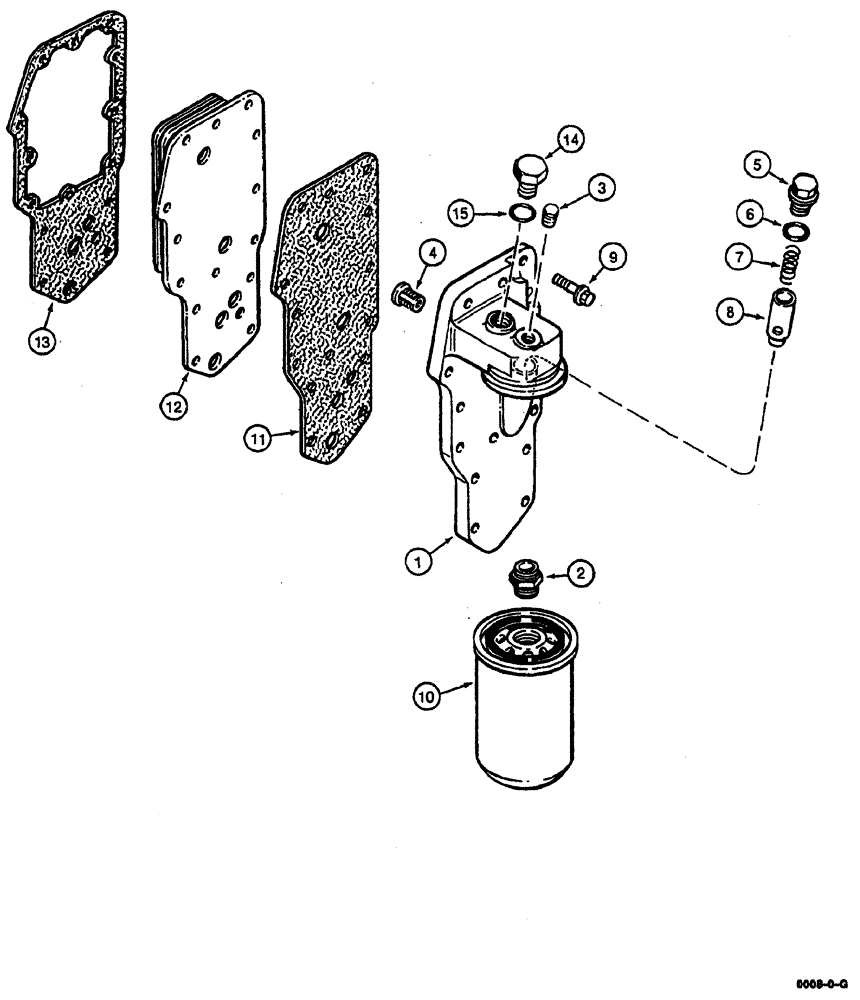

Запчасти Case IH 8860 (10-20) - OIL FILTER AND COOLER (4-390 AND 4T-390 EMISSIONS CERTIFIED ENGINE) (10) - ENGINE

J918954

HEAD

ASSY. oil filter and cooler, Includes Ref. 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD lube oil filter

1шт.

2

J909355

ADAPTER

filter head

1шт.

3

J906619

PLUG,1/8" - 27

hex, 1/8" PT

1шт.

4

J936365

VALVE PRESSURE RELIE

Replaces: J933615

1шт.

5

J915787

PLUG

threaded, pipe

1шт.

6

J929457

O-RING

plug

1шт.

7

J918427

SPRING

compression, 54 mm free length

1шт.

8

J918428

PLUNGER

regulator, pressure

1шт.

9

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

14шт.

10

J908616

ENGINE OIL FILTER,Single pkg qty. For multi pkg [qty.12] order J908616MP

engine oil, cartridge, if used

1шт.

10

J934429

ENGINE OIL FILTER

engine oil, cartridge, premium oil filter, if used

1шт.

11

J929792

GASKET,1.2mm Thk

filter head

1шт.

12

J921557

COOLER

CORE oil

1шт.

13

J942914

GASKET

oil cooler core

1шт.

14

J919686

PLUG

ASSY., hex, 12 mm threaded, used on engines without a turbocharger oil supply

1шт.

15

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.
