Запчасти Case IH 8860 (10-16) - TURBOCHARGER ASSEMBLY (4T-390 EMISSIONS CERTIFIED ENGINE) (10) - ENGINE

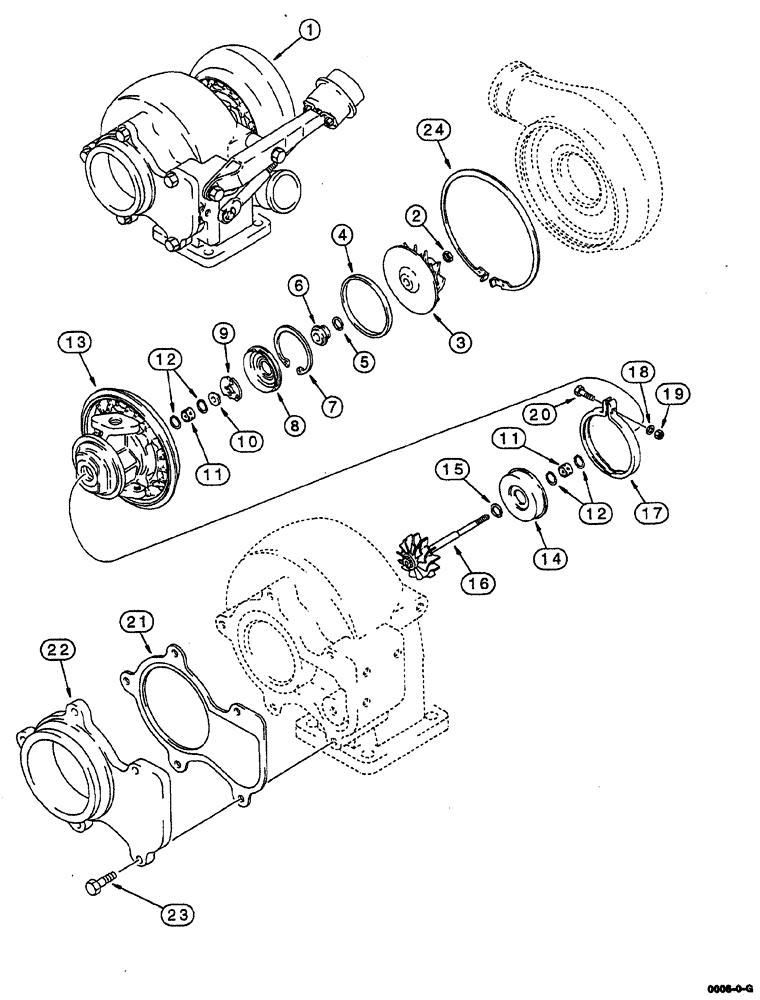

Схема запчастей Case IH 8860 - (10-16) - TURBOCHARGER ASSEMBLY (4T-390 EMISSIONS CERTIFIED ENGINE) (10) - ENGINE
8
24
11
4
19
12
20
17
21
13
12
16
1
3
10
23
6
18
14
9
22
7
11
2
15
5

Артикул

Название

Примечание

Количество

J802798

TURBOCHARGER

KIT large frame, includes new turbocharger assembly, (1) J519807 turbo oil drain tube gasket and (1) J709861 turbocharger mounting gasket, not shown, Includes Ref. 1 - 24

1шт.

JR802798

REMAN-TURBOCHARGER

KIT engine, Component parts shown on this figure do not apply to the remanufactured assembly, Includes Ref. 1 - 24

1шт.

JC537562

CORE-TURBOCHARGER

Return Part Number

1шт.

JC592015

TURBOCHARGER

RETURN NUMBER use this part number to return turbocharger core for credit when using a remanufactured assembly, Replaces: JC537562, Includes Ref. 1 - 24

1шт.

See Ref. 1 thru 11 on Figure 10-18.

1шт.

1

J580919

HOUSING

ASSY. center, turbocharger, Replaces: J580234, Includes Ref. 2 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

NUT hex, lock

1шт.

Part of Turbocharger Overhaul Kit P/N J575205

1шт.

3

NSS

NOT SOLD SEPARAT

IMPELLER turbocharger

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL plate

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL slit ring

1шт.

Part of Turbocharger Overhaul Kit P/N J575205

1шт.

6

NSS

NOT SOLD SEPARAT

SLINGER oil

1шт.

7

NSS

NOT SOLD SEPARAT

RING snap

1шт.

Part of Turbocharger Overhaul Kit P/N J575205

1шт.

8

NSS

NOT SOLD SEPARAT

BAFFLE oil

1шт.

Part of Turbocharger Overhaul Kit P/N J575205

1шт.

9

NSS

NOT SOLD SEPARAT

BEARING turbocharger thrust

1шт.

Part of Turbocharger Overhaul Kit P/N J575205

1шт.

10

NSS

NOT SOLD SEPARAT

COLLAR thrust

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING turbocharger

2шт.

Part of Turbocharger Overhaul Kit P/N J575205

1шт.

12

NSS

NOT SOLD SEPARAT

RING retaining

4шт.

Part of Turbocharger Overhaul Kit P/N J575205

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING turbo bearing

1шт.

14

NSS

NOT SOLD SEPARAT

SHIELD turbo heat

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL split ring

1шт.

Part of Turbocharger Overhaul Kit P/N J575205

1шт.

15a

NSS

NOT SOLD SEPARAT

SEAL oil, not shown

1шт.

Part of Turbocharger Overhaul Kit P/N J575205

1шт.

16

NSS

NOT SOLD SEPARAT

ROTOR ASSY., with shaft

1шт.

17

J590606

CLAMP BRACKET,103mm

adjustable, Replaces: J531670

1шт.

18

J535971

WASHER

flat, special

1шт.

19

J531582

NUT

hex

1шт.

Part of Turbocharger Overhaul Kit P/N J575205

1шт.

20

J590296

BOLT

hex, Replaces: J531598

1шт.

Part of Turbocharger Overhaul Kit P/N J575205

1шт.

21

J535001

GASKET,0.25mm Thk

adapter

1шт.

22

J527759

ADAPTER

connection

1шт.

23

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

5шт.

24

J535800

RING, SNAP

RING SNAP

1шт.

J575205

PACKAGE, REPAIR

KIT overhaul, turbocharger

1шт.
