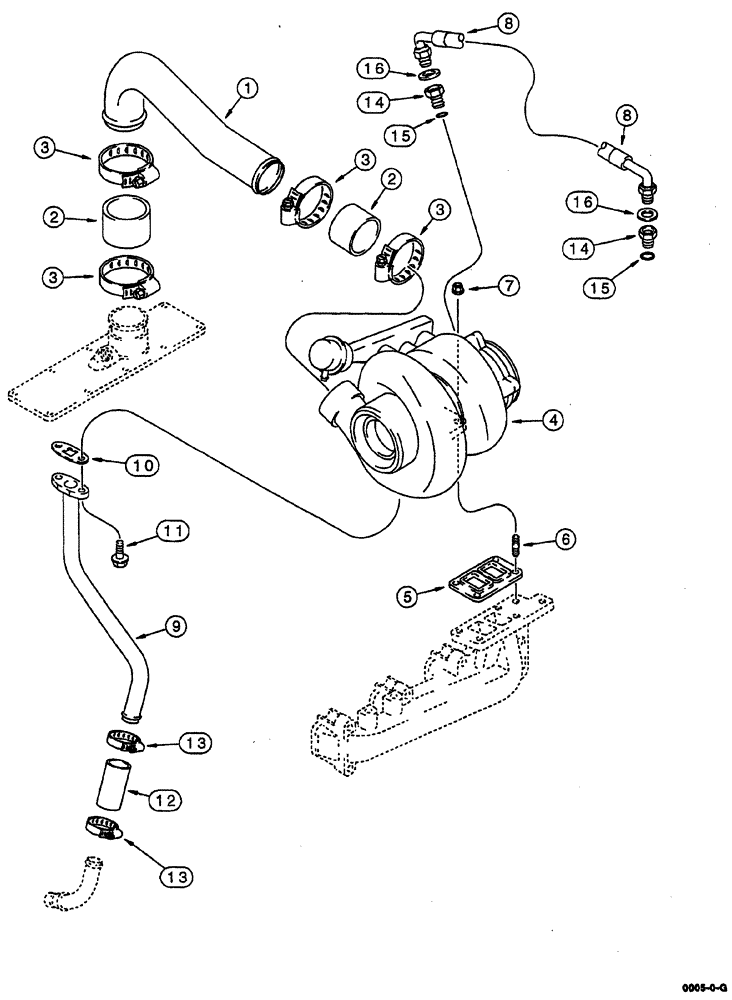

Запчасти Case IH 8860 (10-14) - TURBOCHARGER SYSTEM (4T-390 EMISSIONS CERTIFIED ENGINE) (10) - ENGINE

1

J931811

TUBE,50.8 mm OD x 291.87 mm L

crossover

1шт.

2

J916166

INTAKE AIR HOSE

air intake, 71 mm (2-3/4") long

2шт.

3

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

4шт.

4

REF

INSTRUCTION

TURBOCHARGER ASSY. engine, new, see page 2-13 for correct assembly and component parts

1шт.

5

J919369

GASKET,0.5mm Thk

, Serial Range: turbocharger-manifold

1шт.

6

J818823

STUD

turbocharger mounting

1шт.

7

J818824

FLANGE NUT

hex flange, special, stud, 10 mm - 1.5

4шт.

8

J913759

HOSE

Turbocharger Oil Supply

1шт.

9

J934064

TUBE,22.22 mm OD x 393, 131 mm L

turbocharger oil drain, Replaces: J903740

1шт.

10

J285747

GASKET

oil drain, Replaces: J931350

1шт.

11

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

12

J931970

HOSE,22.22 mm ID x 76.20 mm

Turbocharger Oil Drain

1шт.

13

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

Adj.

2шт.

14

J919687

HYD CONNECTOR

ADAPTER female hex, special (1) used to connect turbocharger oil supply hose to turbocharger, (1) used to connect turbocharger oil supply hose to J918954 oil filter head

2шт.

15

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

16

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.
