(10-08) - FRONT GEAR COVER (4-390 AND 4T-390 EMISSIONS CERTIFIED ENGINE)

Запчасти Case IH 8860 (10-08) - FRONT GEAR COVER (4-390 AND 4T-390 EMISSIONS CERTIFIED ENGINE) (10) - ENGINE

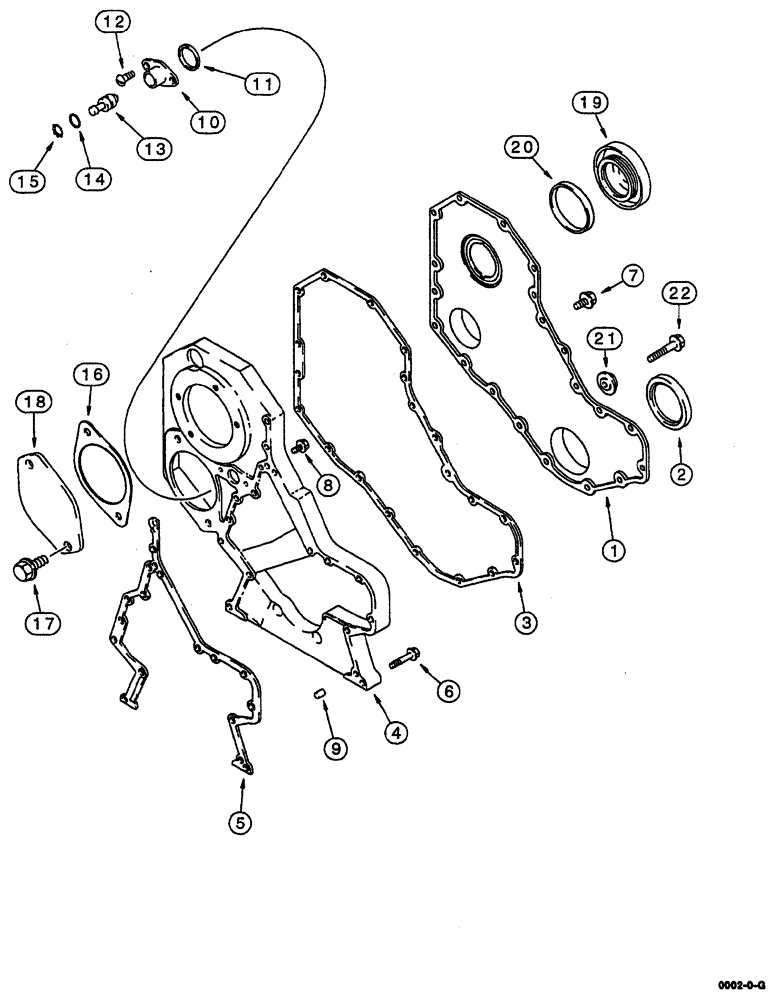

Схема запчастей Case IH 8860 - (10-08) - FRONT GEAR COVER (4-390 AND 4T-390 EMISSIONS CERTIFIED ENGINE) (10) - ENGINE
6
16
19
9
15
18
12
11
2
7
20
8
3
10
21
1
22
17
5
4
13
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J918675

COVER

gear, front, 4T-390 engine, for engines built prior to October 18, 1999, no longer available, order J935581 and J823494 sealant, see below

1шт.

1

J935581

COVER

gear, front, use with J823494 sealant, 4T-390 engine

1шт.

1

J903794

COVER

gear, front, 4-390 engine

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL oil, crankcase front, order A77889 seal kit on page 2-37

1шт.

3

J918673

GASKET,1.02mm Thk

front cover, 4T-390 engine, for engines built prior to October 18, 1999

1шт.

3

J914385

GASKET,1.02mm Thk

front cover, 4-390 engine

1шт.

4

J920758

HOUSING

timing gear, 4-390 engine

1шт.

4

J936257

HOUSING

timing gear, 4T-390 engine

1шт.

5

J931351

GASKET

gear housing

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

10шт.

7

J924962

FLANGE BOLT

hex flange, special, 8-1.25 x 16 mm, 4-390 engine

11шт.

7

J924962

FLANGE BOLT

hex flange, special, 8-1.25 x 16 mm, external, retains Ref. 1 to Ref. 4, 4T-390 engine

8шт.

8

J924962

FLANGE BOLT

hex flange, special, 8-1.25 x 16 mm, internal, retains Ref. 4 to block, 4T-390 engine

5шт.

8

J926846

FLANGE BOLT

hex flange, 8-1.25 x 20 mm, class 109, 4-390 engine

5шт.

9

J900257

PIN,10.01mm OD x 16mm L

dowel, 16 mm long, locating

2шт.

10

J919683

HOUSING

timing pin

1шт.

11

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING Quad, timing pin housing

1шт.

12

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

13

J903924

PIN,18.87mm OD x 55mm L

timing

1шт.

14

J913994

O-RING

sealing

1шт.

15

J904849

SNAP RING,0.875", Int, #87

Timing pin

1шт.

16

J929751

GASKET

access cover plate

1шт.

17

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

Heavy

2шт.

18

J914868

COVER

PLATE access, flat

1шт.

19

J903463

PLUG,M63 x 5

front access, fuel pump drive gear

1шт.

20

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

front access cover, fuel pump drive gear

1шт.

21

J912772

RETAINER

bolt

1шт.

22

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

Heavy

1шт.

J823494

SEALANT

Three Bond Silver RTV Adhesive/Sealer, 3 ounce tube, use between front cover and gear housing on J935581 cover, 4T-390 engine

1шт.
