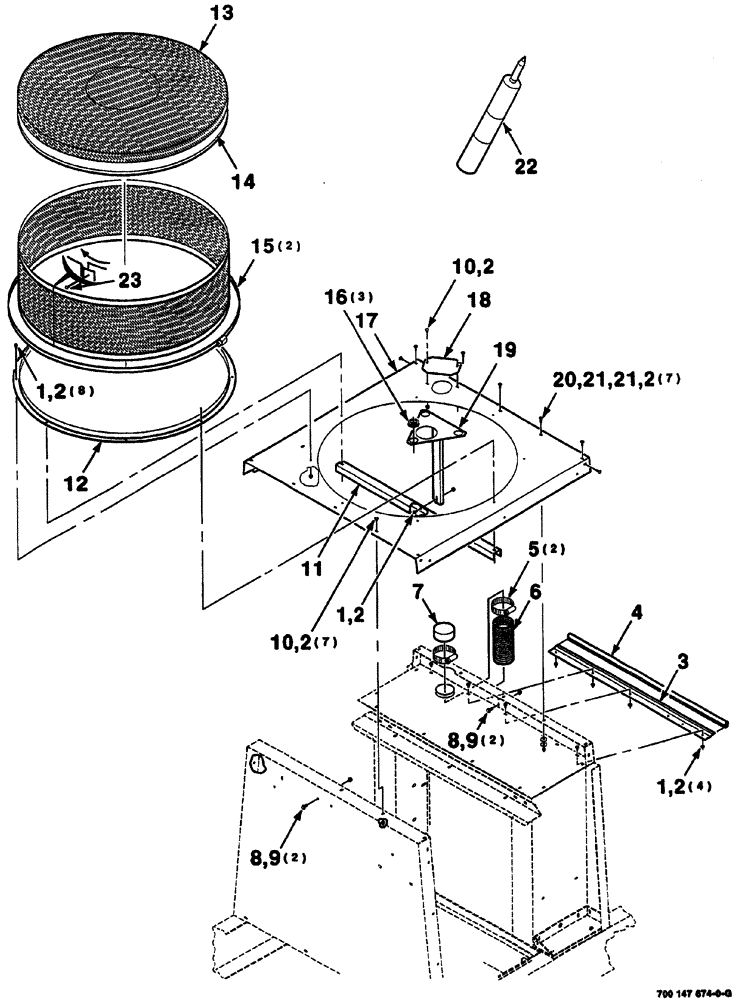

Запчасти Case IH 8860 (07-62) - FIXED SCREEN ASSEMBLY (10) - ENGINE

1

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

13шт.

2

1703354

NUT

lock, hex flange top, GR/G, 1/4-20

28шт.

3

700134266

SUPPORT

seal

1шт.

4

700715488

SEAL

TRIM

1шт.

5

214-1448

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

hose

2шт.

6

700709868

HOSE

air, ducting

1шт.

7

700714518

CAP

1шт.

8

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

9

232-5315

FLANGE NUT,Flg, 5/16"-18

lock, hex flange top, GR/G, 5/16-18

4шт.

10

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

GR60M

8шт.

11

700149662

CHANNEL

1шт.

12

700147676

RING

screen mounting

1шт.

13

700150939

SCREEN

ASSY., Includes: both screens

1шт.

14

700715489

TAPE

double-sided, 36 yard bulk length

1шт.

15

700715492

CLAMP

hose

2шт.

16

248-21110

GROMMET,1" ID x 1 3/8" Groove Dia

3шт.

17

700134259

PANEL

top

1шт.

18

700147677

PLATE

1шт.

19

700149659

SUPPORT

screen, WA

1шт.

20

440-12512

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

GR60M

7шт.

21

700716408

RUBBER WASHER

rubber

14шт.

22

700707823

SEALANT

1шт.

23

764035

RIVET

pop

1шт.
