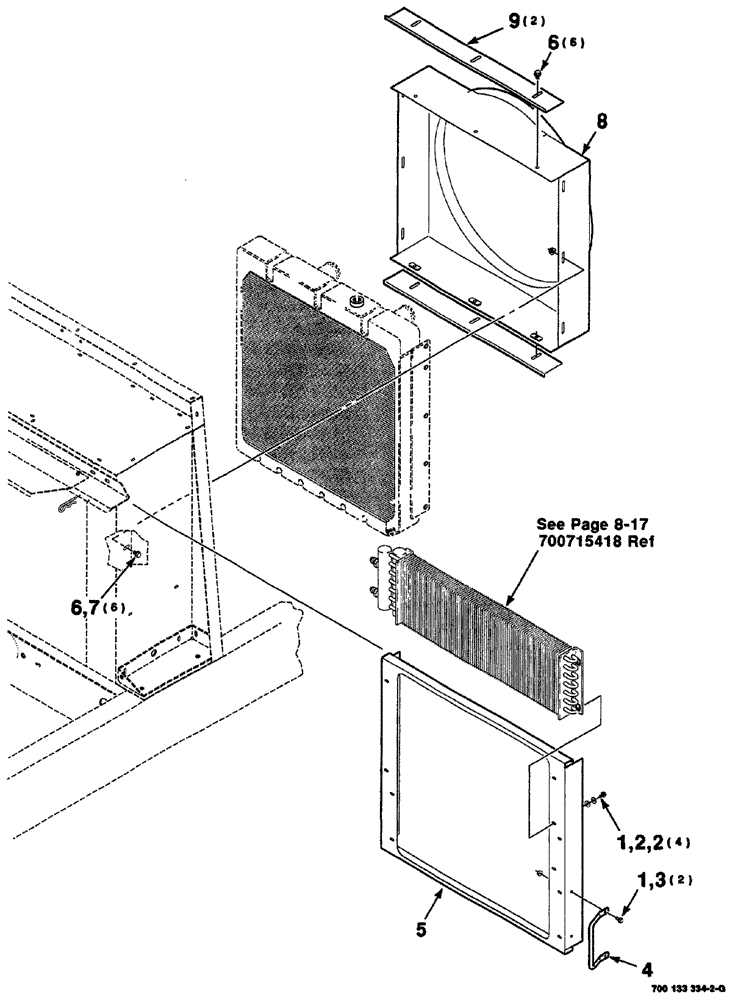

Запчасти Case IH 8860 (07-50) - FAN SHROUD AND COOLER SUPPORT ASSEMBLIES (10) - ENGINE

1

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

6шт.

2

496-11028

WASHER,9/32" x 5/8" x .065, HDN

plain, hardened, 1/4

8шт.

3

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

4

6829360

HANDLE

1шт.

5

700114873

SUPPORT

cooler

1шт.

6

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

12шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

8

700134150

SHROUD

fan, WA

1шт.

9

700115722

PLATE

shield

2шт.
