Запчасти Case IH 8860 (02-24) - THROTTLE, LINKAGE AND MOUNTING ASSEMBLY (8860 110HP) (10) - ENGINE

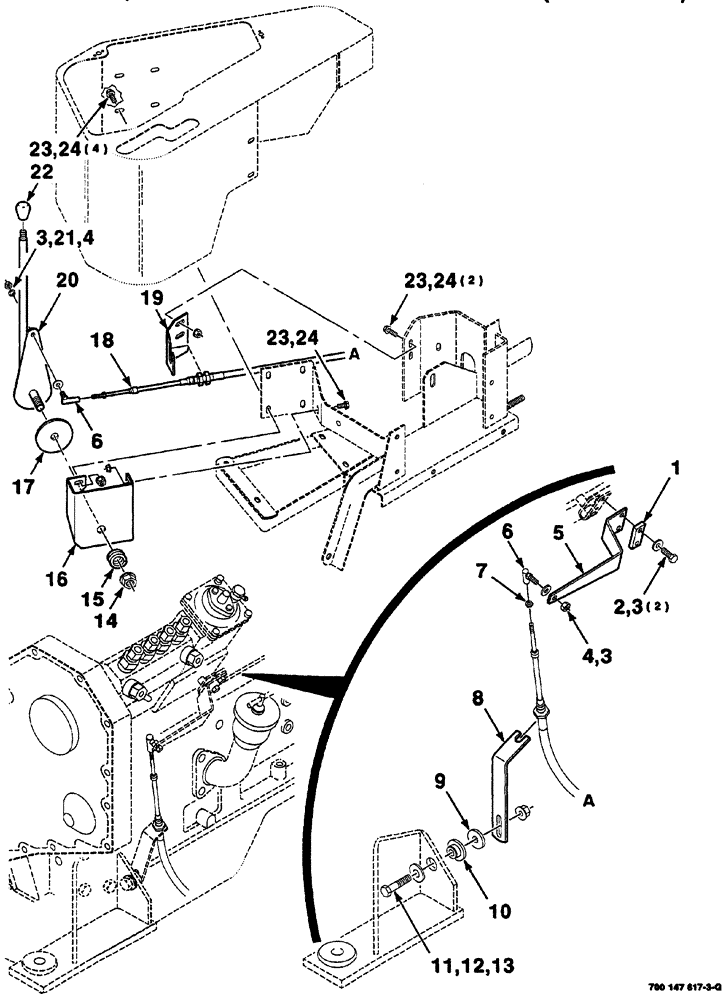

Схема запчастей Case IH 8860 - (02-24) - THROTTLE, LINKAGE AND MOUNTING ASSEMBLY (8860 110HP) (10) - ENGINE
3
3
11
12
7
5
20
19
22
2
23
17
1
23
4
3
14
10
16
24
13
6
15
6
23
9
24
24
4
8
21
18

Артикул

Название

Примечание

Количество

1

700133969

SPACER

1шт.

2

7772155

BOLT

cap, hex, M6 x 1.0 x 16

2шт.

3

496-11028

WASHER,9/32" x 5/8" x .065, HDN

plain, hardened, 1/4

4шт.

4

425-114

NUT,1/4"-28, G5

2шт.

5

700133953

ARM

throttle

1шт.

6

A76747

BALL JOINT,#10 -32 x 7/8" L

ball

2шт.

7

225-14210

NUT,#10-32

1шт.

8

700134323

SUPPORT

throttle

1шт.

9

700117552

WASHER

1шт.

10

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

MOUNTING

1шт.

11

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

12

232-5316

FLANGE NUT,Flg, 3/8"-16

lock, hex flange top, GR/G, 3/8-16

1шт.

13

496-81010

WASHER

plain, wide, hardened, 3/8

1шт.

14

231-5348

FLANGE NUT,Flg, 1/2"-13

lock, hex flange top, GR/G, 1/2-13

1шт.

15

58024

SPRING

compression

1шт.

16

700133461

SUPPORT

throttle

1шт.

17

700711026

DISC

friction

1шт.

18

700715796

CABLE

throttle

1шт.

19

700133483

MOUNTING CLIP

throttle

1шт.

20

700133480

LEVER

throttle, WA

1шт.

21

492-11025

LOCK WASHER,1/4"

1шт.

22

700715314

KNOB

1шт.

23

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

machine, hex washer head, 1/4-20 x 3/4

7шт.

24

1703354

NUT

lock, hex flange top, GR/G, 1/4-20

7шт.

Выбрано товаров: 24
