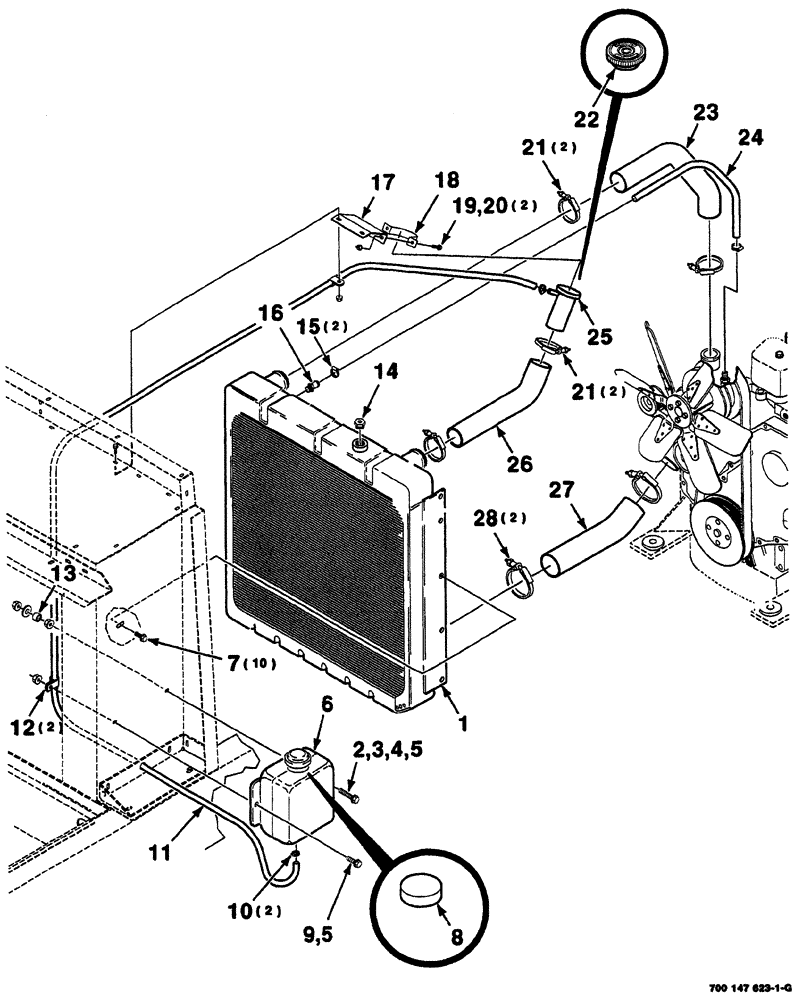

Запчасти Case IH 8860 (02-20) - RADIATOR, HOSES AND MOUNTING ASSEMBLY (10) - ENGINE

1

700715416

RADIATOR

1шт.

2

7883291

SCREW,Hex Washer, 1/4" - 20 x 1 1/4"

machine, hex washer head, 1/4-20 x 1-1/4

1шт.

3

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

4

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

plain, wide, 5/16

1шт.

5

1703354

NUT

lock, hex flange top, GR/G, 1/4-20

2шт.

6

700705626

TANK

reservoir

1шт.

7

7883366

SCREW,Hex Washer, 3/8" - 16 x 1/2"

machine, hex washer head, 3/8-16 x 1/2

10шт.

8

700706181

CAP

threaded

1шт.

9

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

machine, hex washer head, 1/4-20 x 3/4

1шт.

10

7721020

HOSE CLAMP

2шт.

11

2400028

HOSE,0.31" ID x 48.03", SAE 30R1

drain

1шт.

12

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

2шт.

13

51200205

SPACER

1шт.

14

46417

PLUG

1шт.

15

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

2шт.

16

217-122

FITTING,3/8" Hose Barb x 3/8" Male NPTF

INSERT hose

1шт.

17

700134166

SUPPORT

hose

1шт.

18

700134167

CLAMP

hose

1шт.

19

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

machine, hex washer head, 1/4-20 x 3/4

2шт.

20

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

21

700715795

CLAMP

hose, T-bolt

4шт.

22

700716393

CAP

radiator

1шт.

23

700715504

HOSE

radiator, upper

1шт.

24

700715397

HOSE

overflow

1шт.

25

700715420

CAP

ASSY.

1шт.

26

700715419

RADIATOR HOSE,44.45 mm ID x 239,74 mm, SAE 20R4 CLASS D1

Upper

1шт.

27

700715794

HOSE

radiator, lower

1шт.

28

214-3248

HOSE CLAMP,57mm - 79mm

T-bolt

2шт.
