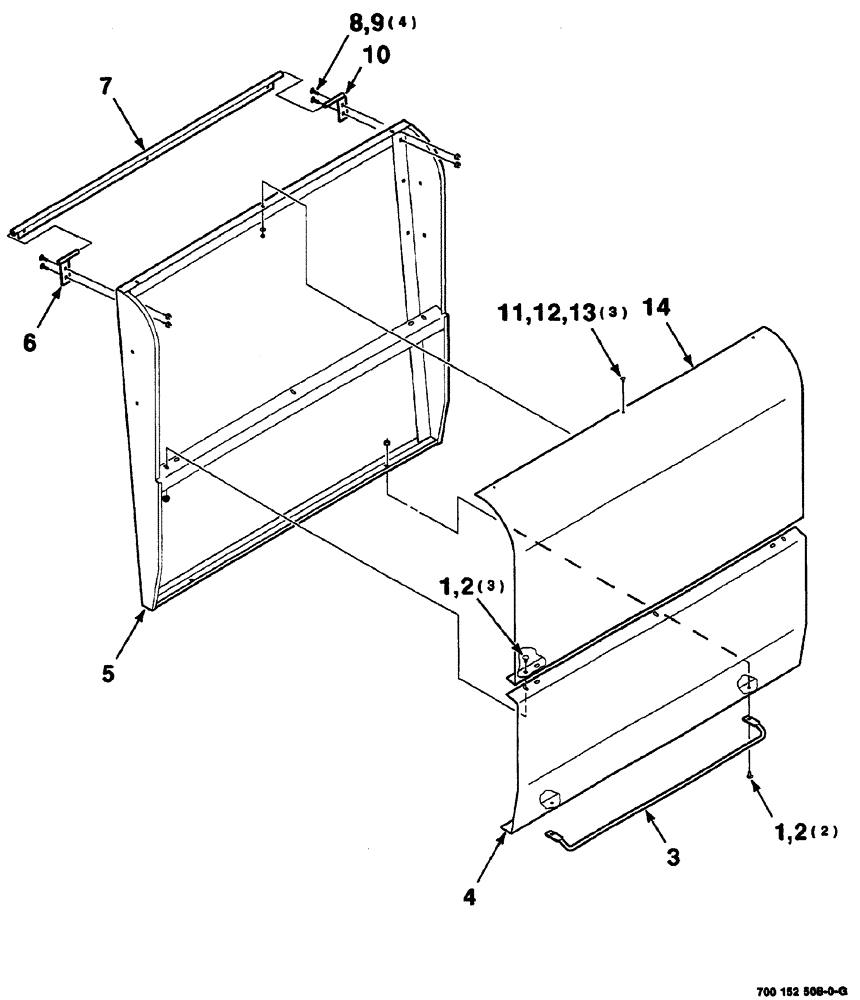

Запчасти Case IH 8860 (07-60) - DOOR ASSEMBLY (S.N. CFH0145400 AND LATER) (90) - PLATFORM, CAB, BODYWORK AND DECALS

700152508

DOOR

ASSY., complete

1шт.

1

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

round head square neck, 1/4-20 x 1/2

5шт.

2

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

5шт.

3

700134234

HANDLE

1шт.

4

700152509

PANEL

door

1шт.

5

700152511

FRAME

door, WA

1шт.

6

700134243

PIN

front, left, WA

1шт.

7

700134248

HINGE

WA

1шт.

8

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

round head square neck, 1/4-20 x 3/4

4шт.

9

1703354

NUT

lock, hex flange top, GR/G, 1/4-20

4шт.

10

700134244

PIN

rear, left, WA

1шт.

11

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

machine, cross recess pan head, #10-24 x 1/2, GR60M

3шт.

12

495-31022

WASHER,#10

3шт.

13

225-14110

NUT,#10-24

3шт.

14

700152510

PANEL

door, upper

1шт.
