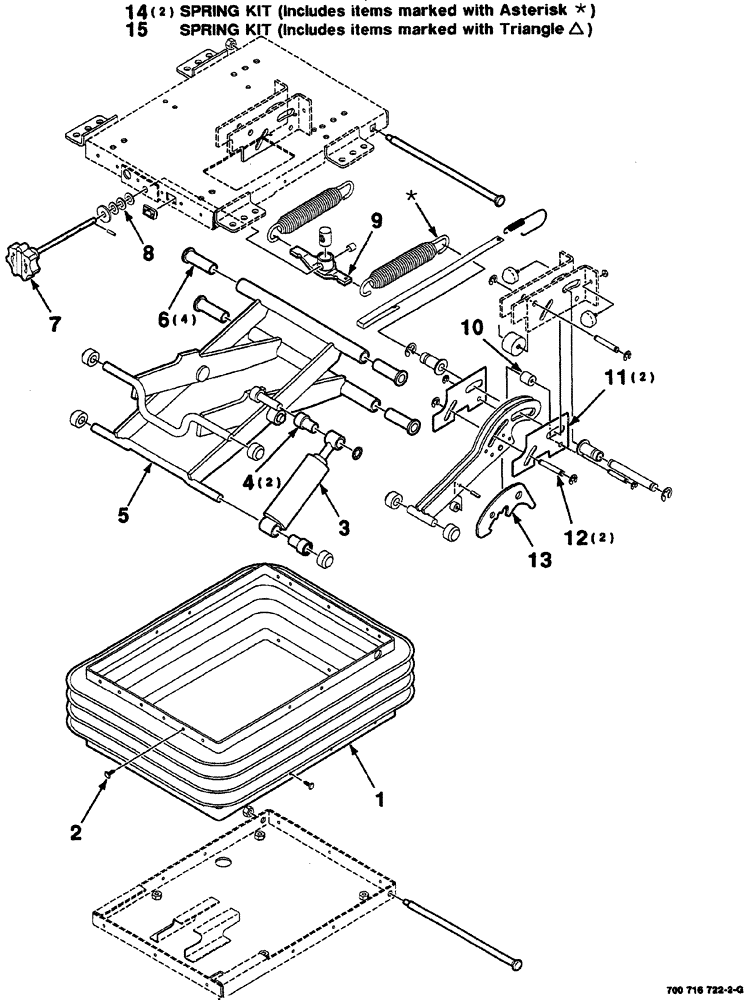

Запчасти Case IH 8860 (07-38) - SEAT SUSPENSION ASSEMBLY (MECHANICAL) (90) - PLATFORM, CAB, BODYWORK AND DECALS

241190A1

PACKAGE

suspension, complete

1шт.

1

1990647C2

KIT

BOOT suspension

1шт.

2

132872A1

KIT

BUTTON boot

1шт.

3

1344250C2

KIT

shock absorber, Includes: keeper and bushings

1шт.

4

A45501

BUSHING,0.504" ID x 0.87" OD x 1.417"

BEARING shock

2шт.

5

1981789C2

SUPPORT

ARM scissor, seat, WA

1шт.

6

A49529

SHAFT

BEARING

4шт.

7

123969A1

SEAT ACCESSORY

Knob spinner

1шт.

8

F13537

THRUST BEARING

thrust

1шт.

9

700719046

ADJUSTER

HEIGHT WA

1шт.

10

123967A1

PACKAGE

FOLLOWER cam

1шт.

11

700712454

SPACER

2шт.

12

700712450

PIN

with grooves

2шт.

13

123967A1

PACKAGE

CAM

1шт.

14

123968A2

PACKAGE

spring

2шт.

15

1999901C1

KIT

spring

1шт.
