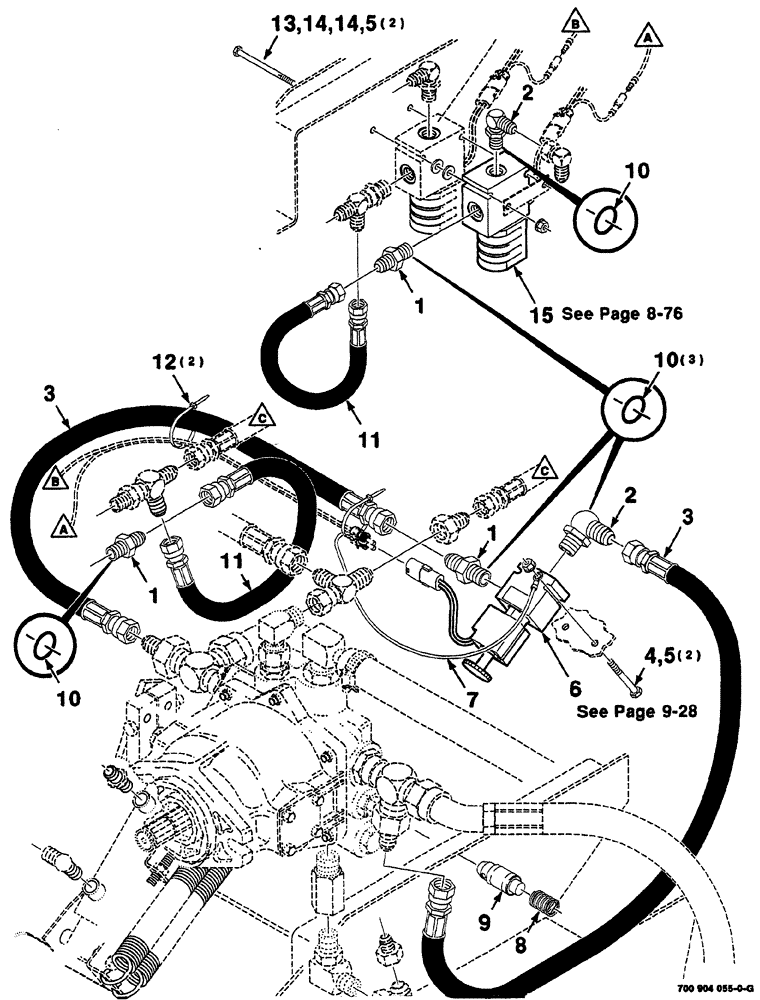

Запчасти Case IH 8860 (09-26) - HEADER REVERSE KIT (88) - ACCESSORIES

HK60907

KIT header reverse, complete

1шт.

1

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 10

3шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes Ref. 10

2шт.

3

700710789

HYDRAULIC HOSE,9.65 mm ID x 580.00 mm, TYPE 100R1 SAE J517

2шт.

4

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

5

1703354

NUT

lock, hex flange top, 1/4-20, GR/G

4шт.

6

700718658

VALVE

ASSY. header neutral

1шт.

7

700715739

HARNESS

wire

1шт.

8

N7925

SPRING

compression

1шт.

9

149705C91

VALVE

ASSY.

1шт.

10

738468

O-RING

5шт.

Part of Elbow Ref. 2 P/N 218-5105

1шт.

Part of Adapter Ref. 1 P/N 218-5057

1шт.

11

8742447

HOSE

hydraulic

2шт.

12

306132C1

CABLE TIE,14.5" L

CABLE STRAP TIE cable

2шт.

13

413-460

BOLT,Hex, 1/4" - 20 x 3-3/4", Gr 5

hex, 1/4-20 x 3-3/4

2шт.

14

496-11028

WASHER,9/32" x 5/8" x .065, HDN

plain, hardened, 1/4

4шт.

15

700715996

VALVE

ASSY.

1шт.
