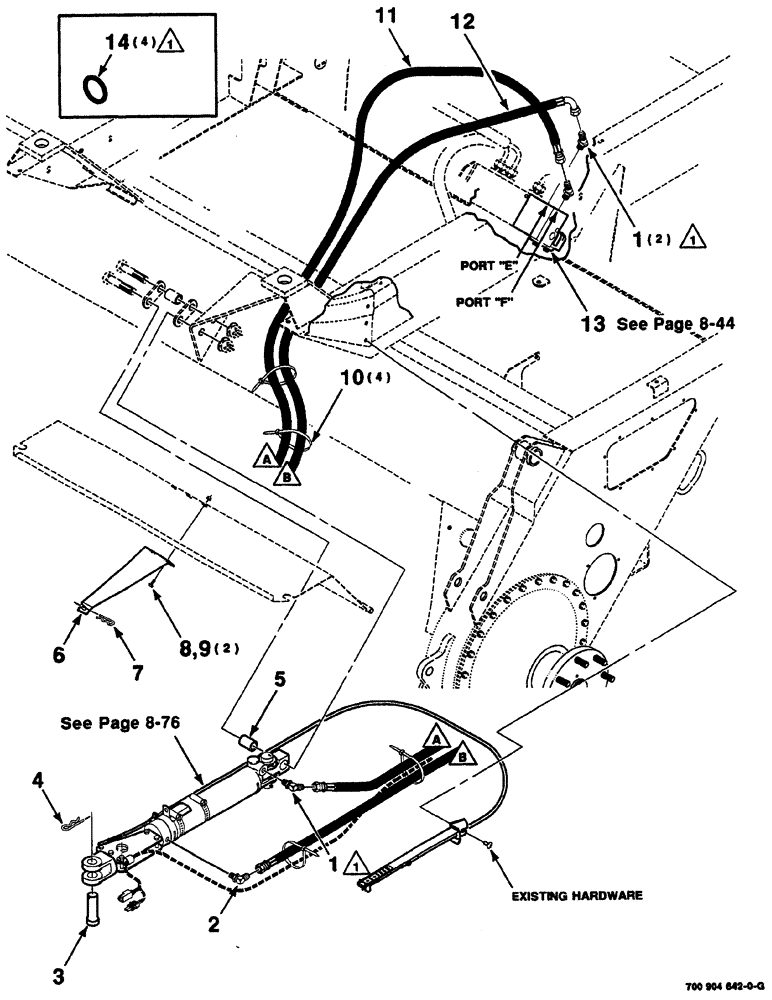

Запчасти Case IH 8860 (09-24) - GUARD ANGLE TILT KIT (88) - ACCESSORIES

HK60946

KIT guard angle tilt, complete

1шт.

1

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. Ref 14

3шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes Ref. 14

1шт.

3

427-16350

CLEVIS PIN,25.4mm OD x 88.9mm L

clevis, 1 x 3-1/2

1шт.

4

62455

PIN, SPLIT (COTTER)

PIN, COTTER wire hair, .178

1шт.

5

700114925

BUSHING

BUSHING

1шт.

6

700134355

SUPPORT

WA

1шт.

7

S120261

PIN

cotter, wire hair, .148

1шт.

8

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

9

232-5315

FLANGE NUT,Flg, 5/16"-18

lock, hex flange top, 5/16-18, GR/G

2шт.

10

306132C1

CABLE TIE,14.5" L

CABLE STRAP TIE nylon

4шт.

11

700709957

HYDRAULIC HOSE,6.35 mm ID x 1400.00 mm, TYPE 100R1

1шт.

12

700707385

HOSE

hydraulic

1шт.

13

700715497

MANIFOLD

ASSY.

1шт.

14

738468

O-RING

4шт.

Part of Elbow Ref. 1 P/N 218-5135

1шт.

Part of Elbow Ref. 2 P/N 218-5105

1шт.
