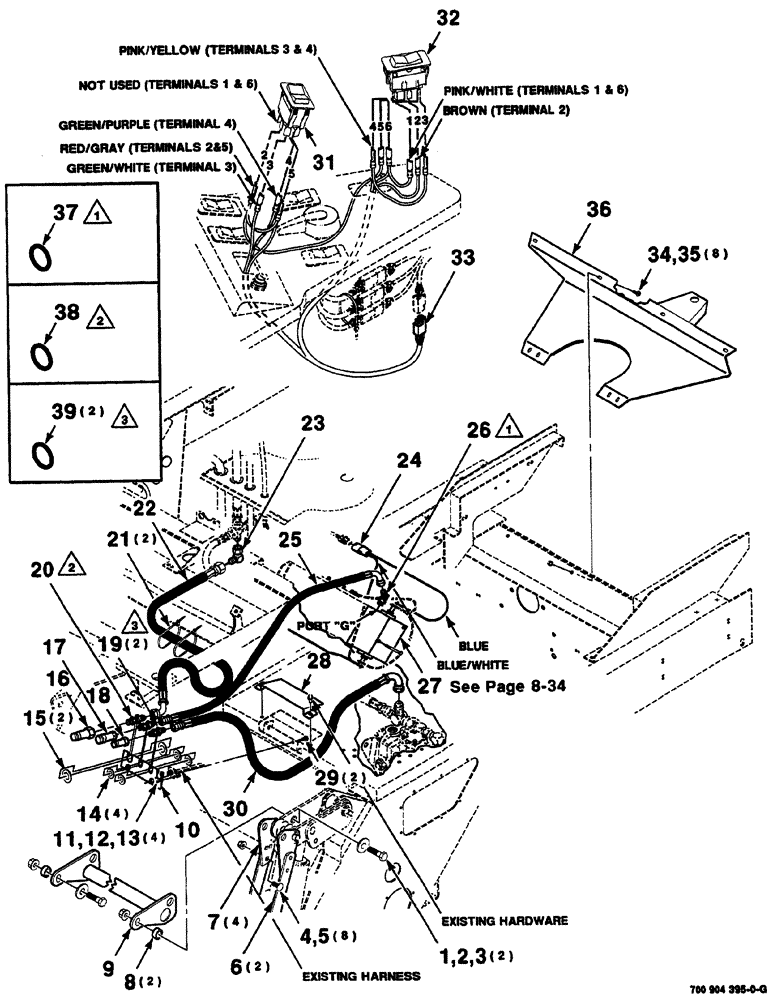

Запчасти Case IH 8860 (09-22) - DRAPER ADAPTER KIT (88) - ACCESSORIES

HK60922

KIT

Draper adapter, complete

1шт.

1

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

2шт.

2

700711166

WASHER

plain, hardened, wide, 3/4

2шт.

3

232-53112

FLANGE NUT,Flg, 3/4"-10

GR/G

2шт.

4

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

8шт.

5

231-5348

FLANGE NUT,Flg, 1/2"-13

lock, hex flange top, 1/2-13, GR/G

8шт.

6

700147823

LINK

WA

2шт.

7

700147826

PLATE

4шт.

8

700134081

SPACER

2шт.

9

700134057

SHAFT

torque, WA

1шт.

10

700147693

PLATE

coupler, WA

1шт.

11

440-1066

SCREW,Cross Pan Hd, #6-32 x 3/8"

machine, cross recess pan head, #6-32 x 3/8, GR60M

4шт.

12

495-31016

WASHER,#6

4шт.

13

225-14106

NUT,#6-32

4шт.

14

705566

WASHER

plain, hardened, 3/4

4шт.

15

705574

WASHER,1 1/8" x 2" x .156", HDN

2шт.

16

122178A2

COUPLING, BREAK AWAY

NIPPLE quick

1шт.

17

700716553

CROSSMEMBER

COUPLER quick

1шт.

18

700716552

PIPE

ADAPTER bulkhead

1шт.

19

700717190

ADAPTER

bulkhead

2шт.

20

700716556

ADAPTER

bulkhead

1шт.

21

529070

CABLE TIE,368.3mm L

CABLE STRAP TIE nylon

2шт.

22

700716512

HOSE

hydraulic

1шт.

23

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

24

700716509

HARNESS

wire, reel lift

1шт.

25

700716510

HOSE

hydraulic

1шт.

26

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

1шт.

27

700715325

MANIFOLD

ASSY.

1шт.

28

700134345

COVER

1шт.

29

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

30

700716511

HOSE

hydraulic

1шт.

31

700715307

SWITCH

1шт.

32

700715308

SWITCH

1шт.

33

700716507

HARNESS

wire, Draper

1шт.

34

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

8шт.

35

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

36

700147650

TRAILER HITCH

WA

1шт.

37

738468

O-RING

1шт.

38

738484

O-RING

1шт.

39

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.
