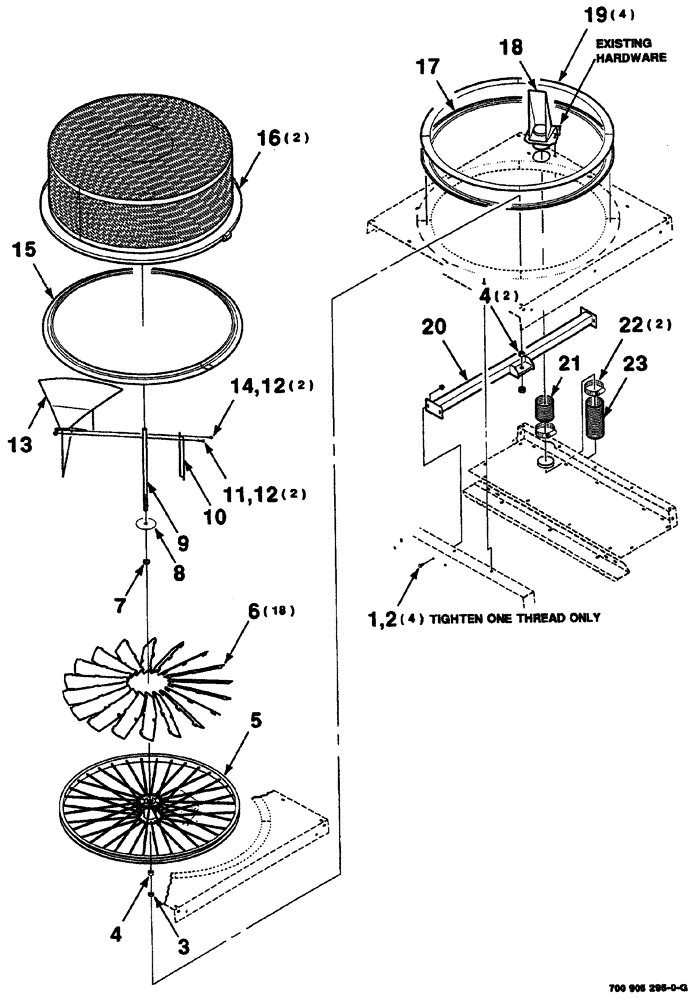

Запчасти Case IH 8860 (09-16) - ROTARY SCREEN KIT (88) - ACCESSORIES

HK60949

KIT rotary screen, complete

1шт.

1

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

2

232-5315

FLANGE NUT,Flg, 5/16"-18

lock, hex flange top, 5/16-18, GR/G

4шт.

3

425-1510

JAM NUT,Jam, 5/8"-18, G5

Hex

1шт.

4

425-1110

NUT,5/8"-18, G5

3шт.

5

700715496

SCREEN

WHEEL

1шт.

6

700134279

FIN

18шт.

7

700118822

SPACER

1шт.

8

700133444

WASHER

special

1шт.

9

700134278

SHAFT

1шт.

10

700134277

SUPPORT

1шт.

12

1703354

NUT

lock, hex flange top, 1/4-20, GR/G

4шт.

13

700134274

BAFFLE

WA

1шт.

14

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

15

700715493

SEAL

rotary screen

1шт.

16

700715492

CLAMP

hose

2шт.

17

700718450

TAPE

double-sided

1шт.

18

700134267

HOUSING

WA

1шт.

19

700716181

RING

stainless steel

4шт.

20

700134260

BEAM

WA

1шт.

21

700715495

HOSE

air ducting

1шт.

22

214-1448

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

hose

2шт.

23

700709868

HOSE

air ducting

1шт.

11

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.
