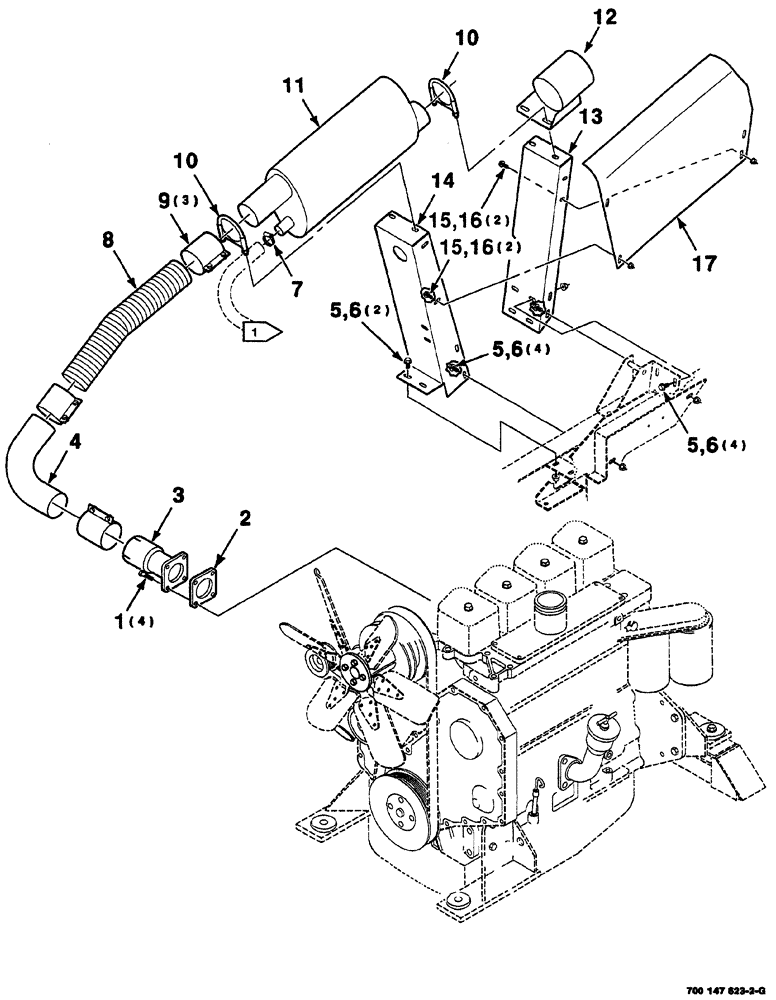

Запчасти Case IH 8860 (02-12) - ENGINE EXHAUST AND MOUNTING ASSEMBLY (8860 80HP) (10) - ENGINE

1

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

2

J912220

GASKET,0.4mm Thk

1шт.

3

700147834

TUBE

WA

1шт.

4

700716740

ELBOW

tube

1шт.

5

409-7612

BOLT,3/8"-16 x 1.09" OAL

10шт.

6

232-5316

FLANGE NUT,Flg, 3/8"-16

lock, hex flange top, GR/G, 3/8-16

10шт.

7

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

1шт.

8

700716743

TUBE

flexible

1шт.

9

700715571

CLAMP

seal

3шт.

10

722769

CLAMP

exhaust

2шт.

11

700715574

MUFFLER

1шт.

12

700134328

TUBE

exhaust, WA

1шт.

13

700134332

SUPPORT

muffler, rear

1шт.

14

700134333

SUPPORT

muffler, front

1шт.

15

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

16

232-5315

FLANGE NUT,Flg, 5/16"-18

lock, hex flange top, GR/G, 5/16-18

4шт.

17

700134326

SHIELD

muffler

1шт.
