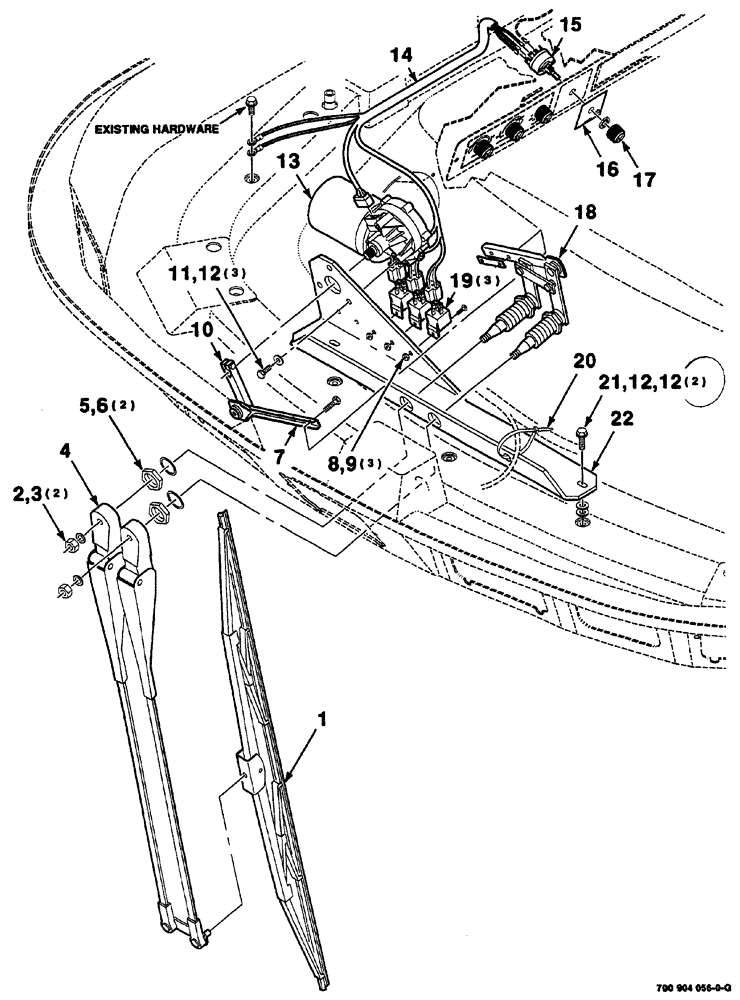

Запчасти Case IH 8860 (09-12) - WINDSHIELD WIPER KIT (88) - ACCESSORIES

HK60908

KIT windshield wiper, complete

1шт.

1

700715857

WIPER BLADE

wiper

1шт.

2

700715864

NUT

hex, wiper

2шт.

3

700715865

WASHER

spring, wiper

2шт.

4

700715858

ARM

wiper

1шт.

5

700715861

NUT

hex, wiper

2шт.

6

700715863

WASHER

special, wiper

2шт.

7

700715856

LINK

wiper

1шт.

8

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

machine, cross recess pan head, #10-24 x 1/2, GR60M

3шт.

9

225-14110

NUT,#10-24

3шт.

10

700715859

CRANK

ARM wiper

1шт.

11

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

12

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

7шт.

13

700715855

MOTOR

wiper

1шт.

14

700715852

HARNESS

ASSY. wire, Includes: Ref. 15 and 19

1шт.

15

700715710

SWITCH

wiper

1шт.

Part of Wire Harness Assy. Ref. 14 P/N 700715852

1шт.

16

700716394

DECAL

wiper

1шт.

17

700715253

KNOB

1шт.

18

700715860

PIVOT

wiper

1шт.

19

700712971

RELAY

wiper

3шт.

Part of Wire Harness Assy. Ref. 14 P/N 700715852

1шт.

20

306132C1

CABLE TIE,14.5" L

CABLE STRAP TIE cable

1шт.

21

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

machine, hex washer head, 5/16-18 x 1

2шт.

22

700133336

MOUNTING CLIP

wiper motor

1шт.
