Запчасти Case IH 8860 (07-76) - LIFT ARM AND FLOTATION ASSEMBLIES (8860HP CONTINUED) (58) - ATTACHMENTS/HEADERS

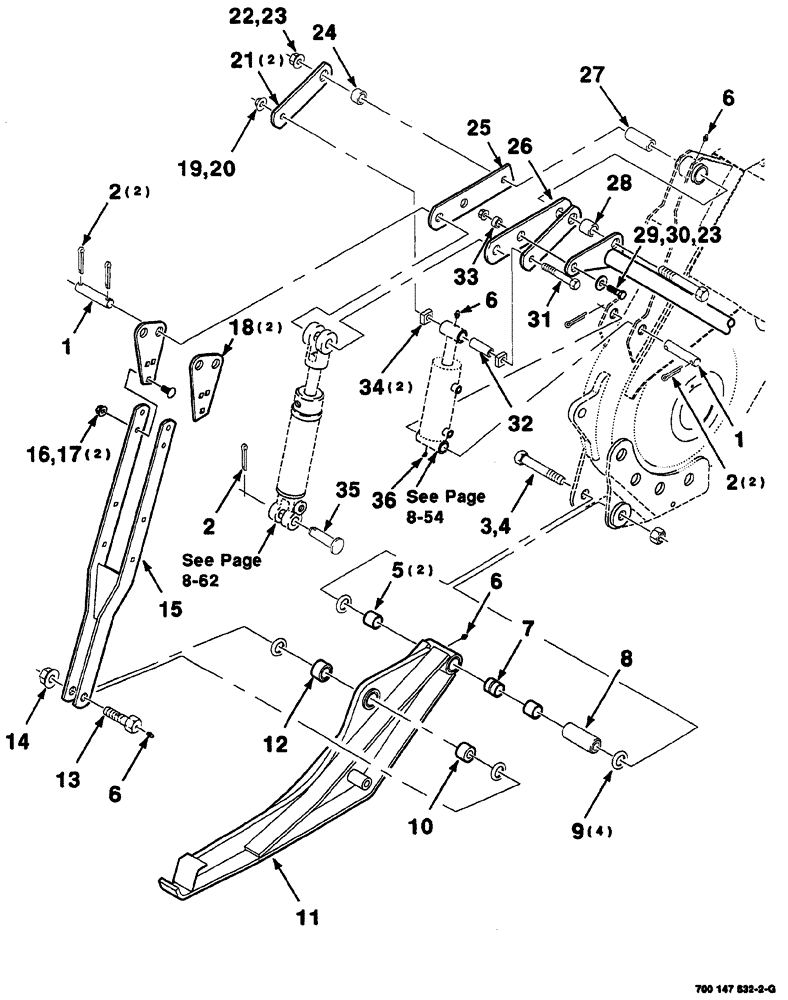

Схема запчастей Case IH 8860 - (07-76) - LIFT ARM AND FLOTATION ASSEMBLIES (8860HP CONTINUED) (58) - ATTACHMENTS/HEADERS
25
6
23
22
14
13
2
1
18
28
23
24
12
11
35
15
10
21
1
2
36
6
2
16
8
31
34
27
19
30
4
20
5
9
7
17
6
33
3
26
29
6
32

Артикул

Название

Примечание

Количество

1

700111102

PIN

2шт.

2

432-1228

COTTER PIN,3/16" x 1 3/4"

5шт.

3

700118693

PIN

1шт.

4

232-41116

LOCK NUT,1"-8, GC

HTLN, 1-8, GR/B

1шт.

5

56095R91

NEEDLE BEARING,Needle, 38.07mm ID x 47.64mm OD x 31.75mm W

needle

2шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

7

700134075

SPACER

1шт.

8

700118691

SLEEVE,25.55mm ID x 38.34mm OD x 110mm L

1шт.

9

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

4шт.

10

700134095

BUSHING,23.02mm ID x 38.34mm OD x 33.5mm L

1шт.

11

700134066

ARM

lift, right, WA

1шт.

12

A7851

NEEDLE BEARING,Needle, 38.09mm ID x 47.64mm OD x 25.4mm W

needle

1шт.

13

700121584

BOLT,Hex, 7/8" - 9 x , Gr 5

special

1шт.

14

232-53114

FLANGE NUT,Flg, 7/8"-9

lock, hex flange top, 7/8-9, GR/G

1шт.

15

700147823

LINK

WA

1шт.

16

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

2шт.

17

231-5348

FLANGE NUT,Flg, 1/2"-13

lock, hex flange top, 1/2-13, GR/G

2шт.

18

700147826

PLATE

2шт.

19

232-53110

FLANGE NUT,Flg, 5/8"-11

1шт.

20

326-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 8

1шт.

21

700134082

PLATE

2шт.

22

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

hex, 3/4-10 x 6-1/2

1шт.

23

232-53112

FLANGE NUT,Flg, 3/4"-10

GR/G

2шт.

24

6834071

BUSHING

1шт.

25

700134085

STRAP

1шт.

26

700111085

STRAP

1шт.

27

700111080

BUSHING

arm

1шт.

28

6203756

SPACER

1шт.

29

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

1шт.

30

700711166

WASHER

plain, hardened, wide, 3/4

1шт.

31

700134078

STRAP

1шт.

32

700134077

BUSHING

1шт.

33

700134081

SPACER

1шт.

34

700134076

CAM

2шт.

35

427-16350

CLEVIS PIN,25.4mm OD x 88.9mm L

clevis, 1 x 3-1/2

1шт.

36

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

Zerk, 1/4-28 x 45°

1шт.

Выбрано товаров: 36
