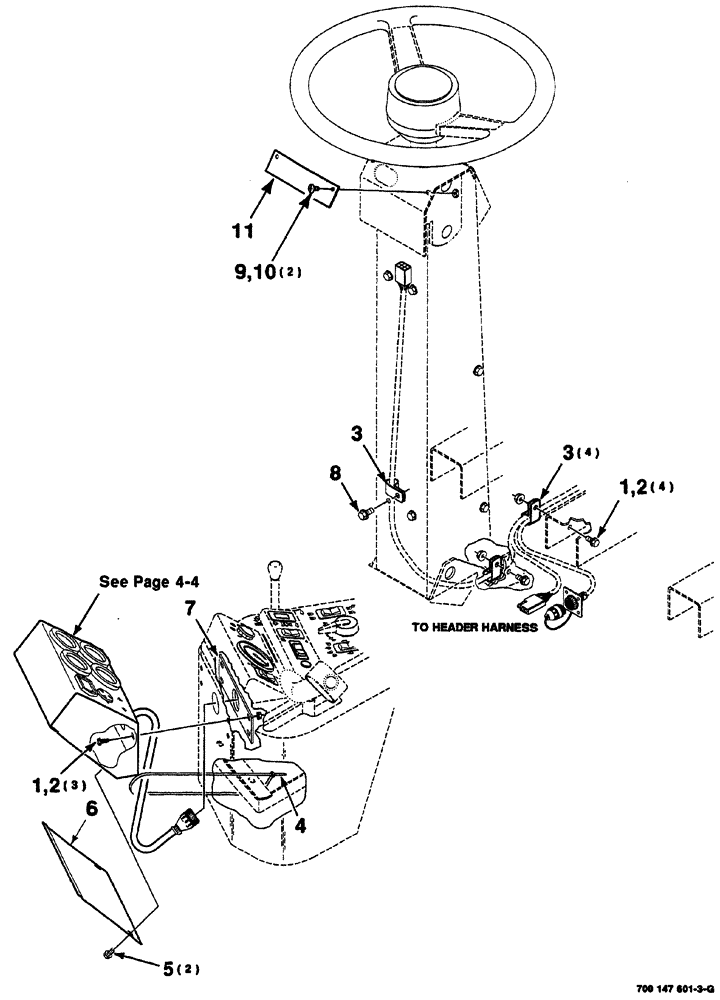

Запчасти Case IH 8860 (04-02) - STEERING COLUMN AND GAUGE ASSEMBLIES (41) - STEERING

1

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

machine, hex washer head, 1/4-20 x 3/4

7шт.

2

1703354

NUT

lock, hex flange top, GR/G, 1/4-20

7шт.

3

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

Line

5шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP TIE cable

1шт.

5

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

6

700147647

COVER

1шт.

7

700134339

PLATE

1шт.

8

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

9

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

2шт.

10

225-14108

NUT,#8-32

hex, , GR2 #8-32

2шт.

11

700147648

COVER

1шт.
