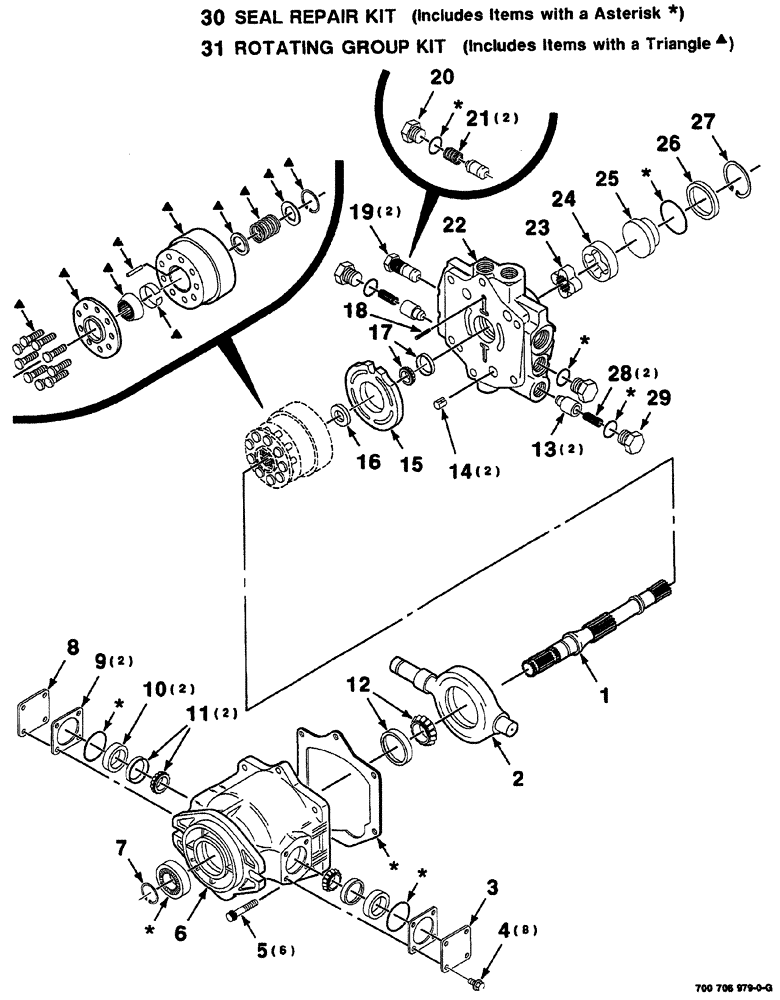

Запчасти Case IH 8860 (08-70) - HEADER DRIVE PUMP ASSEMBLY (35) - HYDRAULIC SYSTEMS

700706979

HYDRAULIC PUMP

ASSY. header drive, complete

1шт.

700706979R

REMAN-HYD PUMP

8860, 8860HP both CASE IH SELF-PROPELLED WINDROWER TRACTOR

1шт.

700706979C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

8732802

DRIVE SHAFT

1шт.

2

N8292

YOKE

UNIVERSAL JOINT YOKE

1шт.

3

A47288

COVER

1шт.

4

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

8шт.

5

380-2624

12 PT SCREW,Flg, 3/8" - 16 x 1 1/2"

flange, 12-point

6шт.

6

N8293

HOUSING

1шт.

7

100-21175

SNAP RING,1.75", Int, #175

1шт.

8

N8294

COVER

pintle

1шт.

9

145590C1

SHIM KIT

2шт.

10

A47286

SPACER

SPACER

2шт.

11

1263241C1

WHEEL BEARING KIT

SET bearing

2шт.

12

8730053

BEARING SET

SET bearing

1шт.

13

8730152

VALVE POPPET

3000 PSI

2шт.

14

A47301

PIN

roll

2шт.

15

149704C1

LARGE PLATE

PLATE, LARGE wafer, right

1шт.

16

145582C1

KIT

spacer

1шт.

17

8730046

BEARING SET

1шт.

18

A47309

PIN

roll

1шт.

19

149705C91

VALVE

check, 75 PSI, Includes: Ref. 20 and 21

2шт.

20

N8302

PLUG

without ring

1шт.

Part of Check Valve Ref. 19 P/N 149705C91

1шт.

21

N7925

SPRING

2шт.

Part of Check Valve Ref. 19 P/N 149705C91

1шт.

22

8732794

VALVE

BLOCK

1шт.

23

8732778

ROTOR ASSY.

inner

1шт.

24

8732786

ROTOR ASSY.

outer

1шт.

25

8732760

PLATE

end

1шт.

26

736306

WASHER

KIT spacer

1шт.

27

736314

RING, SNAP

RING SNAP retaining

1шт.

28

149707C1

SPRING

2шт.

29

7030695

PLUG

1шт.

30

700705450

SEAL KIT

1шт.

31

145592C91

KIT

rotating group

1шт.
