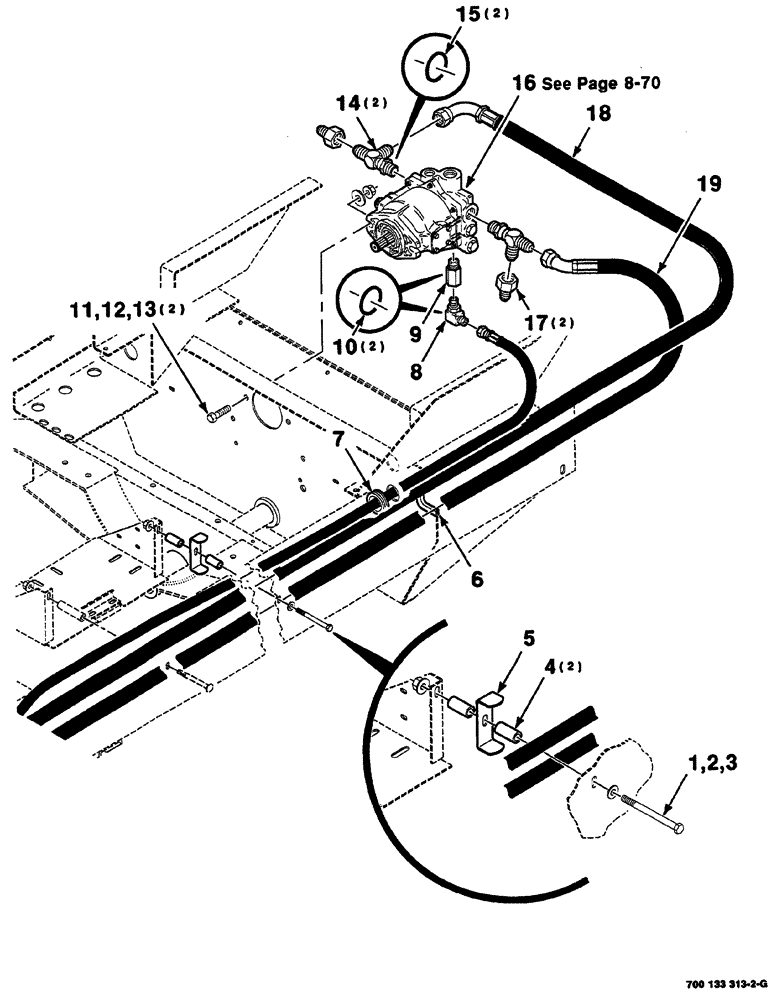

Запчасти Case IH 8860 (08-68) - HEADER DRIVE HYDRAULIC ASSEMBLY (CONTINUED) (35) - HYDRAULIC SYSTEMS

1

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

cap, hex, 3/8-16 x 4-1/2

1шт.

2

496-11041

WASHER,13/32" x 13/16" x .065", HDN

plain, hardened, 3/8

1шт.

3

232-5316

FLANGE NUT,Flg, 3/8"-16

lock, hex flange top, 3/8-16, GR/G

1шт.

4

700133576

SPACER

2шт.

5

700133575

RETAINER

1шт.

6

700715944

SEAL

TRIM push-on

1шт.

7

248-21114

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

1шт.

8

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

1шт.

9

7896541

VALVE

check

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

11

8701237

BOLT

hex flange, 1/2-13 x 1-1/2, GR8

2шт.

12

700711557

WASHER

plain, hardened, wide, 1/2

2шт.

13

231-5348

FLANGE NUT,Flg, 1/2"-13

lock, hex flange top, 1/2-13, GR/G

2шт.

14

218-5245

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

tee, Includes: Ref. 15

2шт.

15

738476

O-RING

2шт.

Part of Fitting Ref. 14 P/N 218-5245

1шт.

16

700706979

HYDRAULIC PUMP

ASSY. hydrostatic

1шт.

700706979R

REMAN-HYD PUMP

8860, 8860HP both CASE IH SELF-PROPELLED WINDROWER TRACTOR

1шт.

700706979C

CORE-HYDRAULIC PUMP

Return Number

1шт.

17

700702195

HYD CONNECTOR

REDUCER

2шт.

18

700715445

HOSE

hydraulic

1шт.

19

700715446

HOSE

hydraulic

1шт.
