Запчасти Case IH 8860 (08-66) - HEADER DRIVE HYDRAULIC ASSEMBLY (35) - HYDRAULIC SYSTEMS

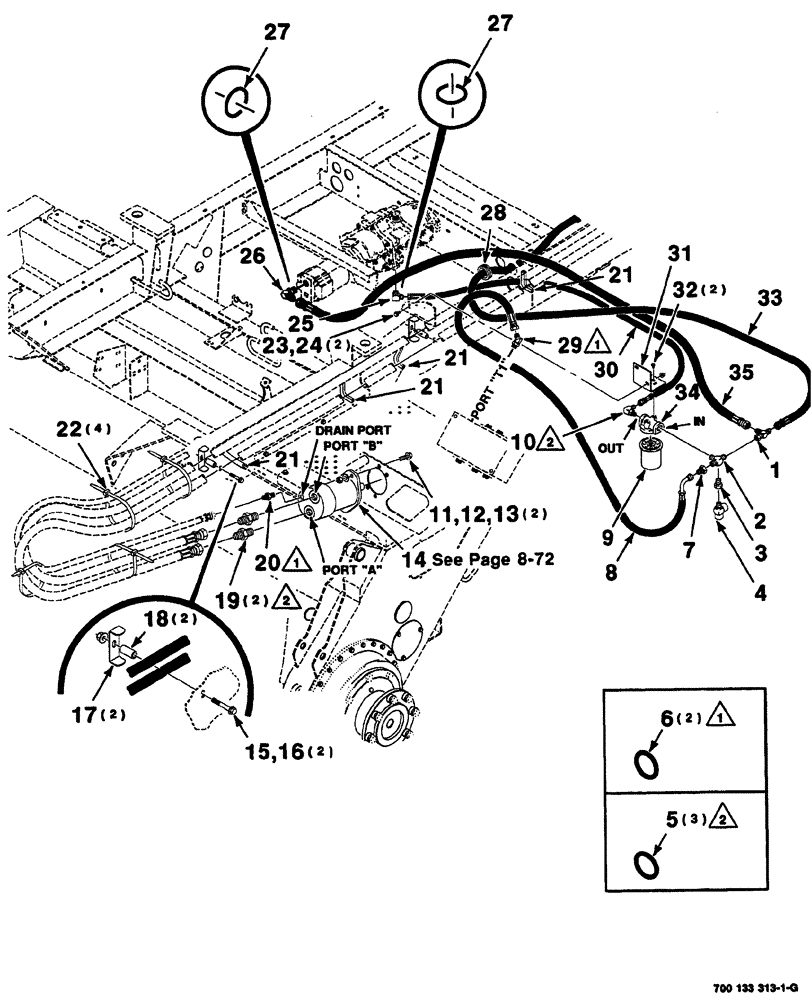

Схема запчастей Case IH 8860 - (08-66) - HEADER DRIVE HYDRAULIC ASSEMBLY (35) - HYDRAULIC SYSTEMS
21
33
29
15
1
2
11
27
25
21
6
31
19
24
5
20
30
35
16
21
28
26
34
3
17
18
27
13
21
23
22
10
12
7
8
14
4
9
32

Артикул

Название

Примечание

Количество

1

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

2

700114940

3 WAY CONNECTION

TEE

1шт.

3

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

Pipe, bushing

1шт.

4

7846041

FITTING

tee

1шт.

5

738484

O-RING

3шт.

Part of Fitting Ref. 10 P/N 218-5108

1шт.

Part of Connector Ref. 19 P/N 218-5050

1шт.

6

738468

O-RING

2шт.

Part of Connector Ref. 20 P/N 218-5057

1шт.

Part of Elbow Ref. 29 P/N 218-5135

1шт.

7

7791361

FITTING

adapter

1шт.

8

700709382

HOSE

hydraulic

1шт.

9

8040461

FILTER

ELEMENT

1шт.

10

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

lncl. Ref. 5

1шт.

11

8701237

BOLT

hex flange, 1/2-13 x 1-1/2, GR8

2шт.

12

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

plain, hardened, 1/2

2шт.

13

425-108

NUT,1/2" - 13, Gr 5

2шт.

14

700706977

HYDRAULIC MOTOR

ASSY. hydrostatic

1шт.

700728299R

REMAN-HYD MOTOR

8860, 8860HP, Reman for New P/N 700706977

1шт.

700728299C

REMAN-HYD MOTOR

Return Number

1шт.

15

7702079

SCREW

hex flange, 3/8-16 x 2-1/2, GR8

2шт.

16

232-5316

FLANGE NUT,Flg, 3/8"-16

lock, hex flange top, 3/8-16, GR/G

2шт.

17

700133575

RETAINER

2шт.

18

700133576

SPACER

2шт.

19

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref 5

2шт.

20

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 6

1шт.

21

700715944

SEAL

TRIM push-on

4шт.

22

529070

CABLE TIE,368.3mm L

TIE cable

4шт.

23

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

24

232-5315

FLANGE NUT,Flg, 5/16"-18

lock, hex flange top, 5/16-18, GR/G

2шт.

25

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. Ref. 28

1шт.

26

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

lncludes: Ref. 27

1шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

Part of Elbow Ref. 26 P/N 218-5121

1шт.

28

248-21114

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

1шт.

Part of Elbow Ref. 25 P/N 218-5107

1шт.

29

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. Ref 6

1шт.

30

8843054

HOSE

hydraulic

1шт.

31

6827224

ANGLE

mounting

1шт.

32

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

33

700706991

HOSE

hydraulic

1шт.

34

8843260

FILTER

HEAD

1шт.

35

700701566

FLEXIBLE HOSE

hydraulic

1шт.

Выбрано товаров: 43
