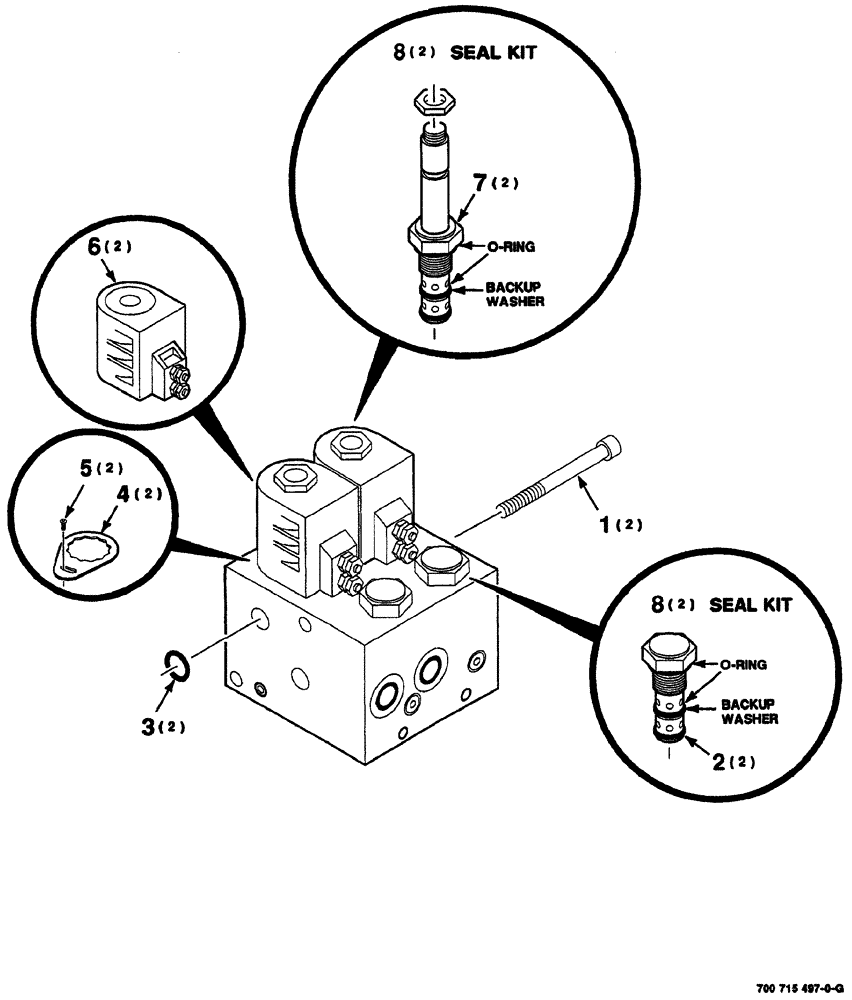

Запчасти Case IH 8860 (08-44) - HYDRAULIC MANIFOLD ASSEMBLY (8860HP) (35) - HYDRAULIC SYSTEMS

700715497

MANIFOLD

ASSY. hydraulic, complete

1шт.

1

700717378

SCREW

cap, hex socket head, 1/4-20 x 4

2шт.

2

700713587

VALVE

check, P.O.

2шт.

3

700717377

O-RING

2шт.

4

700716903

LOCKING PLATE

LOCK hex

2шт.

5

440-1066

SCREW,Cross Pan Hd, #6-32 x 3/8"

machine, cross recess pan head, 6-32 x 3/8

2шт.

6

700712921

COIL

encap, 12V DC DP

2шт.

7

700712819

CARTRIDGE

VALVE spool, 3W 2P

2шт.

8

700712678

KIT

seal

4шт.
