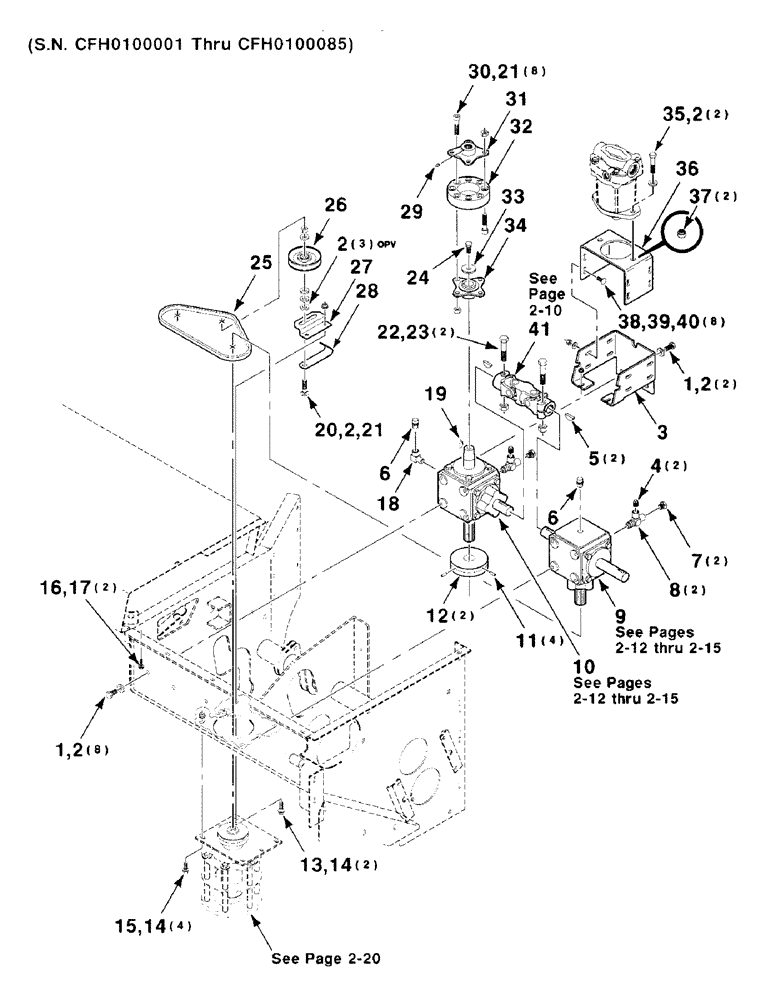

Запчасти Case IH 8850 (2-02) - HEADER DRIVE ASSEMBLY, LEFT, SERIAL NUMBER CFH0100001 THRU CFH0100085 (58) - ATTACHMENTS/HEADERS

1

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

10шт.

2

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

16шт.

3

700130136

CHANNEL

1шт.

4

16-12144

X

PLUG

2шт.

5

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

2шт.

6

700712886

BREATHER

2шт.

7

700714032

GAUGE

- view

2шт.

8

7046113

TEE

- male, run

2шт.

9

700714005

GEARBOX ASSY

GEARBOX ASSEMBLY (S.N. CFH0100001 thru CFH0100060)

1шт.

9

700714005R

REMAN-GEARBOX

Reman for New PN 700714005

1шт.

9

700714005C

CORE-GEARBOX

Return Number

1шт.

700714005

GEARBOX ASSY

GEARBOX ASSEMBLY (S.N. CFH0100061 and later)

1шт.

700714005R

REMAN-GEARBOX

Remanufactured GEARBOX

1шт.

700714005C

CORE-GEARBOX

Return Number, Gearbox

1шт.

10

700714040

GEARBOX ASSY

GEARBOX ASSEMBLY (S.N. CFH0100001 thru CFH0100060)

1шт.

700714040

GEARBOX ASSY

GEARBOX ASSEMBLY (S.N. CFH0100061 and later)

1шт.

10

700714040R

REMAN-GEARBOX

Remanufactured GEARBOX

1шт.

10

700714040C

CORE-GEARBOX

Return Number, Gearbox

1шт.

11

178-244

SET SCREW,Hex Soc, 5/16"-18 x 3/4"

5/16 X 3/4 HDPHSSS

4шт.

12

700130123

SHEAVE

2шт.

13

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

2шт.

14

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

6шт.

15

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

16

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

2шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

18

217-1016

ELBOW,3/8" - 18 Female x 3/8" - 18 Male

1шт.

19

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

20

433-832

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

1/2-13 X 2 RHSNB

1шт.

21

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

9шт.

22

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

23

425-1010

NUT,5/8"-11, G5

2шт.

24

414-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

1/2-20 X 1 C

1шт.

25

2700102

BELT

V-BELT

1шт.

26

51200833

PULLEY

IDLER

1шт.

27

700130125

MOUNTING PARTS

MOUNTING - idler

1шт.

28

700130619

TENSIONER

1шт.

29

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

30

700706548

HEX SOC SCREW

1/2-13 X 2-1/4 HSHCS SPL

8шт.

31

700130132

HUB

WA

1шт.

32

700706587

FLEXIBLE COUPLING

COUPLER - rubber

1шт.

33

457432

WASHER

- special

1шт.

34

700130130

HUB

WA

1шт.

35

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

36

700130134

CHANNEL

ASSEMBLY (includes item 37)

1шт.

37

774372

SPARE PART

1/2-13 FASTNER - self clinching

2шт.

38

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

8шт.

39

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

8шт.

40

425-106

NUT,3/8"-16, Cl 5

8шт.

41

700713399

JOINT

U-JOINT ASM

1шт.
