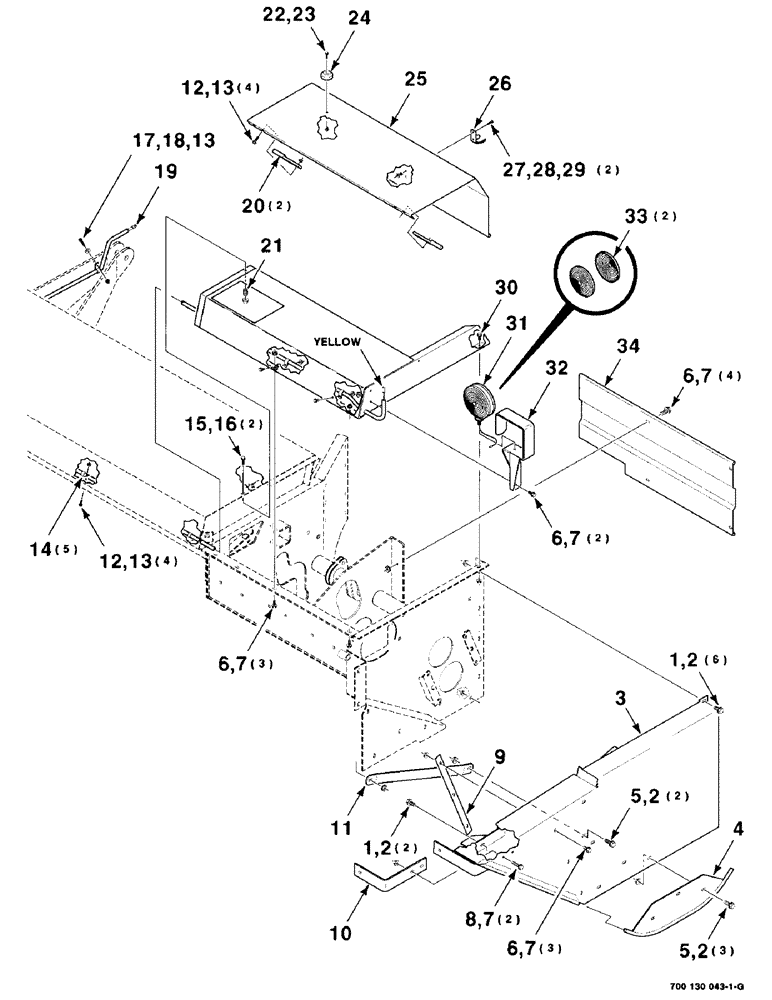

Запчасти Case IH 8850 (7-14) - SHIELDS ASSEMBLY, LEFT, SAFETY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

6шт.

2

231-5146

FLANGE NUT,3/8"-16

11шт.

3

700130223

PANEL

WA - end, left

1шт.

4

700130220

ROD

WA

1шт.

5

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

5шт.

6

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

12шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

14шт.

8

163-41

SCREW,Sl Hex Wshr Hd, 5/16" - 18 x 1 1/4"

5/16-18 X 1-1/4 HWHMS

2шт.

9

700130233

STRAP

1шт.

10

700130232

ANGLE

1шт.

11

700130219

STRAP

1шт.

12

163-16

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

1/4-20 X 3/4 HWHMS

8шт.

13

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

9шт.

14

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

5шт.

15

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

2шт.

16

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

2шт.

17

163-14

SCREW,Hex Wshr Hd, 1/4" - 20 x 1"

1/4-20 X 1 HWHMS

1шт.

18

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

1шт.

19

700713940

HARNESS

- flasher

1шт.

20

700130167

PIN

- pivot

2шт.

21

7758212

SPRING

1шт.

22

700707203

CAPTIVE WASHER SCREW

#12-24 X 3/4 HWHMS

1шт.

23

1954816C1

LOCK NUT

#12-24 LOCKNUT - special

1шт.

24

700708648

BUMPER

RUBBER BUMPER

1шт.

25

700130160

SHIELD

- left

1шт.

26

7025075

BRACKET

1шт.

27

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

#10-24 X 1/2 CRPHMS GR 60M

2шт.

28

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

29

225-14110

NUT,#10-24

2шт.

30

700130154

COVER

WA - left

1шт.

31

199954A1

PACKAGE

LIGHT - flasher (includes item 33)

1шт.

32

700130163

SUPPORT

- light

1шт.

33

700711749

LENS

- flasher

2шт.

34

700130273

SHIELD

- lower

1шт.
