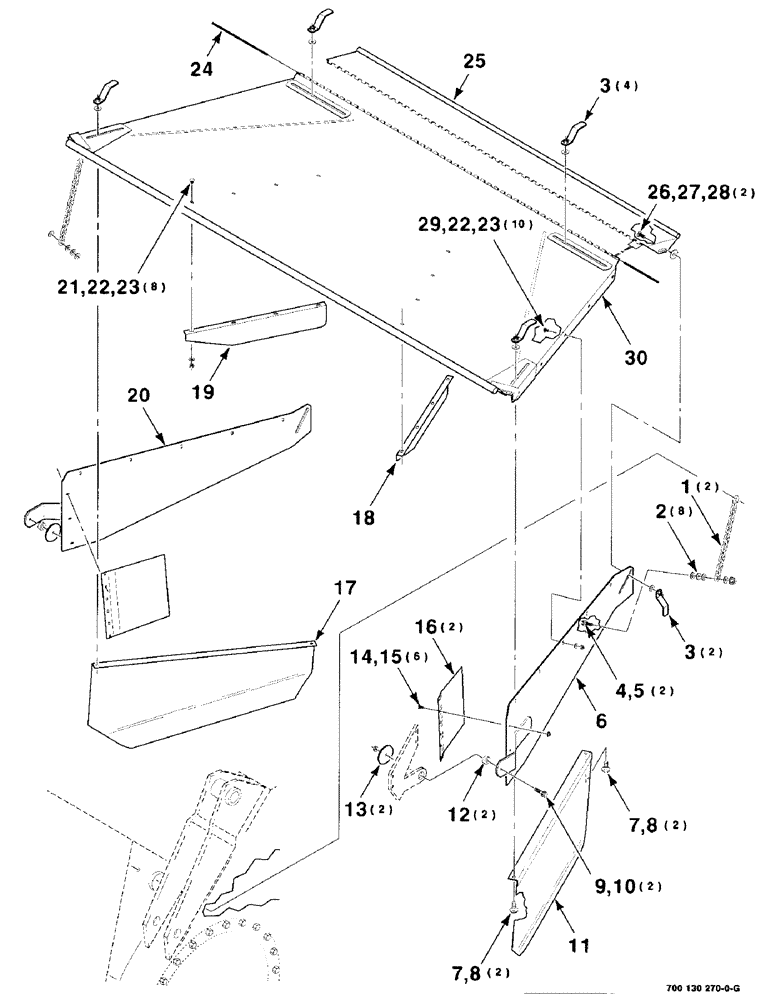

Запчасти Case IH 8850 (7-12) - FORMING SHIELDS ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

1662543

CHAIN (AG)

CHAIN

2шт.

2

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

8шт.

3

6232532

NUT

ASSEMBLY

6шт.

4

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

2шт.

5

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

6

700130263

SUPPORT

WA - left

1шт.

7

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

8

496-81010

WASHER

3/8 HARDENED WIDE PLAIN WASHER

4шт.

9

700711084

BOLT

3/8-16 X 1 1/2 HFS GR8

2шт.

10

231-5146

FLANGE NUT,3/8"-16

2шт.

11

700127393

SHIELD

- forming left

1шт.

12

700108796

SPACER

2шт.

13

382069

WASHER

3/8 WASHER

2шт.

14

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

1/4-20 X 1/2 RHSNB

6шт.

15

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

16

700128253

SHIELD

2шт.

17

700127394

SHIELD

- forming right

1шт.

18

700127395

FIN

- right

1шт.

20

700130264

SUPPORT

WA - right

1шт.

21

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, Short NK, 5/16"-18 x 1/2", G5, Full Thd

8шт.

22

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

18шт.

23

425-105

NUT,5/16"-18, G5

18шт.

24

700130259

PIN

1шт.

25

700130568

DEFLECTOR

- rear

1шт.

26

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSSNB

2шт.

27

495-21050

WASHER,7/16"

2шт.

28

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

29

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

10шт.

30

700130253

SHIELD

WA - top

1шт.
