(7-10) - CURTAIN ASSEMBLY

Запчасти Case IH 8850 (7-10) - CURTAIN ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

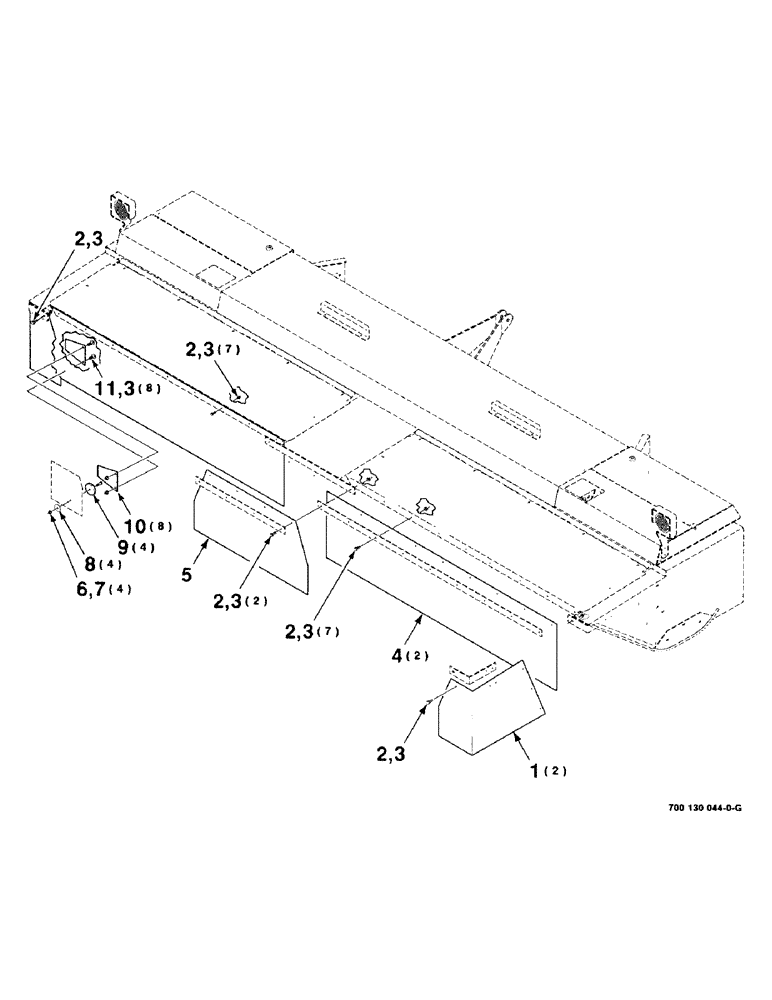

Схема запчастей Case IH 8850 - (7-10) - CURTAIN ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
2
2
4
2
3
1
10
2
3
11
3
6
9
8
3
3
2
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700713427

CURTAIN

- side

2шт.

2

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

18шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

26шт.

4

700713426

CURTAIN

- front

2шт.

5

700711831

CURTAIN

- center

1шт.

6

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

7

231-5146

FLANGE NUT,3/8"-16

4шт.

8

382069

WASHER

3/8 WASHER

4шт.

9

700712189

MAGNET

4шт.

10

700127153

LARGE PLATE

PLATE

8шт.

11

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, Short NK, 5/16"-18 x 1/2", G5, Full Thd

8шт.
