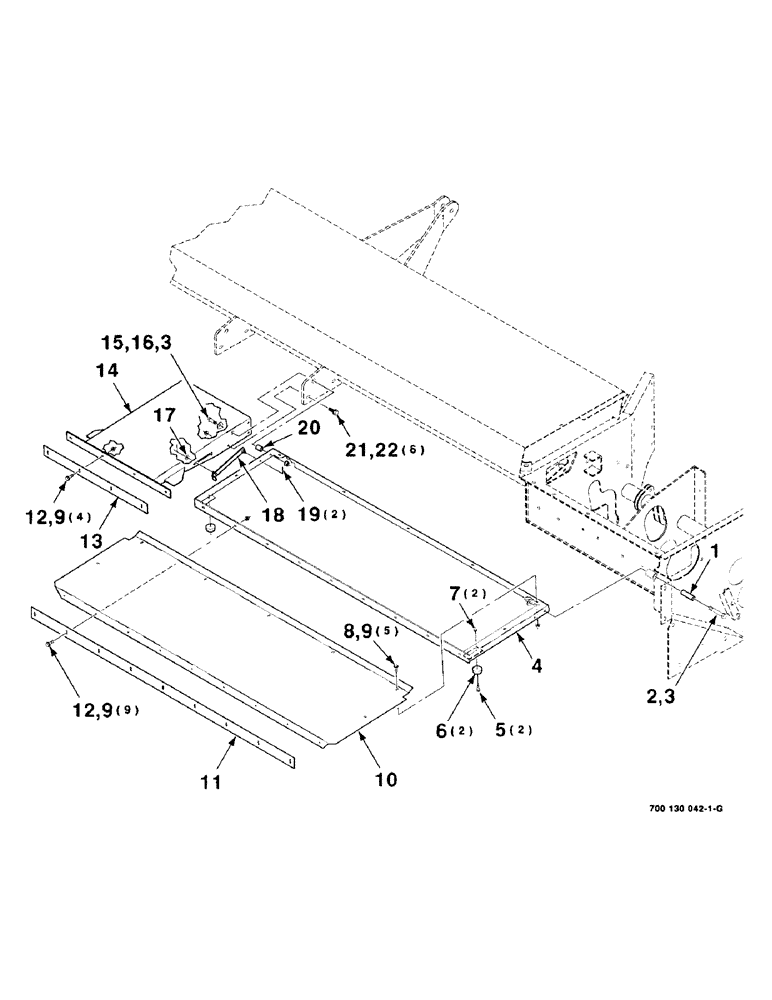

Запчасти Case IH 8850 (7-06) - SHIELDS ASSEMBLY, LEFT, CUTTERBAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

158675

SPACER

1шт.

2

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1/2-13 X 3-1/4 C

1шт.

3

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

4

700130169

SHIELD

SUPPORT WA - shield, front

1шт.

5

700707203

CAPTIVE WASHER SCREW

#12-24 X 3/4 HWHMS

2шт.

6

700708648

BUMPER

- rubber

2шт.

7

1954816C1

LOCK NUT

#12-24 LOCKNUT - special

2шт.

8

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

5шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

18шт.

10

700130172

SHIELD

- front

1шт.

11

700130173

STRAP

1шт.

12

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

13шт.

13

700130174

STRAP

1шт.

14

700127232

SUPPORT

WA - shield, center

1шт.

15

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

16

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

1шт.

17

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

1шт.

18

700127224

LATCH

WA

1шт.

19

432-1012

COTTER PIN,5/32" x 3/4"

5/32" x 3/4"

2шт.

20

6547863

SPACER

1шт.

21

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

6шт.

22

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

6шт.
