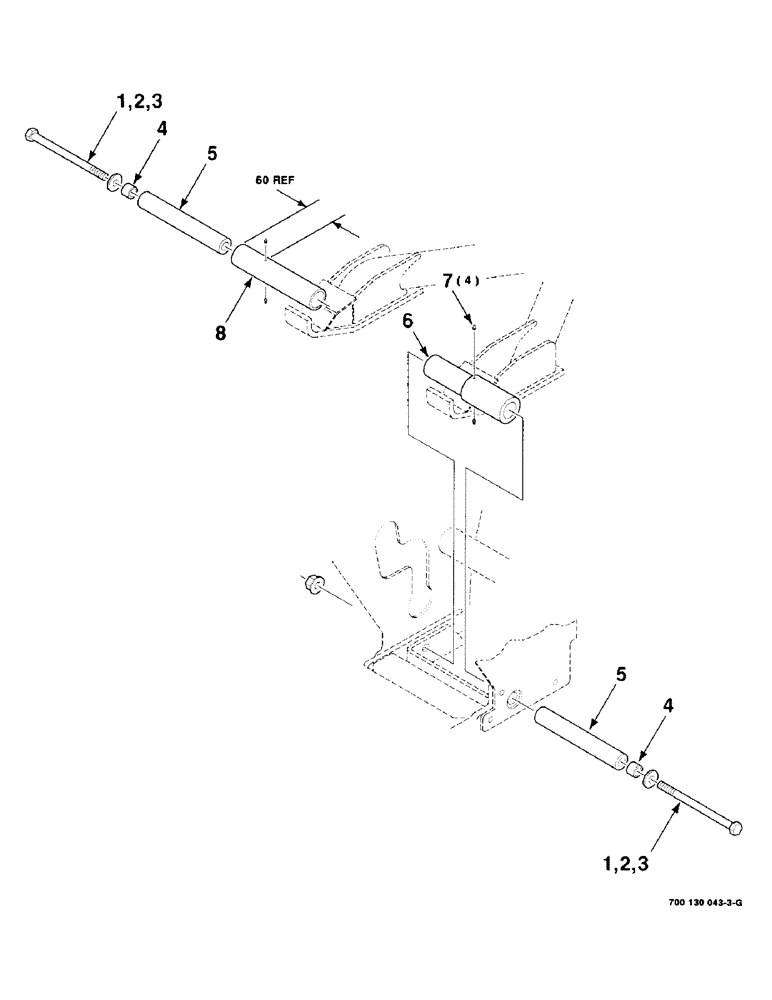

Запчасти Case IH 8850 (7-18) - ATTACHMENT BUSHING ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

426-12192

BOLT,Hex, 3/4" - 10 x 12", Gr 8

3/4-10 X 12B

2шт.

2

705566

WASHER

3/4 HARDENED PLAIN WASHER

2шт.

3

232-53112

FLANGE NUT,Flg, 3/4"-10

3/4-10 HFTLN GR/G

2шт.

4

700130168

SPACER

2шт.

5

700130152

SPACER

2шт.

6

700130166

BUSHING

1шт.

Ref #6 Bushing-Later machines have this bushing on both the right and left sides of the header. This bushing can be installed on the right side in place of Ref # 8 which was used on early machines.

1шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

4шт.

8

700130151

BUSHING

1шт.
