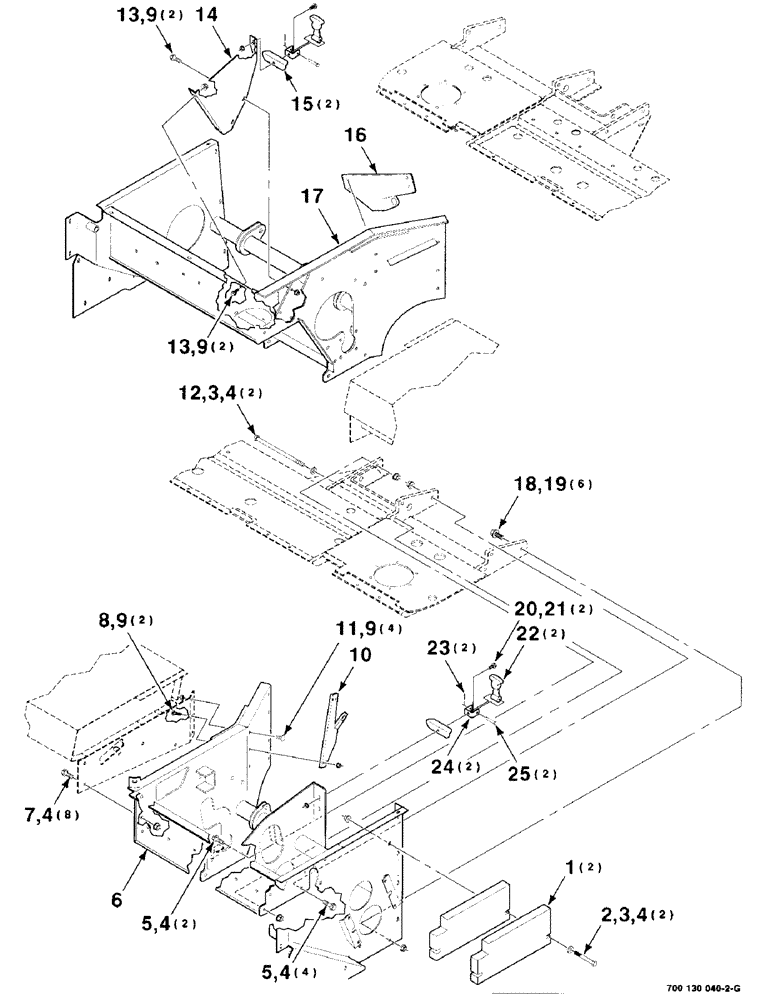

Запчасти Case IH 8850 (7-04) - HEADER FRAME ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

700130183

WEIGHT

2шт.

2

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2-13 X 4 C

2шт.

3

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

4шт.

4

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

18шт.

5

8701237

BOLT

1/2-13 X 1-1/2 HFS GR8

6шт.

6

700130192

PANEL

WA - end, left

1шт.

7

700710984

SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC

1/2-13 X 1-1/4 HFS GR8

8шт.

8

111-361

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/2", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/2", G5

2шт.

9

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

10шт.

10

700130261

SUPPORT

- left

1шт.

11

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

12

7773443

BOLT

1/2-13 X 14 B

2шт.

13

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

14

700130218

SUPPORT

1шт.

15

700130190

ANGLE

2шт.

16

700130262

SUPPORT

- right

1шт.

17

700130193

PANEL

WA - end, right

1шт.

18

700711262

BOLT

5/8-11 X 1-1/2 HFS GR8

6шт.

19

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

6шт.

20

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

22

494307C1

LATCH

HOOK - rubber

2шт.

23

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

24

776674

SUPPORT

ANCHOR

2шт.

25

141-13

CLEVIS PIN,1/4" x 1.594"

1/4 X 1-1/2 CLEVIS PIN

2шт.
