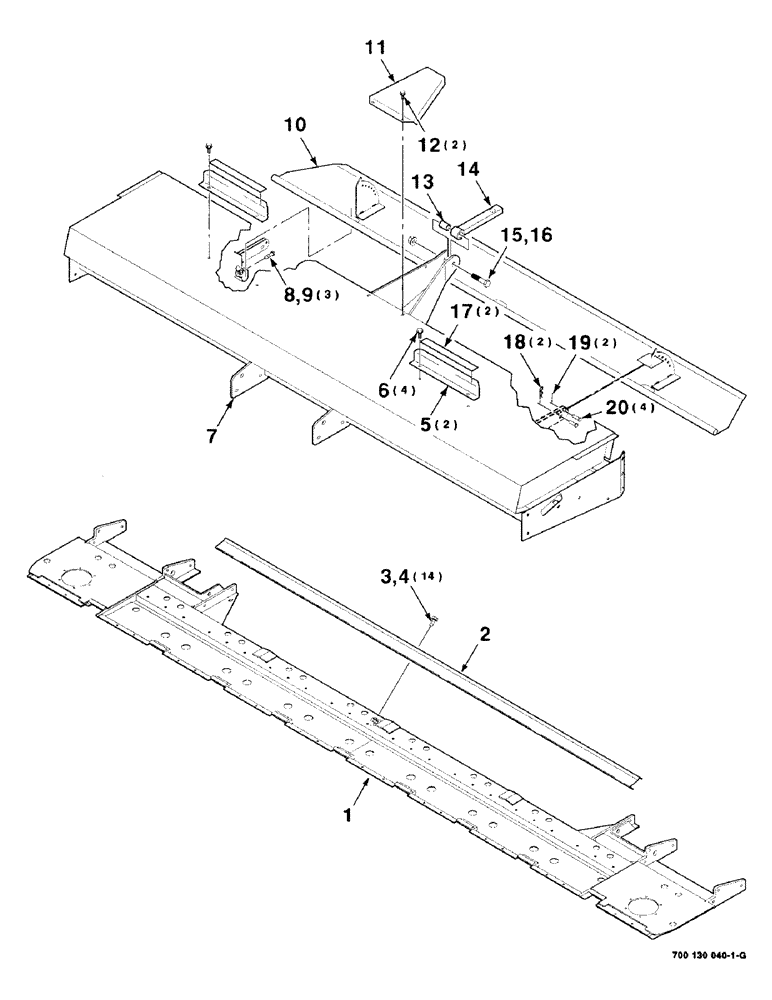

Запчасти Case IH 8850 (7-02) - HEADER FRAME ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

700130210

CRADLE

WA

1шт.

2

700130616

FILLER

PAN - filler

1шт.

3

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

14шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

14шт.

5

700130276

SUPPORT

- hose

2шт.

6

280-5488

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 1/2"

5/16-18 X 1/2 HWHTCTS

4шт.

7

700130175

SUPPORT

WA

1шт.

8

51200165

SCREW,Hex, 1/4"-20 x 1", G5

1/4-20 X 1 C

3шт.

9

425-104

NUT,1/4"-20, Cl 5

3шт.

10

700127309

SHIELD

WA - swath

1шт.

11

700130191

SHIELD

- top

1шт.

12

280-5488

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 1/2"

5/16-18 X 1/2 HWHTCTS

2шт.

13

700114925

BUSHING

1шт.

14

700130184

ARM

WA

1шт.

15

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

3/4-10 X 3-1/4 C

1шт.

16

232-53112

FLANGE NUT,Flg, 3/4"-10

3/4-10 HFTLN GR/G

1шт.

17

700713689

TAPE

- UHMW polyethylene

2шт.

18

S120261

PIN

.148 WIRE HAIR PIN COTTER

2шт.

19

432-1012

COTTER PIN,5/32" x 3/4"

5/32" x 3/4"

2шт.

20

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

3/8 X 1 CLEVIS PIN

4шт.
