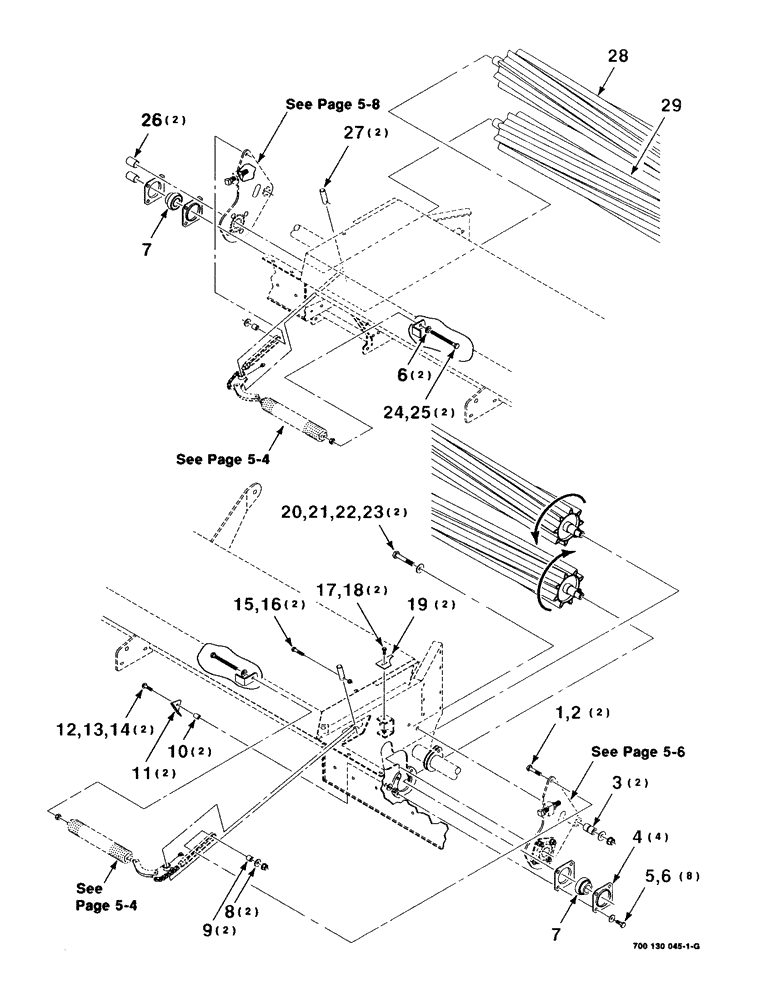

Запчасти Case IH 8850 (5-02) - HAY CONDITIONER ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

2

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

2шт.

3

6834394

BUSHING,17.46mm ID x 31.75mm OD x 53.5mm L

2шт.

4

1307583C1

FLANGED BEARING

4шт.

5

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

6

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

10шт.

7

663559R91

BEARING, BALL,1.5" ID

BEARING - spherical

2шт.

Ref #7-Bearing is sold seperately from the locking collar. For locking collar, order part num. 455112R11

1шт.

8

385625

WASHER

2шт.

9

700108790

SPACER

2шт.

10

6264998

SPACER

2шт.

11

700130137

FILLER

- H/C

2шт.

12

433-540

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/2", Gr 5

5/16-18 X 2-1/2 RHSNB

2шт.

13

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

14

425-105

NUT,5/16"-18, G5

2шт.

15

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

16

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

2шт.

17

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

19

700127123

LARGE PLATE

GAUGE

2шт.

20

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

2шт.

21

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

2шт.

22

700711165

WASHER,17.3mm ID x 45.21mm OD x 4.06mm Thk

5/8 HARDENED WIDE PLAIN WASHER

2шт.

23

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

2шт.

24

873513

BOLT,Hex, 1/2" - 13 x 6", Gr 5, Full Thd

1/2-13 X 6 FTC

2шт.

25

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

26

700713521

COVER

2шт.

27

700118107

PIN,22.23mm OD x 80.01mm L

2шт.

28

700121385

ROLL

WA - H/C, upper

1шт.

29

700115122

ROLLER

ROLL WA - H/C

1шт.
