(3-12) - SPINDLE ASSEMBLY, 700713410 SPINDLE ASSEMBLY COMPLETE

Запчасти Case IH 8850 (3-12) - SPINDLE ASSEMBLY, 700713410 SPINDLE ASSEMBLY COMPLETE (58) - ATTACHMENTS/HEADERS

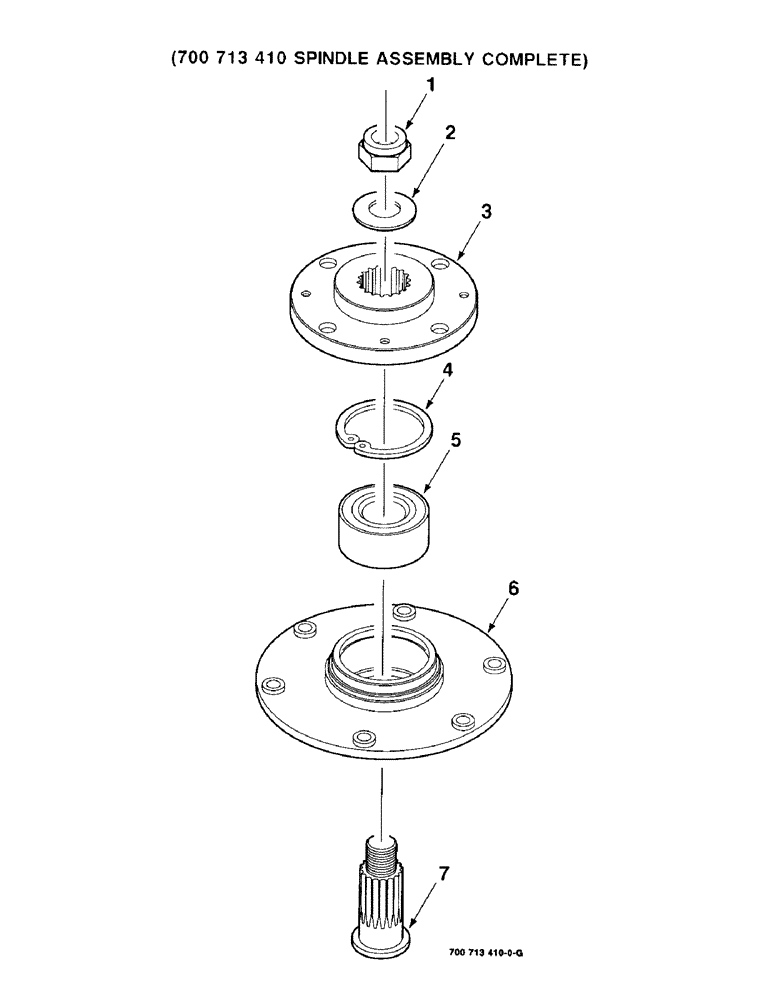

Схема запчастей Case IH 8850 - (3-12) - SPINDLE ASSEMBLY, 700713410 SPINDLE ASSEMBLY COMPLETE (58) - ATTACHMENTS/HEADERS
7
5
2
1
4
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700713410

SPINDLE

ASSEMBLY COMPLETE

1шт.

1

700712408

LOCK NUT

LOCKNUT M24 X 3

1шт.

2

700712409

BELLEVILLE WASHER

WASHER - Belleville

1шт.

3

700713468

FLANGE

1шт.

700713468

FLANGE

- outboard

1шт.

4

700712375

SNAP RING

RING - retaining

1шт.

5

700712402

BALL BEARING

BEARING

1шт.

6

700712400

MOUNTING PARTS

MOUNTING

1шт.

7

700713419

SHAFT

1шт.

This spindle assembly is for the disc unit on either end of the header.

1шт.
