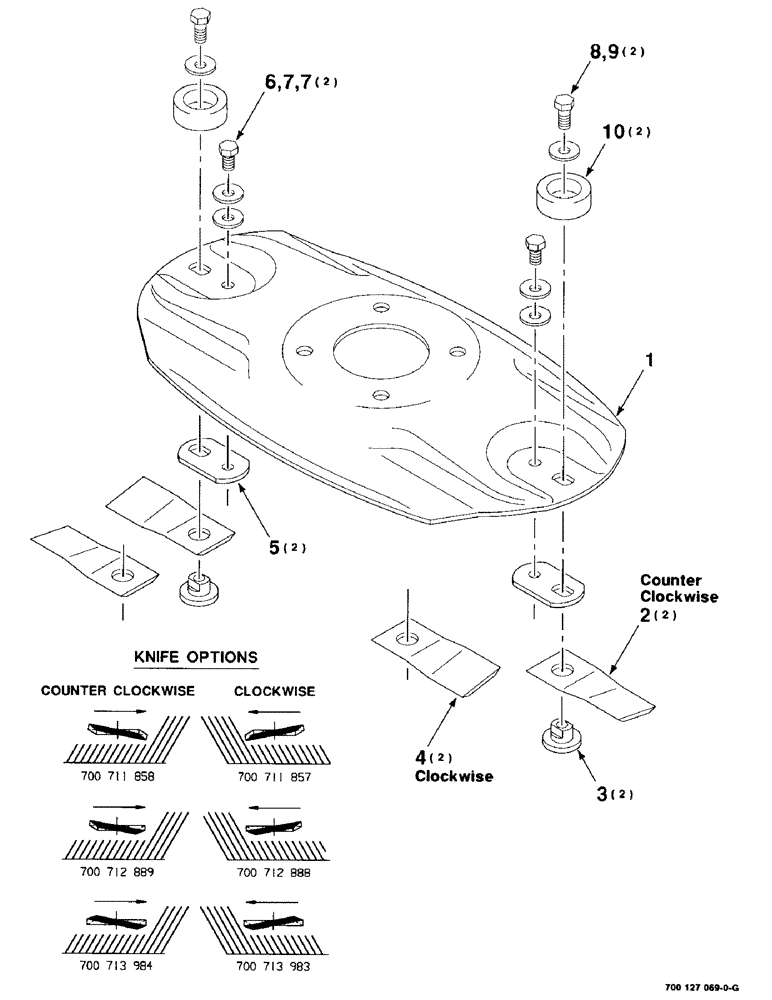

Запчасти Case IH 8850 (3-10) - DISC ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

700727895

DISC

1шт.

Eliminates a spacer and bolt which were used with the prior part# 700127070

1шт.

2

700711858

KNIFE

- counter clockwise

2шт.

700712889

KNIFE

- counter clockwise

2шт.

700713984

KNIFE

- counter clockwise

2шт.

3

700127073

NUT

- knife

2шт.

4

700711857

KNIFE

- clockwise

2шт.

700712888

KNIFE

- clockwise

2шт.

700713983

KNIFE

- clockwise

2шт.

5

700127071

MOUNTING PARTS

MOUNTING - knife

2шт.

6

27431R1

BOLT,Hex, 3/8" - 16 x 1/2", Gr 8

3/8-16 X 1/2 HCNLS GR8 (special)

2шт.

7

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

8

700711964

BOLT,Hex, 7/16" - 14 x , Gr 8

7/16-14 X 1 HCNLS GR8 (special)

2шт.

9

496-21047

WASHER

7/16 HARDENED PLAIN WASHER

2шт.

10

700127072

SHIELD

- bolt, knife

2шт.

NOTE:A NEW 18 DEGREE KNIFE HAS BEEN RELEASED INTO SERVICE PARTS.CLOCKWISE KNIFE IS 700715575.COUNTER CLOCKWISE KNIFE IS 700715576.

1шт.
