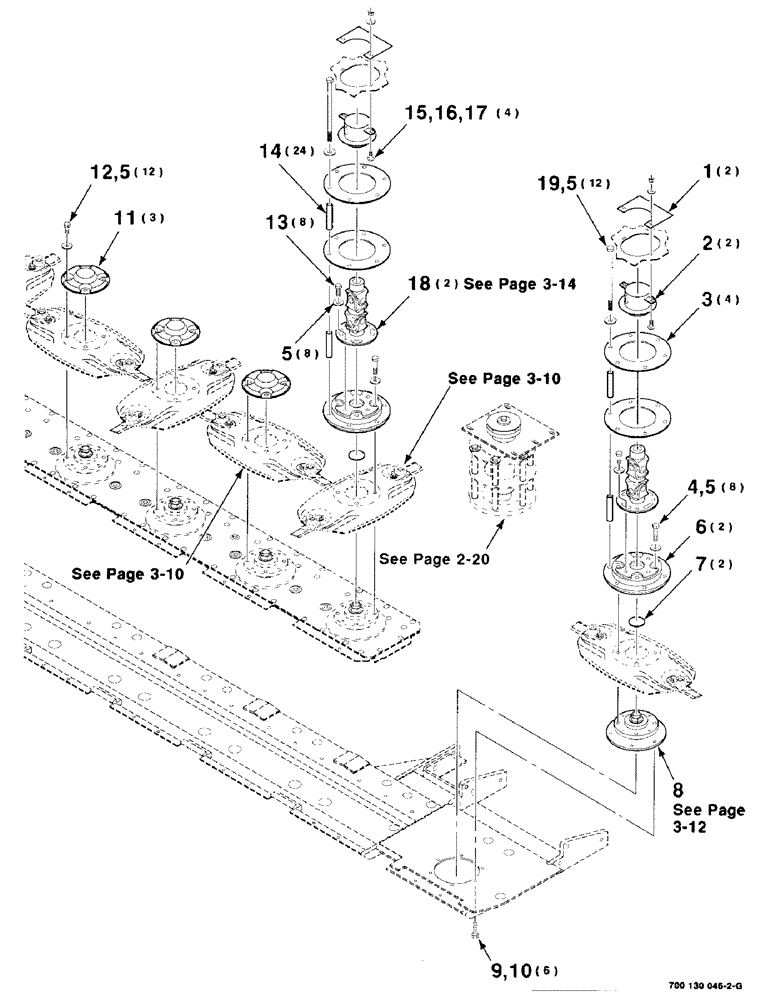

Запчасти Case IH 8850 (3-06) - CUTTER DISC ASSEMBLY, LEFT (58) - ATTACHMENTS/HEADERS

1

700127038

COVER

2шт.

2

700130141

TUBE

WA - shield

2шт.

3

700127061

RING

- cage

4шт.

4

414-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

1/2-20 X 2-1/2 C

8шт.

5

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

40шт.

ref. # 5 should be 705541 per marv hood

1шт.

6

700127059

ADAPTER

- disc drive

2шт.

7

7722440

PLUG

2шт.

8

700713410

SPINDLE

1шт.

9

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

6шт.

10

825-1410

NUT,M10, Cl 8

6шт.

11

700127062

CAP

- disc

3шт.

12

414-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

1/2-20 X 1 C

12шт.

13

514-834

BOLT,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

M12 X 1.25 X 30 C

8шт.

14

6559314

SPACER

24шт.

15

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

16

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

17

425-105

NUT,5/16"-18, G5

4шт.

18

700713411

FLEXIBLE JOINT

U-JOINT

2шт.

19

413-8144

BOLT,Hex, 1/2" - 13 x 9", Gr 5

1/2-13 X 9 B

12шт.
