(3-04) - CUTTER BAR ASSEMBLY, 700713464 CUTTER BAR ASSEMBLY COMPLETE

Запчасти Case IH 8850 (3-04) - CUTTER BAR ASSEMBLY, 700713464 CUTTER BAR ASSEMBLY COMPLETE (58) - ATTACHMENTS/HEADERS

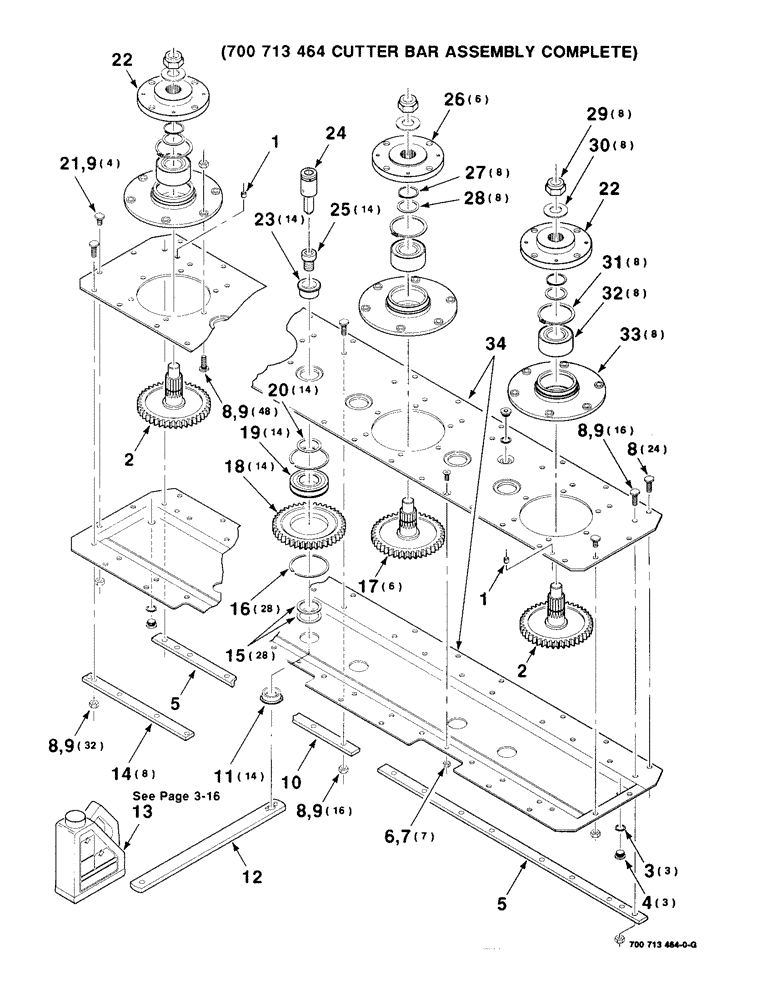

Схема запчастей Case IH 8850 - (3-04) - CUTTER BAR ASSEMBLY, 700713464 CUTTER BAR ASSEMBLY COMPLETE (58) - ATTACHMENTS/HEADERS
8
29
22
9
27
33
5
21
22
26
30
8
12
17
5
8
9
18
11
2
19
1
3
23
10
31
9
8
9
32
28
34
8
1
14
2
6
7
22
13
16
9
25
15
4
24
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700713464

CUTTER BAR

ASSEMBLY COMPLETE; L = 135.35"

1шт.

1

700712395

PIN

- spring M10 x 12

2шт.

2

700713466

GEAR

- outboard

2шт.

3

700712393

COPPER WASHER

WASHER

3шт.

4

700712394

PLUG

3шт.

5

700712399

REINFORCEMENT

- back

2шт.

6

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

BOLT, Hex, M8 x 20, 10.9, Full Thd

7шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

7шт.

8

700712401

SCREW

M10 X 1.5 X 30 SCREW

136шт.

9

825-1410

NUT,M10, Cl 8

116шт.

10

700712396

REINFORCEMENT

- back

1шт.

11

700712970

PIN

14шт.

12

700128266

OPEN END WRENCH

WRENCH - spanner

1шт.

13

700128270

RESERVOIR

BOTTLE ASSEMBLY

1шт.

14

700712421

BAFFLE

REINFORCEMENT - front

8шт.

15

700712412

SHIM

40.3 X 2.5

28шт.

16

700712415

RING, SNAP

RING - retaining

28шт.

17

700713467

GEAR

- inboard

6шт.

18

700712420

GEAR

14шт.

19

700712419

THRUST BEARING,40mm ID x 80mm OD x 18mm W

BEARING

14шт.

20

700712418

SHIM

40.3 X 1.0

14шт.

21

700712410

SCREW

M10 X 1.5 X 19 SCREW

4шт.

22

700713468

FLANGE

- outboard

2шт.

23

700712969

PIN

14шт.

24

700127414

OPEN END WRENCH

HEX KEY SOCKET

1шт.

25

700712417

BOLT,M20 x 30mm

M20 X 2.5 X 30 BOLT

14шт.

26

700713469

FLANGE

- inboard

6шт.

27

700713471

RING

- retaining

8шт.

28

700713470

SHIM

8шт.

29

700712408

LOCK NUT

LOCKNUT M24 X 3

8шт.

30

700712409

BELLEVILLE WASHER

WASHER - Belleville

8шт.

31

700712375

SNAP RING

RING - retaining

8шт.

32

700714310

BALL BEARING,34.976 mm ID x 72.043 mm OD x 33 mm

BEARING

8шт.

33

700712400

MOUNTING PARTS

MOUNTING

8шт.

34

700712397

CASING

1шт.
