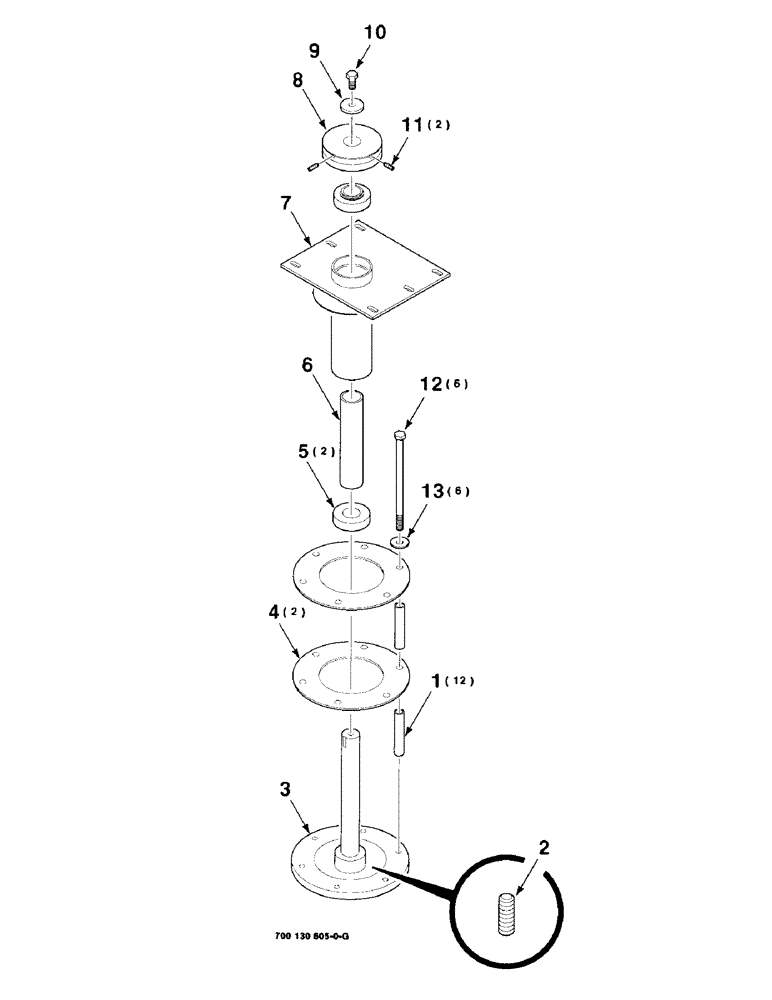

Запчасти Case IH 8850 (2-20) - HEADER DRIVE CAGE ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

6559314

SPACER

12шт.

2

83-616

SET SCREW,Hex Soc, 3/8"-16 x 1"

3/8-16 X 1 CPHSSS

1шт.

3

700130606

HUB

ASSEMBLY (includes item 2)

1шт.

4

700127061

RING

- cage

2шт.

5

611921R92

BEARING, ROLLER, CYL,34.92mm ID x 72mm OD x 19mm W

- cylindrical

2шт.

6

700130615

TUBE

- spacer

1шт.

7

700130610

SUPPORT

WA

1шт.

8

700130123

SHEAVE

(S.N. 850H00101-850H00217)

1шт.

700130652

SHEAVE

(S.N. 858H00218 & later) Subs to p/n 700166053 (See Ref. 11 for 3/8 set screw)

1шт.

9

282269

WASHER

1шт.

10

414-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

1/2-20 X 1 C

1шт.

11

178-244

SET SCREW,Hex Soc, 5/16"-18 x 3/4"

5/16 X 3/4 HDPHSSS NP

2шт.

80423

SET SCREW,Hex Soc, 3/8"-16 x 3/4"

3/8-16 x 3/4 HDP

2шт.

12

413-8144

BOLT,Hex, 1/2" - 13 x 9", Gr 5

1/2-13 X 9 B

6шт.

13

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

6шт.
