(2-18) - GEARBOX ASSEMBLY, OUTER, 700714005 GEARBOX ASSY. COMPLETE, SERIAL NUMBER CFH0100061 AND LATER

Запчасти Case IH 8850 (2-18) - GEARBOX ASSEMBLY, OUTER, 700714005 GEARBOX ASSY. COMPLETE, SERIAL NUMBER CFH0100061 AND LATER (58) - ATTACHMENTS/HEADERS

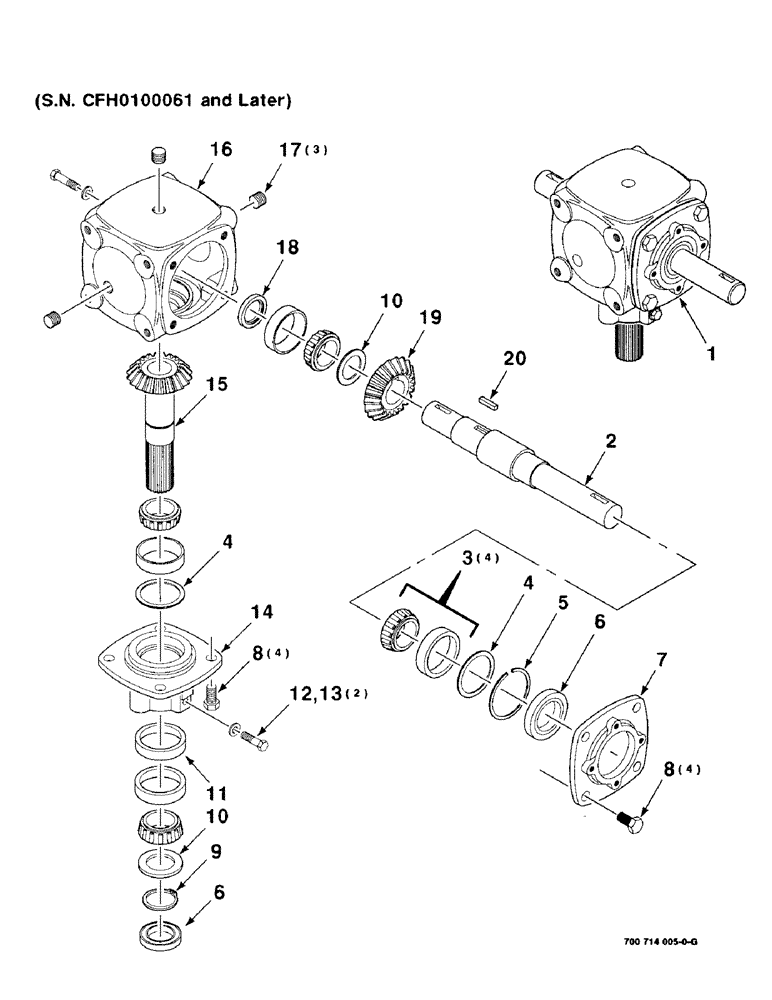

Схема запчастей Case IH 8850 - (2-18) - GEARBOX ASSEMBLY, OUTER, 700714005 GEARBOX ASSY. COMPLETE, SERIAL NUMBER CFH0100061 AND LATER (58) - ATTACHMENTS/HEADERS
3
10
8
19
2
16
13
10
11
6
20
6
4
12
9
15
5
17
14
18
1
4
8
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700714005

GEARBOX ASSY

GEARBOX ASSEMBLY COMPLETE

1шт.

1

700714005R

REMAN-GEARBOX

Remanufactured GEARBOX

1шт.

1

700714005C

CORE-GEARBOX

Return Number, Gearbox

1шт.

2

700713544

SHAFT

1шт.

3

700712361

BEARING,35mm ID x 72mm OD x 24.25mm W

AND CUP

4шт.

4

700712378

SHIM

PACK 71.7 MM

2шт.

5

700712375

SNAP RING

1шт.

6

700712389

OIL SEAL

- oil

2шт.

7

700714120

COVER

- gearbox

1шт.

8

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

8шт.

9

700712388

RING

- retaining

1шт.

10

700712360

SHIM KIT

SHIM PACK 48 MM

2шт.

11

700713541

SPACER

1шт.

12

700714123

BOLT

M8 X 10 BOLT

2шт.

13

700714122

WASHER

- copper

2шт.

14

700713543

EXTENSION

1шт.

15

700713542

SHAFT

- pinion

1шт.

16

700713539

CASTING

CASING

1шт.

17

700712200

PLUG

3шт.

18

700712392

OIL SEAL

- oil

1шт.

19

700713536

GEAR

Z19 M5

1шт.

20

700713540

KEY

10 X 8 X 30 KEY - straight

1шт.
