(2-16) - GEARBOX ASSEMBLY, INNER, 700714040 GEARBOX ASSY. COMPLETE, SERIAL NUMBER CFH0100061 AND LATER

Запчасти Case IH 8850 (2-16) - GEARBOX ASSEMBLY, INNER, 700714040 GEARBOX ASSY. COMPLETE, SERIAL NUMBER CFH0100061 AND LATER (58) - ATTACHMENTS/HEADERS

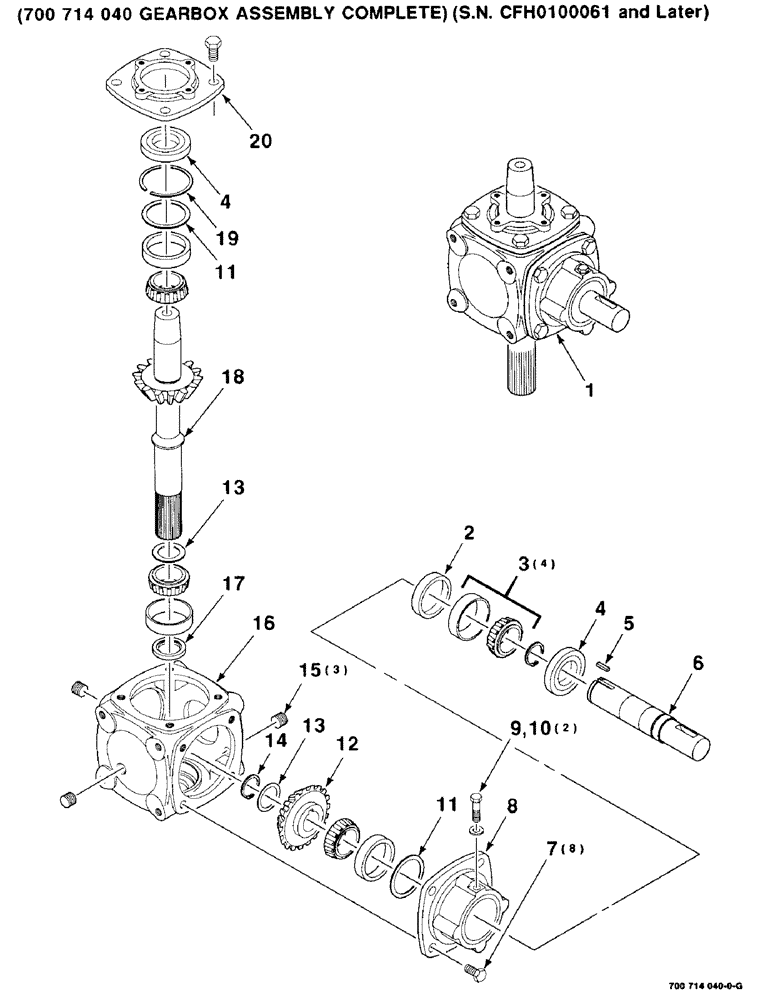

Схема запчастей Case IH 8850 - (2-16) - GEARBOX ASSEMBLY, INNER, 700714040 GEARBOX ASSY. COMPLETE, SERIAL NUMBER CFH0100061 AND LATER (58) - ATTACHMENTS/HEADERS
9
11
13
20
7
19
14
1
3
15
18
8
4
16
4
17
2
12
10
13
5
6
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700714040

GEARBOX ASSY

GEARBOX ASSEMBLY COMPLETE

1шт.

1

700714040R

REMAN-GEARBOX

Remanufactured GEARBOX

1шт.

1

700714040C

CORE-GEARBOX

Return Number, Gearbox

1шт.

2

700713541

SPACER

1шт.

3

700712361

BEARING,35mm ID x 72mm OD x 24.25mm W

ASSEMBLY - tapered

4шт.

4

700712389

OIL SEAL

- oil

2шт.

5

700713547

KEY

10 X 8 X 25 KEY - parallel

1шт.

6

700713546

SHAFT

1шт.

7

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

8шт.

8

700713543

EXTENSION

1шт.

9

700714123

BOLT

M8 X 10 BOLT, class 8.8

2шт.

10

700714122

WASHER

M8 COPPER WASHER

2шт.

11

700712378

SHIM

PACK 71.7 MM

2шт.

12

700713536

GEAR

Z19 M5

1шт.

13

700712360

SHIM KIT

SHIM PACK 48.0 MM

2шт.

14

700712388

RING

SNAP RING

1шт.

15

700712200

PLUG

3шт.

16

700713539

CASTING

CASING T2

1шт.

17

700712392

OIL SEAL

- oil

1шт.

18

700713548

SHAFT

- pinion

1шт.

19

700712375

SNAP RING

1шт.

20

700714120

COVER

- gearbox

1шт.
