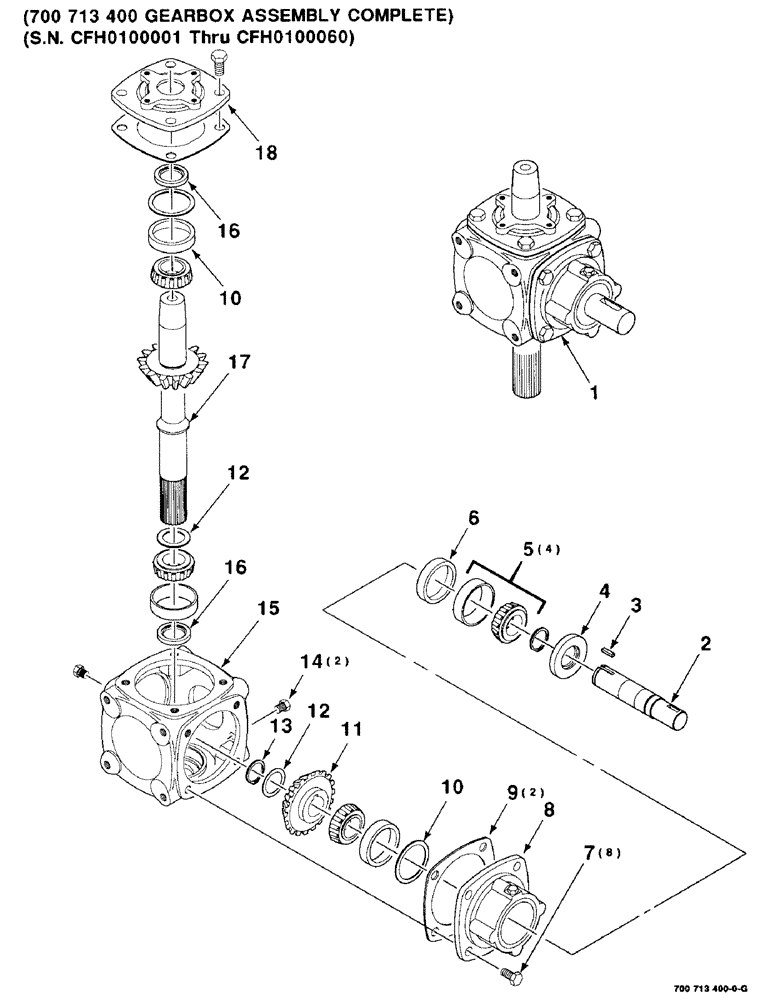

Запчасти Case IH 8850 (2-12) - GEARBOX ASSEMBLY, INNER, 700713400 GEARBOX ASSY. COMPLETE, SERIAL NUMBER CFH0100001 THRU CFH0100060 (58) - ATTACHMENTS/HEADERS

1

700714040

GEARBOX ASSY

GEARBOX ASSEMBLY COMPLETE

1шт.

1

700714040R

REMAN-GEARBOX

Remanufactured GEARBOX

1шт.

1

700714040C

CORE-GEARBOX

Return Number, Gearbox

1шт.

2

700713546

SHAFT

1шт.

3

700713547

KEY

10 X 8 X 25 KEY - straight

1шт.

4

700712389

OIL SEAL

- oil

1шт.

5

700712361

BEARING,35mm ID x 72mm OD x 24.25mm W

ASSEMBLY - tapered

4шт.

6

700713541

SPACER

1шт.

7

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

8шт.

8

700713543

EXTENSION

1шт.

9

700713534

GASKET

2шт.

10

700712378

SHIM

PACK 71.5 MM

2шт.

11

700713536

GEAR

Z19 M5

1шт.

12

700712360

SHIM KIT

SHIM PACK 48.0 MM

2шт.

13

700712388

RING

- retaining

1шт.

14

700712384

PLUG

2шт.

15

700713539

CASTING

CASING T2

1шт.

16

700712392

OIL SEAL

- oil

2шт.

17

700713548

SHAFT

- pinion

1шт.

18

700712387

COVER

- gearbox

1шт.
