(2-10) - U-JOINT ASSEMBLY, GEARBOX, 700713399 U-JOINT ASSEMBLY COMPLETE

Запчасти Case IH 8850 (2-10) - U-JOINT ASSEMBLY, GEARBOX, 700713399 U-JOINT ASSEMBLY COMPLETE (58) - ATTACHMENTS/HEADERS

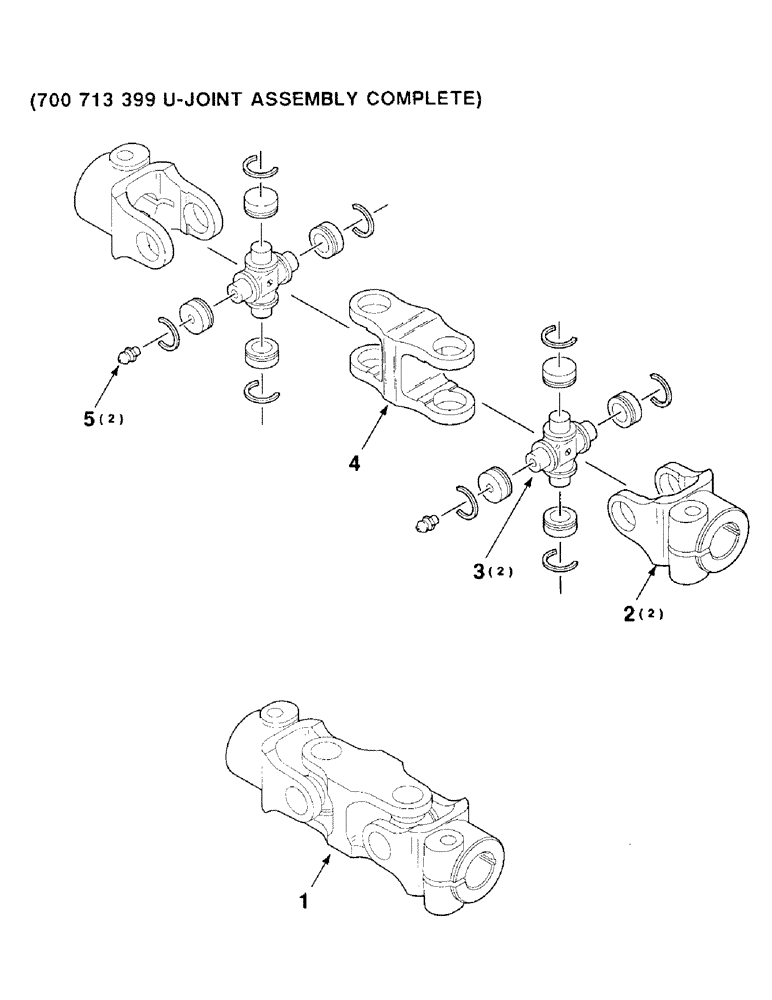

Схема запчастей Case IH 8850 - (2-10) - U-JOINT ASSEMBLY, GEARBOX, 700713399 U-JOINT ASSEMBLY COMPLETE (58) - ATTACHMENTS/HEADERS
3
1
5
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700713399

JOINT

U-JOINT ASSEMBLY

1шт.

2

700705535

YOKE

2шт.

3

700711843

FLEXIBLE JOINT

CROSS AND BEARING KIT

2шт.

4

757427

FORK

DOUBLE YOKE

1шт.

5

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

2шт.

Выбрано товаров: 5
