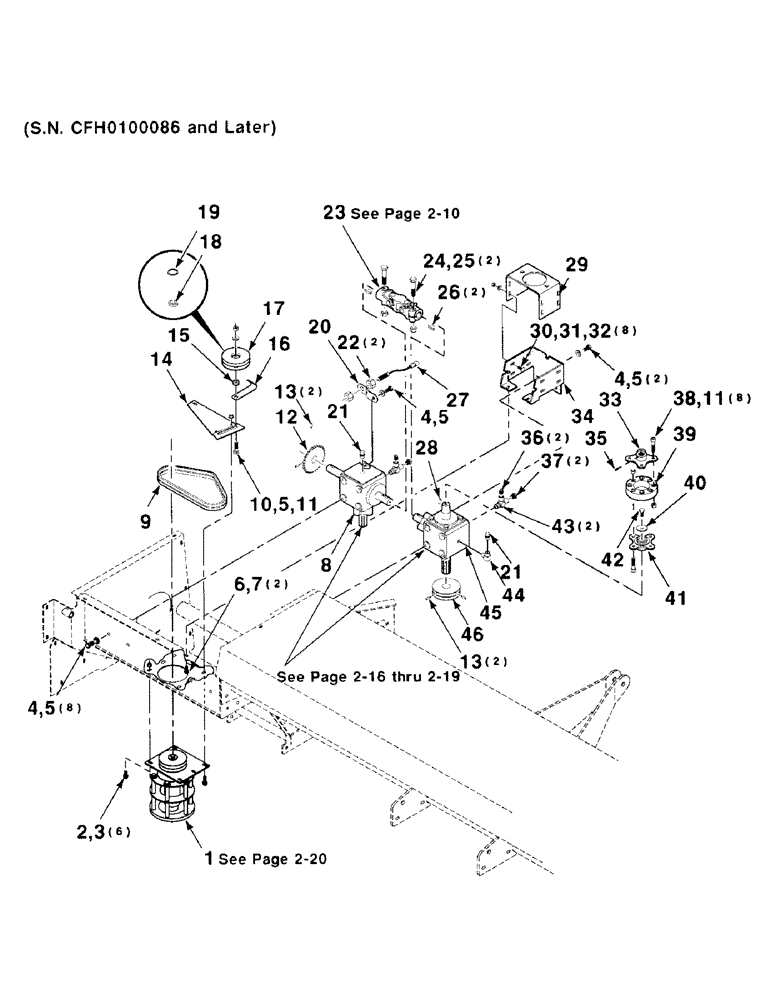

Запчасти Case IH 8850 (2-08) - HEADER DRIVE ASSEMBLY, RIGHT, SERIAL NUMBER CFH0100086 AND LATER (58) - ATTACHMENTS/HEADERS

1

700130605

CAGE ASSEMBLY

1шт.

2

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

6шт.

3

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

6шт.

4

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

11шт.

5

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

12шт.

6

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

2шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

8

700714005

GEARBOX ASSY

GEARBOX

1шт.

8

700714005R

REMAN-GEARBOX

Remanufactured GEARBOX

1шт.

8

700714005C

CORE-GEARBOX

Return Number, Gearbox

1шт.

9

700714715

SET OF BELTS,891.50 mm L

Matched, V-Belt 891.50 mm L

1шт.

10

433-836

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

1/2-13 X 2-1/4 RHSNB

1шт.

11

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

9шт.

12

51200192

SPROCKET

40B30

1шт.

13

178-244

SET SCREW,Hex Soc, 5/16"-18 x 3/4"

5/16 X 3/4 HDPHSSS NP

4шт.

14

700130654

MOUNTING PARTS

MOUNTING IDLER, RIGHT

1шт.

15

378604

SPACER

1шт.

16

700130619

TENSIONER

1шт.

17

700130650

FRONT IDLER

IDLER - assembly (includes items 18 & 19)

1шт.

18

611928R91

BALL BEARING,13 mm ID x 40 mm OD x 18 mm

1шт.

19

100-21156

SNAP RING,1.562", Int, #156

Ring, Snap, 1.562", Int, #156

1шт.

20

700130038

STRAP

1шт.

21

700712886

BREATHER

2шт.

22

425-1512

JAM NUT,Jam, 3/4"-10, G5

3/4-16 HJN GR2

2шт.

23

700713399

JOINT

U-JOINT ASM

1шт.

24

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

25

425-1010

NUT,5/8"-11, G5

2шт.

26

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

2шт.

27

700706398

SENSOR

PTO SENSOR

1шт.

28

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

29

700130134

CHANNEL

ASSEMBLY

1шт.

30

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

8шт.

31

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

8шт.

32

425-106

NUT,3/8"-16, Cl 5

8шт.

33

700130132

HUB

WA

1шт.

34

700130136

CHANNEL

1шт.

35

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

36

16-12144

X

PLUG

2шт.

37

700714032

GAUGE

- view

2шт.

38

700706548

HEX SOC SCREW

1/2-13 X 2-1/4 HSHCS SPL

8шт.

39

700706587

FLEXIBLE COUPLING

COUPLER - rubber

1шт.

40

457432

WASHER

- special

1шт.

41

700130130

HUB

WA

1шт.

42

414-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

1/2-20 X 1 C

1шт.

43

7046113

TEE

- male, run

2шт.

44

217-1016

ELBOW,3/8" - 18 Female x 3/8" - 18 Male

1шт.

45

700714040

GEARBOX ASSY

GEARBOX

1шт.

45

700714040R

REMAN-GEARBOX

Remanufactured GEARBOX

1шт.

45

700714040C

CORE-GEARBOX

Return Number, Gearbox

1шт.

46

700130652

SHEAVE

1шт.
