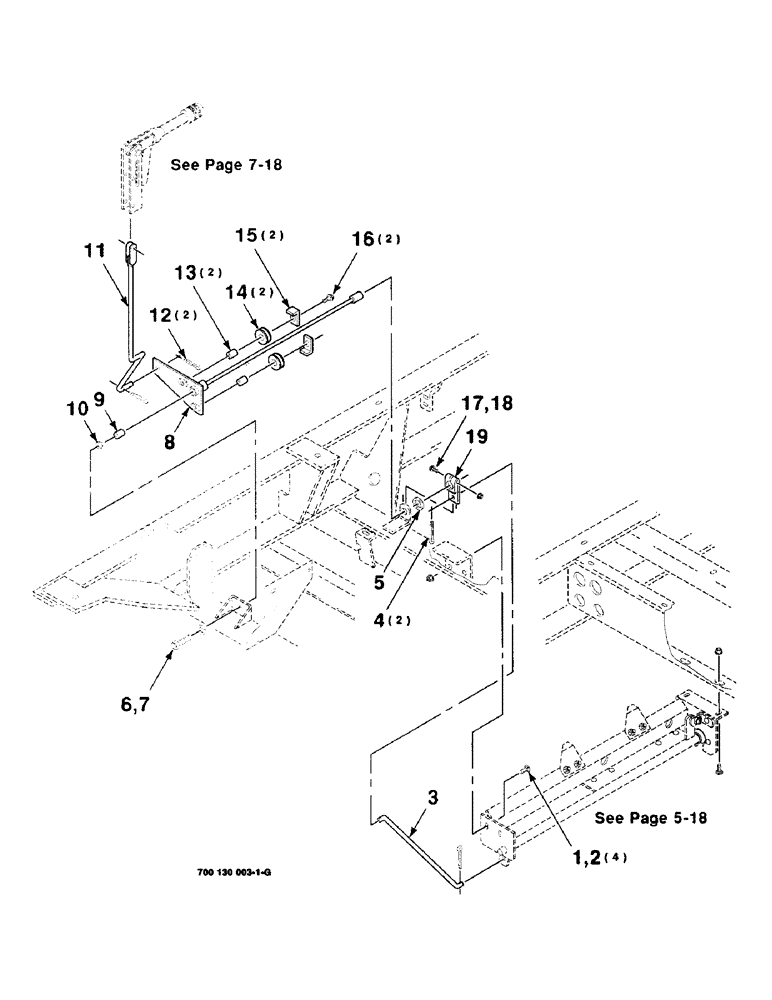

Запчасти Case IH 8850 (05-16) - BRAKE LOCK ASSEMBLY (07) - BRAKES

1

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

4шт.

2

231-5146

FLANGE NUT,3/8"-16

4шт.

3

700115672

ROD

1шт.

4

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

5

852988

NYLON BEARING

BUSHING - nylon

1шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

7

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

700115654

ROD

WA

1шт.

9

700115682

BUSHING

1шт.

10

185062R1

BUSHING

BEARING - nylon w/flange

1шт.

11

700115676

ROD

WA - brake

1шт.

12

432-816

COTTER PIN,1/8" x 1"

PIN SPLIT (COTTER), 1/8" x 1"

2шт.

13

6605752

SPACER

2шт.

14

6605737

ROLLER

2шт.

15

6196885

GUIDE

- cable

2шт.

16

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

17

7883358

SCREW,Hex Washer, 5/16" - 18 x 1 1/2"

5/16-18 X 1-1/2 HWHMS

1шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

1шт.

19

700115684

STRAP

1шт.
