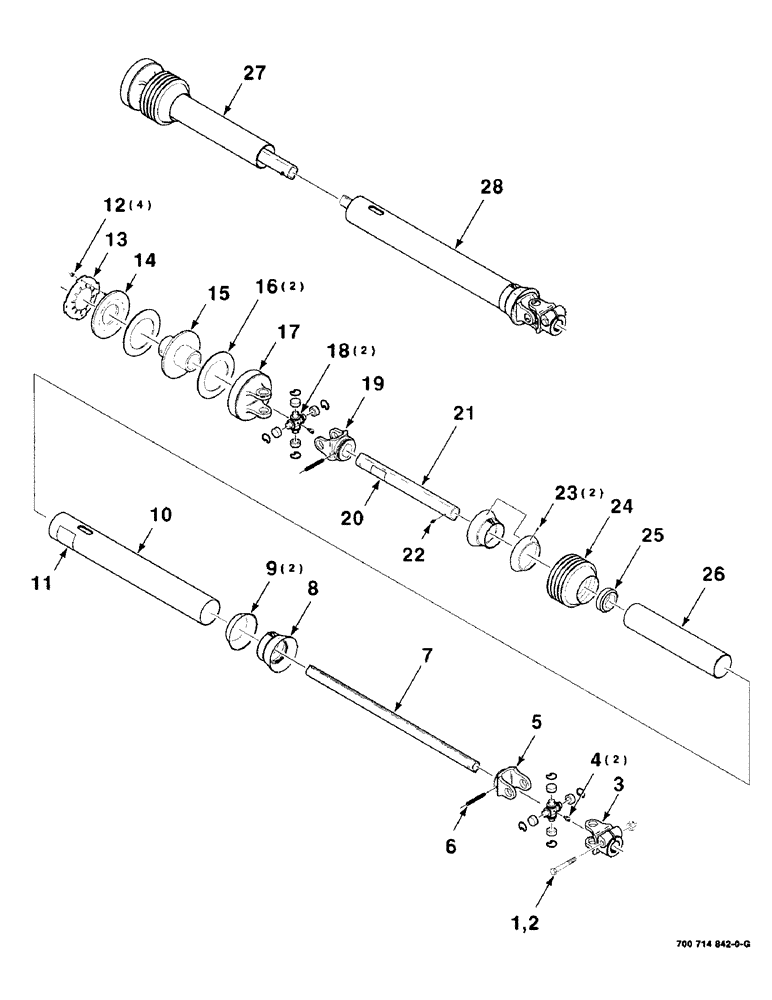

Запчасти Case IH 8850 (09-26) - U-JOINT ASSEMBLY, P/N 700714922 (06) - POWER TRAIN

1

700714922

BOLT

M12 X 1.75 X 75 C

1шт.

2

7704695

NUT

M12 X 1.75 HTLN

1шт.

3

700714924

YOKE

1" WITH 1/4 KEY

1шт.

4

700713986

LUBE NIPPLE,67.5 Degree, M8

M8 X 67-1/2 DEGREE ZERK

2шт.

5

700714925

YOKE

INBOARD YOKE

1шт.

6

31222R1

PIN,M10 x 65, Coiled

- spring 10 x 65

1шт.

7

700714926

PROFILE

- inner

1шт.

8

1281450C1

RING

BEARING - ring

1шт.

9

700714932

RING

GUARD RING

2шт.

10

700714929

TUBE

SHIELD - outer, tube

1шт.

11

80672C1

DECAL

- outer

1шт.

12

700706784

HARDWARE

M8 HEX NUT DIN 6330

4шт.

13

700706767

BELLEVILLE SPRING

1шт.

14

700706695

PLATE, THRUST

THRUST PLATE

1шт.

15

700714936

HUB

1шт.

16

7807977

DISC

FRICTION DISC

2шт.

17

700714935

HOUSING

CLUTCH HOUSING

1шт.

18

87369C1

U-JOINT SPIDER

CROSS & BEARING KIT

2шт.

19

700707543

JOINT ASSY.

YOKE - inboard

1шт.

20

700708583

DECAL

- inner

1шт.

21

700714927

PROFILE

& SLEEVE WA

1шт.

22

700707556

NIPPLE, LUBE

3/16 DRIVE ZERK

1шт.

23

700714614

SCREW

2шт.

24

700714609

SHIELD

- cone

1шт.

25

700707550

SUPPORT

BEARING - support

1шт.

26

700714930

TUBE

SHIELD - inner, tube

1шт.

27

700714934

YOKE

INPUT - half

1шт.

28

700714933

YOKE

OUTPUT - half

1шт.
