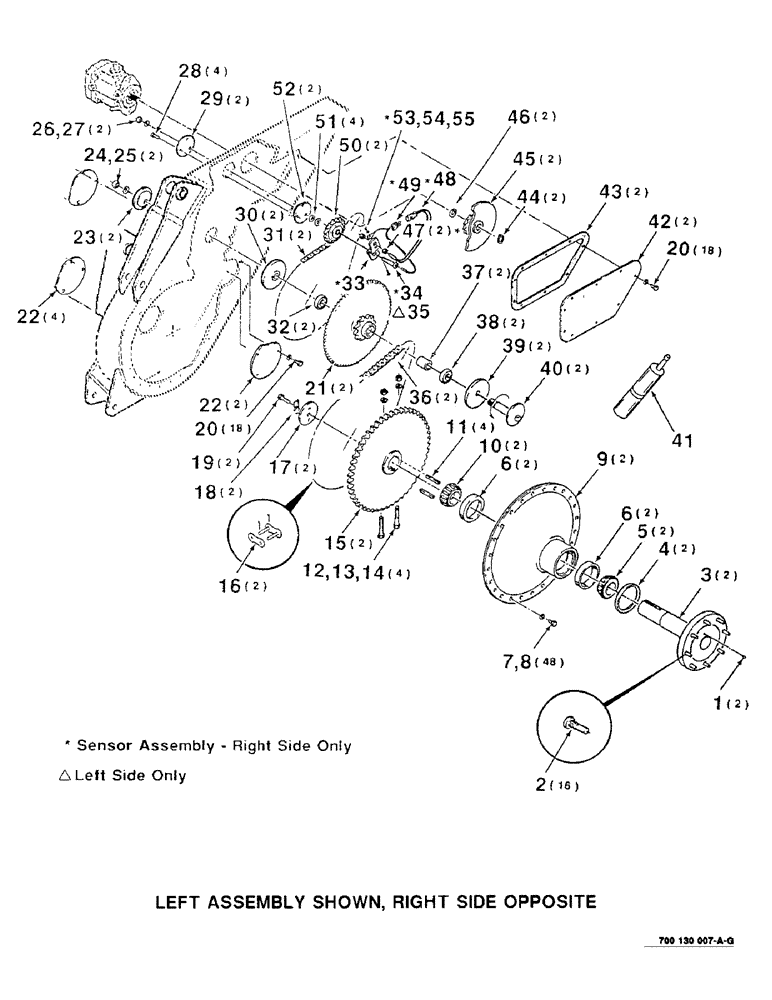

Запчасти Case IH 8850 (06-02) - CHAIN CASE AND AXLE ASSEMBLY (06) - POWER TRAIN

1

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

2шт.

2

566206R2

BOLT,5/8" - 18 x 2.38", Class 8

5/8-18 X 2-3/8 WHEEL BOLT

16шт.

3

700122695

AXLE

- hub

2шт.

4

A30102

OIL SEAL

SEAL - grease

2шт.

5

25695HO

ROLLER BEARING,66.688mm ID x 30.124mm

BEARING - cone, outer

2шт.

6

22396V

BEARING, CUP,112.739mm OD x 30.37mm W

BEARING CUP

4шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

48шт.

8

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

48шт.

9

6269773

HUB

HOUSING - axle

2шт.

10

ST2116

TAPERED BEARING,2.375" ID x 4.4375" OD x 1.1875" W

BEARING - cone, inner

1шт.

11

6269765

KEY

3/8 X 3/8 X 3 KEY - special

4шт.

12

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

3/4-10 X 4-1/2 C

4шт.

13

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

14

425-1012

NUT,3/4"-10, G5

3/4-10 H

4шт.

15

700115769

SPROCKET

80T

2шт.

16

241-4418

LINK

#80 CONNECTOR LINK

2шт.

17

6269757

WASHER

- special

2шт.

18

7893910

PLATE

- lock

2шт.

19

414-1224

BOLT,Hex, 3/4" - 16 x 1-1/2", Gr 5

3/4-16 X 1-1/2 C

2шт.

20

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

36шт.

21

7850654

SPROCKET ASSY.

SPROCKET - jackshaft

2шт.

22

235515

COVER

PLATE - cover

6шт.

23

51200235

CAM

- cap

2шт.

24

492-11088

LOCK WASHER,7/8"

7/8"

2шт.

25

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

26

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

27

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

28

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

29

51200200

PROTECTIVE COVER

CAM - cover

2шт.

30

444513

SPACER

- flange

2шт.

31

89490

CHAIN (AG)

#50 ROLLER CHAIN - endless

2шт.

32

A31260

BALL BEARING,25 mm ID x 52 mm OD x 15 mm

BEARING - ball

2шт.

33

700115884

BRACKET

MOUNTING - sensor

1шт.

34

700115885

SCREW

- special

1шт.

35

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1/2-13 X 2-1/2 C

1шт.

36

7851108

ROLLER

#80 ROLLER CHAIN - heavy duty

2шт.

37

252403

SPACER

2шт.

38

8050635

BEARING, ROLLER, CYL,25mm ID x 52mm OD x 15mm W

BEARING - ball

2шт.

39

444489

SPACER

- flange

2шт.

40

700708274

JACKSHAFT

2шт.

41

700707823

SEALANT

TUBE OF SILASTIC

1шт.

42

444463

COVER

PLATE - cover

2шт.

43

744169

GASKET

2шт.

44

103-1193

SNAP RING,#93, Ext

Ring, Snap, #93, Ext

2шт.

45

6828529

SPROCKET ASSY.

SPROCKET & BRAKE DISC

2шт.

46

730127

CIRCLIP

RING - retaining

2шт.

47

425-1512

JAM NUT,Jam, 3/4"-10, G5

3/4-16 J

2шт.

48

700706398

SENSOR

PTO SENSOR

1шт.

49

700707096

WIRE HARNESS

WIRE - electric

1шт.

50

7087398

DRIVE SPROCKET

SPROCKET - idler 17T

2шт.

51

95-81100

WASHER,33/64" x 7/8" x .049"

1/2 X 18 MACHINERY BUSHING

4шт.

52

312249

CAM

- inner

2шт.

53

440-1106

SCREW,Cross Pan Hd, #10-24 x 3/8"

1шт.

54

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

55

225-14110

NUT,#10-24

1шт.
