Запчасти Case IH 8850 (05-20) - TRANSMISSION CONTROL ASSEMBLY (06) - POWER TRAIN

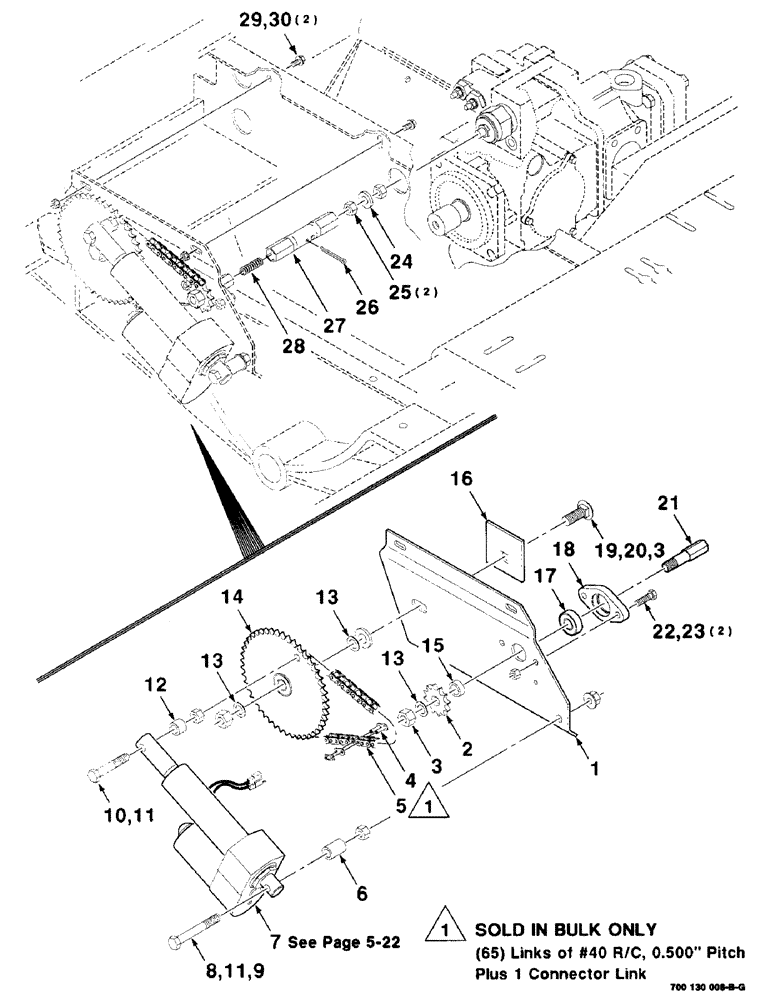

Схема запчастей Case IH 8850 - (05-20) - TRANSMISSION CONTROL ASSEMBLY (06) - POWER TRAIN
9
7
25
24
18
4
3
2
16
1
13
28
26
5
17
23
8
21
13
10
20
6
14
19
30
3
15
11
13
11
22
27
12
29

Артикул

Название

Примечание

Количество

1

700130321

SUPPORT

- actuator

1шт.

2

700130331

SPROCKET ASSY.

SPROCKET - 40A12

1шт.

3

425-1010

NUT,5/8"-11, G5

2шт.

4

241-1314

CHAIN LINK

LINK - connector, #40 R/C

1шт.

5

1790D

CHAIN (AG)

CHAIN - roller, #40 (10 foot bulk)

1шт.

6

298885

SPACER

1шт.

7

700704556

ACTUATOR

- linear

1шт.

8

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

1шт.

9

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

1шт.

10

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 X 2-3/4 C

1шт.

11

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

12

51200249

BUSHING

1шт.

13

52175

BUSHING,25.48mm ID x 38.2mm OD x 3.17mm L

5/8 X 18 GAUGE NRMB

3шт.

14

700130329

SPROCKET ASSY.

SPROCKET ASSEMBLY - 40A46

1шт.

15

700106060

SPACER

1шт.

16

700130334

PLATE

1шт.

17

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

- radial

1шт.

18

700111143

FLANGE

1шт.

19

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

5/8-11 X 1-3/4 RHSNB

1шт.

20

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

1шт.

21

700130332

SHAFT

- hex

1шт.

22

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

23

425-106

NUT,3/8"-16, Cl 5

2шт.

24

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

1шт.

25

425-118

NUT,1/2"-20, G5

1/2-20 H

2шт.

26

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

1шт.

27

700130333

COUPLING

COUPLER

1шт.

28

858753

SPRING

- compression

1шт.

29

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

2шт.

30

231-5146

FLANGE NUT,3/8"-16

2шт.

Выбрано товаров: 30
