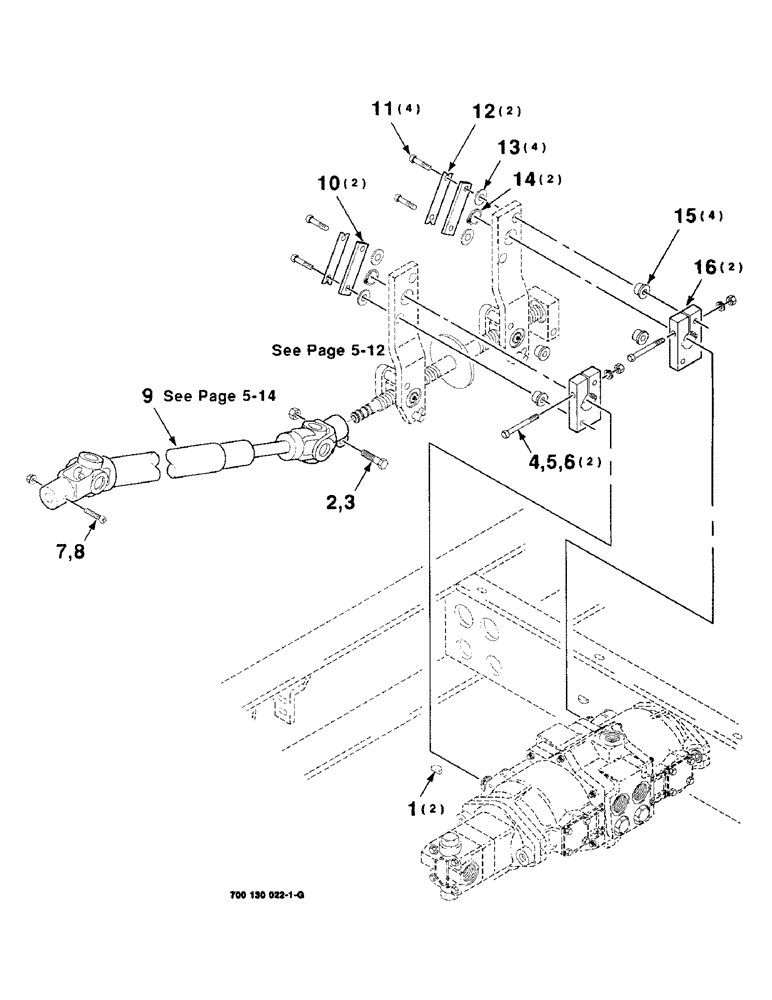

Запчасти Case IH 8850 (05-10) - TRANSMISSION CONTROL ASSEMBLY, PUMP MOUNTING (06) - POWER TRAIN

1

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

2шт.

2

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

1шт.

3

704452

SPRING

7/16-14 HFTLN GR/G

1шт.

4

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

5

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

6

425-106

NUT,3/8"-16, Cl 5

2шт.

7

61-524

HEX SOC SCREW,5/16"-18 x 1 1/2"

5/16-18 X 1-1/2 HSHCS SPL

1шт.

8

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

1шт.

9

700707008

YOKE

ASSEMBLY - steering

1шт.

10

700117550

STRAP

2шт.

11

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

12

700117551

LOCKING TAB

TAB - locking

2шт.

13

700117552

WASHER

4шт.

14

100-1198

SNAP RING,#98, Ext

Ring, Snap, #98, Ext

2шт.

15

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

MOUNT - center bond

4шт.

16

700110910

ARM

- steering

2шт.
