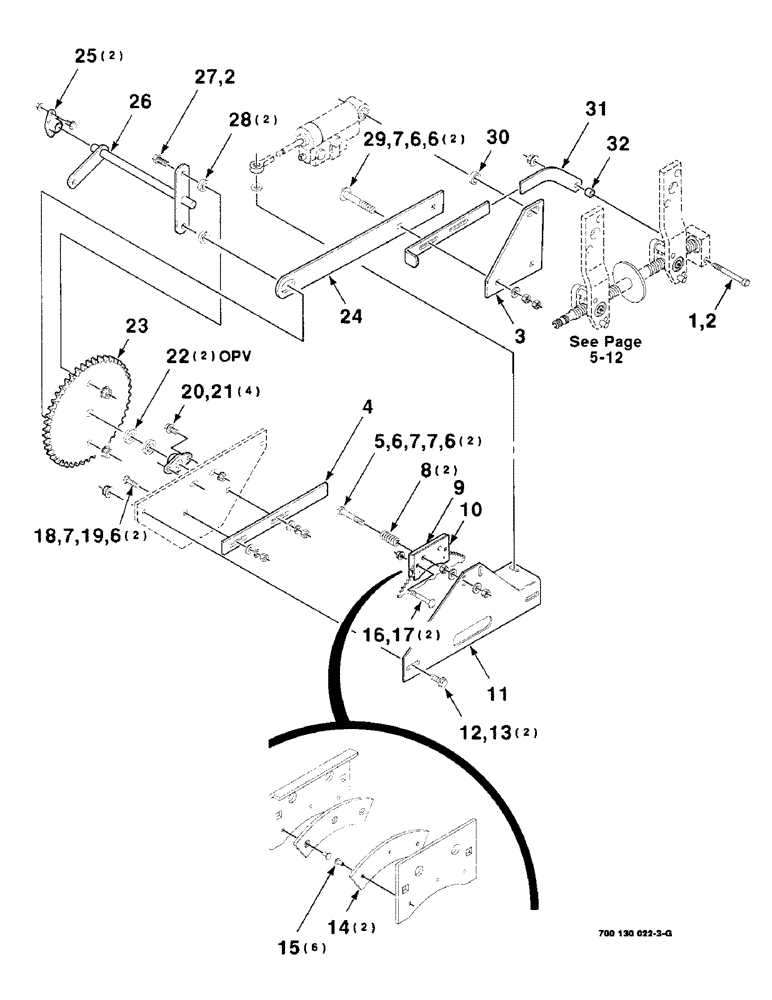

Запчасти Case IH 8850 (05-08) - TRANSMISSION CONTROL ASSEMBLY, GROUND SPEED (06) - POWER TRAIN

1

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2-13 X 4 C

1шт.

2

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

2шт.

3

700121557

LARGE PLATE

PLATE - Servo mtg

1шт.

4

700115627

STOP

1шт.

5

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

6

425-106

NUT,3/8"-16, Cl 5

10шт.

7

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

8шт.

8

7758154

SPRING

- compression

2шт.

9

6553556

BRACKET

BRAKE ASSEMBLY - left (Includes item 14 & 15)

1шт.

10

6553572

BRAKE LINING

BRAKE ASSEMBLY - right (Includes item 14 & 15)

1шт.

11

700121555

ANCHOR

- Servo

1шт.

12

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

13

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

14

700711021

BRAKE LINING

LINGING - brake

2шт.

15

64980

RIVET

6шт.

16

433-440

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 2 1/2", Gr 5

1/4-20 X 2-1/2 RHSNB

2шт.

17

1703354

NUT

1/4-20 HFTLN GR/G

2шт.

18

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

2шт.

19

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

20

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

4шт.

21

231-5146

FLANGE NUT,3/8"-16

4шт.

22

195-2089

WASHER,25/32" x 1 1/2" x .083"

3/4 X 18 GAUGE WRMB

2шт.

23

700115643

SPROCKET

1шт.

24

700121556

ARM

-GROUND SPEED

1шт.

25

A63366

SPHERICAL BEARING,19mm ID

FLANGE - mounting

2шт.

26

700115633

LEVER

WA

1шт.

27

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

28

6582696

SPACER

2шт.

29

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

3/8-16 X 1-3/4 RHSNB

2шт.

30

700122212

SPACER

1шт.

31

700115638

LINK

- speed

1шт.

32

6558217

SPACER

1шт.
